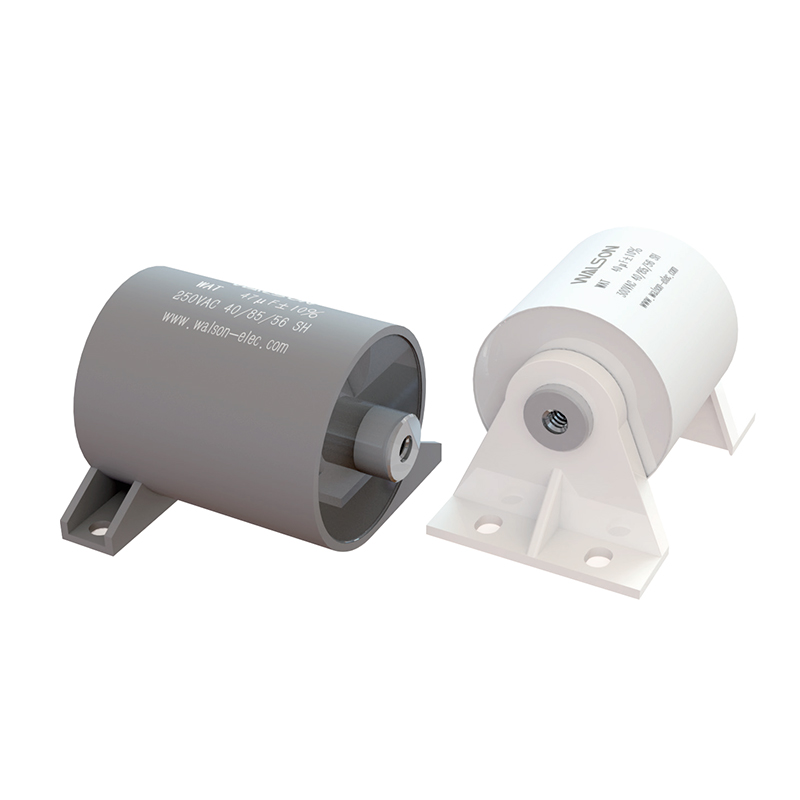

AC film capacitors: preferred components in high-frequency circuits

In today's electronic technology field, with the rapid development of industries such as communications, computers and consumer electronics, the performance requirements for circuit components are getting higher and higher. Especially in high-frequency circuits, the selection of components is directly related to the performance and stability of the entire system. Among the many types of capacitors, AC film capacitors play a pivotal role in high-frequency circuits due to their unique performance advantages.

1. Low impedance: a powerful assistant for high-frequency signal transmission
In high-frequency circuits, the transmission speed and efficiency of signals are crucial. The impedance characteristics of capacitors directly affect the transmission effect of signals in circuits. AC film capacitors exhibit lower impedance at high frequencies, which enables them to transmit high-frequency signals more effectively.

Impedance is a measure of the resistance of capacitors to alternating current, which changes with frequency. At low frequencies, the impedance of capacitors is large, mainly manifested as capacitive reactance; at high frequencies, the impedance gradually decreases, and the resistance of capacitors to signals is weakened. AC film capacitors achieve low impedance characteristics at high frequencies through their special film structure and material selection. This characteristic makes AC film capacitors a powerful assistant for signal transmission in high-frequency circuits, ensuring fast and accurate signal transmission in the circuit.

2. Low loss: the key to improving circuit efficiency
In addition to impedance characteristics, the loss characteristics of capacitors are also one of the important indicators to measure their performance. AC film capacitors have smaller dielectric loss at high frequencies, which means less heat is generated during signal transmission.

Dielectric loss refers to the energy consumed by capacitors due to polarization, leakage conduction and other reasons of dielectric materials under the action of alternating current. The greater the dielectric loss, the more heat the capacitor generates during operation, which not only reduces the efficiency of the circuit, but may also have an adverse effect on the life of the capacitor. AC film capacitors use high-quality film materials as dielectrics, which effectively reduces dielectric loss, so that less heat is generated when working at high frequencies, which helps to improve the overall efficiency of the circuit.

3. Good stability: the cornerstone to ensure stable operation of the circuit
In high-frequency circuits, the stability of components is also crucial. AC film capacitors show good temperature stability and frequency stability at high frequencies, which enables it to ensure stable operation of the circuit.

Temperature stability refers to the ability of a capacitor to maintain relatively stable performance parameters (such as capacitance, impedance, etc.) when it works at different temperatures. Frequency stability refers to the degree of change in performance parameters when the capacitor works at different frequencies. AC film capacitors achieve good stability at high frequencies by optimizing material selection and structural design. This feature enables AC film capacitors to maintain stable performance in various complex environments, ensuring the normal operation of the circuit.
