WAS series Sealed Single/Three Phase AC Filter Capacitor WAS series Sealed Single/Three Phase AC Filter Capacitor
  • WAS series Sealed Single/Three Phase AC Filter Capacitor
  • WAS series Sealed Single/Three Phase AC Filter Capacitor

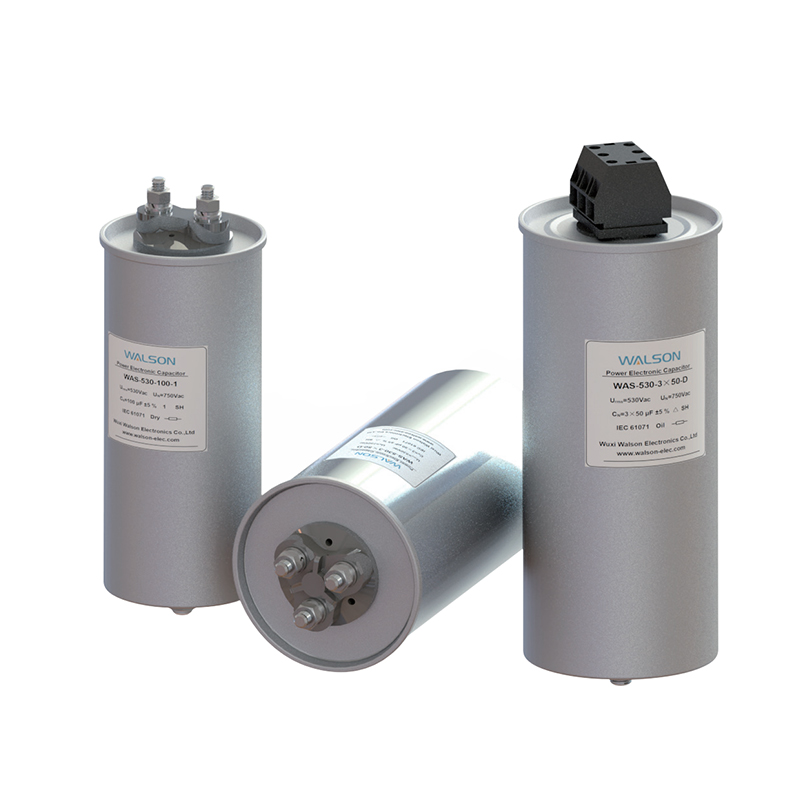

WAS series Sealed Single/Three Phase AC Filter Capacitor

Features:
Metallized polypropylene film with high performance
Cylindrical extruded aluminum case, tightly sealed
Optional dry filled, good anti-vibration performance, and no leakage
Optional oil filled, less weight, and better heat dissipation performance
Low dissipation factor, high pulse current withstand capability
Good self-healing and voltage withstand
Overpressure disconnector, more secure and reliable
Dust cover, or shock hazard-protected terminals
Contact Us PDF Download

Share:

PREV：No previous articleNEXT：WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case)
Typical Applications:
Suitable for AC filter circuits in power electronic and UPS power supply, and can withstand high harmonic current, peak current, and voltage

Specifications

Standard referenced GB/T 17702（IEC61071），Optional GB/T 12747（idt IEC 60831）
Rated RMS Voltage 250Vac～1200Vac
Connection Type Single phase, or three phase with △ Y or Yn connection type
Climatic Category 40/85/56
Rated Frequency 50 or 60 Hz
Overvoltage Umax 1.1 Urms: 8 h/d，1.15 Urms: 30 min/d，1.2 Urms: 5 min/d，
1.3 Urms: 1 min/d，1.5 Urms: 100 ms×1000 times
Capacitance Range 10μF～600μF
Capacitance Tolerance ±5%、±10% or other
Dielectric Dissipation Factor 0.0002
Voltage Test Between Terminals 2.15 Urms  1.5 UN（50/60 Hz），10 s
Voltage test between terminals and case 4 000 Vac（50/60 Hz），10 s
Insulation resistance ≥10000s（20 ℃，500 V，1 min）
Operating Temperature Range -40 ℃～85 ℃
Storage Temperature Range -40 ℃～85 ℃
Maximum Altitude 2 000 m：（No derating for current）
2000 m to 4000 m：creasing factor 3 % per 500 m for current）
Expected Lifetime Dry type：100 000 h @ △C/C≤5 % 0.8 Urms , Θhs≤70 ℃
Oil type：60 000 h @ △C/C≤5 % Urms , Θhs≤70 ℃
Cooling method  Naturally or force-cooled
Safety Self-healing property and overpressure disconnector
Dielectric  Polypropylene film
Case  Extruded cylindrical aluminum can
Terminals Bolt：6N·m for M8，8N·m for M10（Dry type）；4N·m for M8，6N·m for M10（Oil type）
Clamp terminals：2N·m for M5，3N·m for M6
Impregnation Polyurethane or oil

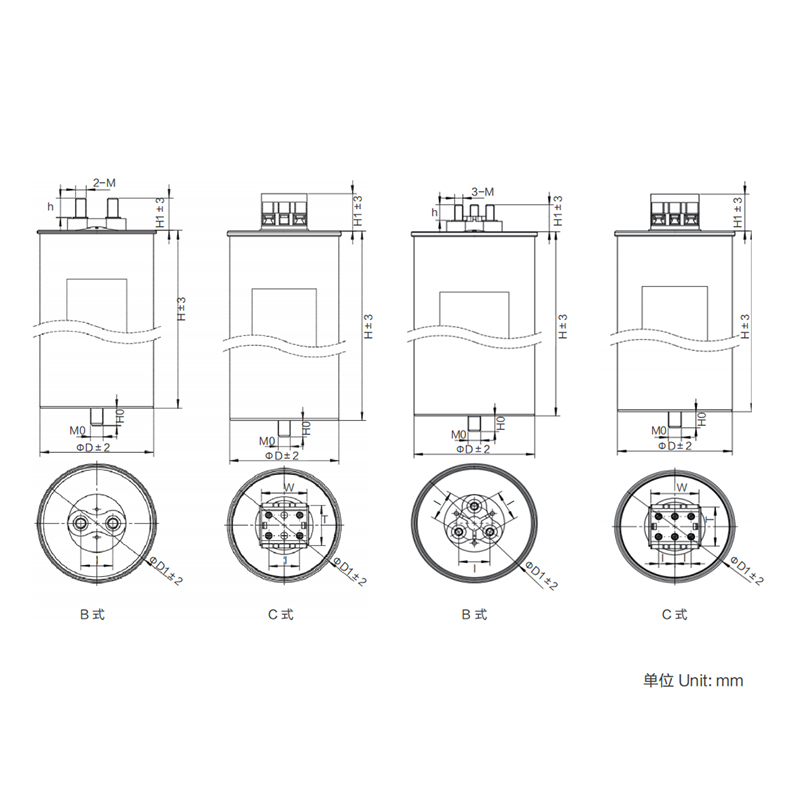

Dimensions(mm)

CN
(uF)		 D
(mm)		 H
(mm)		 Rs
(mΩ)		 Ls
(nH)
Rth
(K/W)
 ln lmax Î
(kA)
Îs
(kA)
 M
(kg)
Urms=230Vac Un=325Vac
Us=700V		 3×84 76 200 3×1.5 100 4.5 11 3×34 1.6 4.8 1.1
3×105 76 230 3×1.6 120 4 13 3×36 1.5 4.5 1.2
3×160 86 230 3×1.2 120 3.5 20 3×43 2.3 6.9 1.6
3×250 116 200 3×0.8 110 3.1 31 3×53 3 9 2.4
3×330 116 230 3×0.9 130 2.7 41 3×54 4.8 14.4 2.5
Urms=440Vac  Un=625Vac
Us=1300V		 3×13 76 140 3×1.8 100 6.2 2 3×22 0.8 2.4 0.9
3×16.5 76 140 3×1.5 100 5.6 2 3×25 1.1 3.3 0.9
3×26.5 76 200 3×2.3 100 4.4 4 3×25 0.8 2.4 1.2
3×33 76 200 3×1.9 100 4 5 3×28 1 3 1.2
3×50 86 200 3×1.4 110 3.4 7 3×34 1.5 4.5 1.4
3×66 86 230 3×1.5 120 2.9 9 3×36 1.4 4.2 1.7
3×83 116 200 3×1.1 110 3.1 11 3×40 2.4 7.2 2.4
3×100 116 200 3×1.0 110 2.8 14 3×43 2.9 8.7 2.4
3×133 136 200 3×0.9 120 2.5 18 3×46 3.9 11.7 3.3
3×154 136 200 3×0.8 120 2.3 21 3×48 4 12 3.3
3×170 136 230 3×0.9 130 2.2 24 3×45 4.5 13.5 3.8
Urms=540Vac Un=760Vac  Us=1600V 3×19 76 170 3×1.0 110 5.1 3 3×32 1 3 1
3×23 76 170 3×1.0 110 5 4 3×33 1.2 3.6 1.2
3×39 86 200 3×0.9 110 4 7 3×39 1.4 4.2 1.7
3×48 86 230 3×1.0 120 3.6 8 3×40 1.3 3.9 1.9
3×96 116 230 3×0.8 130 3 16 3×45 2.3 6.9 2.8
Urms=690Vac Un=980Vac Us=2000V 3×33.5 116 170 3×0.8 110 3.5 7 3×42 1.6 4.8 2.2
3×38 116 200 3×0.8 110 3.5 8 3×40 1.3 3.9 2.4
3×75 136 230 3×0.8 130 2.6 16 3×45 1.9 5.7 3.7
Urms=850Vac  Un=1200Vac Us=2550V 8 76 170 3×1.3 110 5.6 2 3×24 0.6 1.8 1
10 86 170 3×1.1 110 5.2 3 3×27 0.7 2.1 1
12 86 170 3×1.0 110 4.8 3 3×20 0.9 2.7 1
17 106 170 3×0.9 110 4.3 5 3×34 1.1 3.3 1.7
23 86 230 3×1.1 120 3.4 6 3×37 0.9 2.7 1.6
28 106 230 3×1.0 130 3.3 7 3×38 1 3 2.2
33 106 230 3×1.0 130 3 9 3×41 1.2 3.6 2.3
38 116 230 3×0.9 130 2.9 10 3×42 1.4 4.2 2.8
49 136 230 3×0.9 130 2.7 13 3×43 1.9 5.7 3.7
55.8 136 230 3×0.8 130 2.5 15 3×45 2.2 6.6 3.8
