CH11 Inductive Mixed with Film and Foil Capacitor
Features:
Better electric property, high reliability
Epoxy resin coating
Share:
Typical Applications:
Especially suitable for energy-saving lamps with high Voltage and frequency and temperature
Specifications
| Ambient Temperature | -55℃~+105℃ |
| Capacitance Tolerance | J:±5%；K:±10% |
| Voltage Proof | 2.5UR |
| Dissipation Factor | ≤0.005 (20℃, 1kHz) |
| Insulation Resistance | ≥5000MΩ (20℃, 100V, 1min) |

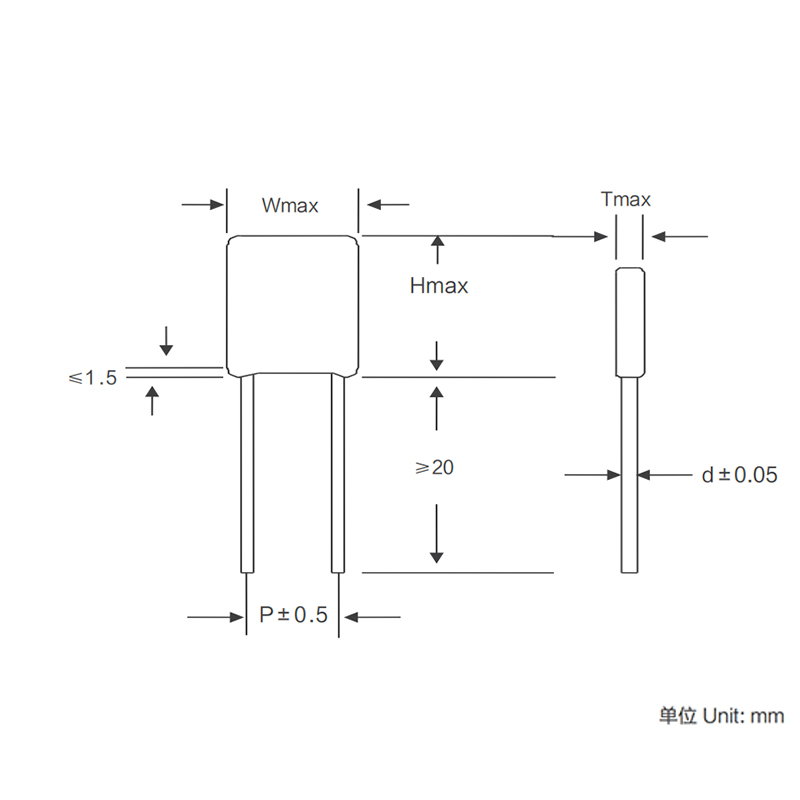

Dimensions(mm)
| CAP. | 100V | 400V | 630V | |||||||||
| W | H | T | P | W | H | T | P | W | H | T | P | |
| 822 | 7.5 | 13 | 4.5 | 6 | 10.5 | 14 | 5 | 7 | 10.5 | 14 | 5.5 | 7 |
| 223 | 8 | 13 | 5.5 | 6 | 10 | 15 | 6.5 | 6.5 | 11 | 15 | 6.5 | 7.5 |
| 473 | 9 | 15 | 6.5 | 7.5 | 13 | 16 | 7.5 | 9 | 14.5 | 16 | 8.5 | 10 |
| 683 | 9.5 | 15 | 7 | 7.5 | 13 | 17 | 7 | 9.5 | 15.5 | 17 | 9.5 | 10 |
| CAP. | 1000V | 1200V | 1500V | |||||||||
| W | H | T | P | W | H | T | P | W | H | T | P | |
| 511 | 6.5 | 12 | 4 | 4.5 | 7.5 | 12 | 4.5 | 5 | 7 | 12 | 4.5 | 5 |
| 681 | 6.5 | 12 | 4.2 | 4.5 | 7.5 | 12 | 5 | 5 | 7 | 12 | 5 | 5 |
| 821 | 7 | 12 | 4.5 | 4.5 | 7.5 | 12 | 5 | 5 | 7.5 | 12 | 5 | 5 |
| 102 | 7.5 | 12 | 4.5 | 5 | 7.5 | 13 | 4.5 | 4 | 7.5 | 13 | 5 | 5 |
| 122 | 7.5 | 12 | 4.5 | 5 | 7.5 | 13 | 4.5 | 4 | 7.5 | 13 | 5 | 5 |
| 152 | 7.5 | 12 | 4.5 | 5 | 7.5 | 13 | 4.5 | 5 | 7.5 | 13 | 5 | 5 |
| 182 | 7.5 | 14 | 4.5 | 5 | 8 | 14 | 5 | 5 | 8 | 14 | 5.5 | 5 |
| 222 | 7.5 | 14 | 5 | 5 | 8 | 14 | 5 | 5 | 8 | 14 | 5.5 | 5 |
| 272 | 7.5 | 14.5 | 5.5 | 5 | 8.5 | 14.5 | 5.5 | 5 | 8.5 | 14.5 | 6 | 5 |
| 332 | 8 | 14.5 | 5.5 | 5 | 9.5 | 14.5 | 5.5 | 5 | 9.5 | 14.5 | 6 | 5 |
| 392 | 9.5 | 14.5 | 5.5 | 6.5 | 10 | 14.5 | 5.5 | 5 | 10 | 15 | 6 | 7.5 |
| 432 | 9.5 | 14.5 | 6 | 6.5 | 10.5 | 15 | 6.5 | 6.5 | 10.5 | 15 | 6 | 7.5 |
| 472 | 9.5 | 14.5 | 6.5 | 6.5 | 10.5 | 15 | 6 | 7.5 | 10.5 | 15 | 6 | 7.5 |
| 562 | 9.5 | 14.5 | 7 | 6.5 | 11 | 15 | 7 | 7.5 | 11 | 15 | 7 | 7.5 |
| 682 | 10 | 14.5 | 7 | 6.5 | 11.5 | 15.5 | 7.5 | 7.5 | 11.5 | 15.5 | 7.5 | 7.5 |
| 752 | 10.5 | 14.5 | 7.5 | 6.5 | 11.5 | 15.5 | 7.5 | 7.5 | 11.5 | 15.5 | 7.5 | 7.5 |
