CBB11 inductive metallized foil polypropylene film capacitor
Features:
Better electric property, high reliability
Epoxy resin coating, constructed with polypropylene
Share:
Typical Applications:
Especially suitable for energy-saving lamps with high frequency, power and high voltage proof
Specifications
| Ambient Temperature | -40℃~+105℃ |
| Capacitance Tolerance | J:±5%；K:±10% |
| Voltage Proof | 2.5UR |
| Dissipation Factor | ≤0.001 (20℃, 1kHz) |
| Insulation Resistance | ≥5000MΩ (20℃, 100V, 1min) |

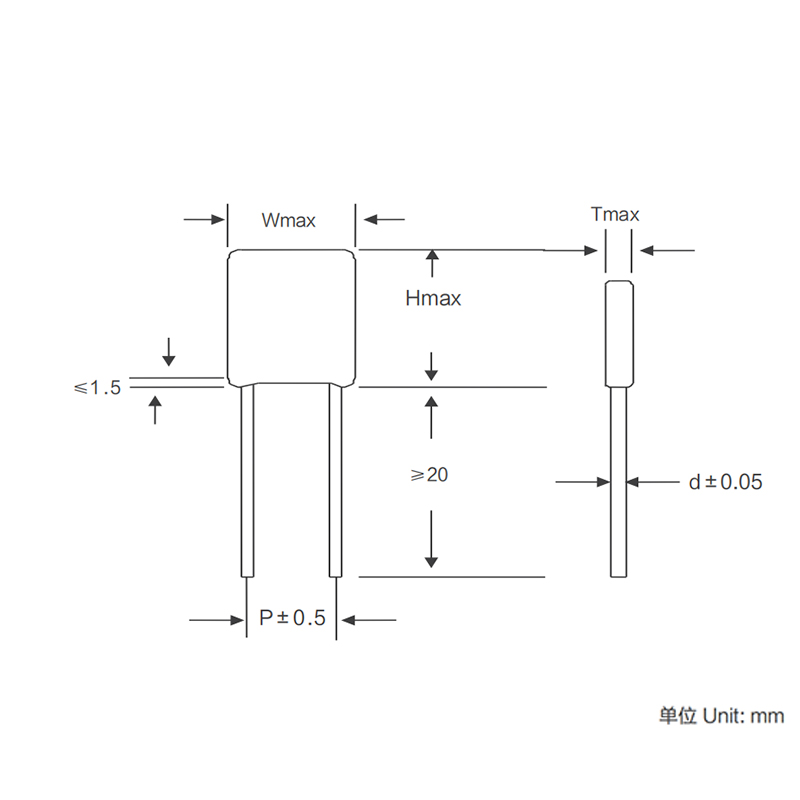

Dimensions(mm)
| CAP. | 100V | 630V | 1000V | |||||||||
| W | H | T | P | W | H | T | P | W | H | T | P | |
| 682 | 7 | 11 | 5 | 5 | 9 | 13.5 | 6 | 6.5 | 9 | 13.5 | 6 | 6.5 |
| 822 | 7.2 | 11 | 5.1 | 5 | 9.5 | 13.5 | 6.5 | 6.5 | 9.5 | 13.5 | 6.5 | 6.5 |
| 103 | 7.5 | 12 | 5.5 | 5 | 8.5 | 14.5 | 7.5 | 5 | 8.5 | 14.5 | 7.5 | 5 |
| 103 | 7.8 | 12 | 5 | 6 | 9.5 | 14.5 | 6.5 | 6.5 | 9.5 | 14.5 | 6.5 | 6.5 |
| 123 | 8 | 12 | 5 | 6 | 10 | 14.5 | 7 | 6.5 | 10 | 14.5 | 7 | 6.5 |
| CAP. | 1200V | 1500V | 1600V | |||||||||
| W | H | T | P | W | H | T | P | W | H | T | P | |
| 471 | 4 | 11 | 5 | 4.5 | 7 | 12 | 5 | 4.5 | 7 | 12 | 5 | 4.5 |
| 501 | 7 | 11.5 | 5 | 4.5 | 7 | 12 | 5 | 5 | 7 | 12 | 5 | 5 |
| 751 | 7 | 11.5 | 5 | 4.5 | 7 | 12 | 5 | 5 | 7 | 12 | 5 | 5 |
| 681 | 7 | 11.5 | 5 | 5 | 7.5 | 12 | 5.5 | 5 | 7.5 | 12 | 5.5 | 5 |
| 102 | 7.5 | 13 | 4.5 | 4.5 | 7.5 | 13 | 4.5 | 4.5 | 7.5 | 13 | 4.5 | 4.5 |
| 102 | 7.5 | 12 | 5 | 5 | 7.5 | 13 | 5 | 5 | 7.5 | 13 | 5 | 5 |
| 152 | 7.5 | 13 | 4.5 | 5 | 8 | 13 | 5 | 5 | 8 | 13 | 5 | 5 |
| 222 | 8 | 13.5 | 5 | 5 | 9 | 15 | 5.5 | 5 | 9 | 15 | 5.5 | 5 |
| 272 | 8.5 | 13.5 | 5 | 5 | 9 | 15 | 5.5 | 5 | 9.5 | 14 | 6 | 5 |
| 302 | 9 | 13 | 5 | 5.5 | 9.5 | 14 | 5.5 | 5.5 | 9.5 | 14 | 5.5 | 5.5 |
| 332 | 9 | 13 | 5 | 5 | 9.5 | 15 | 5.5 | 5.5 | 10 | 14 | 6.5 | 5 |
| 392 | 9 | 14 | 5.5 | 5 | 9 | 15 | 6 | 5.5 | 9 | 15 | 6 | 5.5 |
| 402 | 9 | 14.5 | 6 | 5 | 10 | 15.5 | 6 | 5 | 10 | 15.5 | 6 | 5 |
| 422 | 9 | 14.5 | 6 | 5 | 10.5 | 15.5 | 6.5 | 5.5 | 10.5 | 15.5 | 6.5 | 5.5 |
| 472 | 9 | 14.5 | 6 | 5 | 10.5 | 16 | 6.5 | 6.5 | 10.5 | 14.5 | 7 | 5 |
| 562 | 9.5 | 15.5 | 6 | 6.5 | 11.5 | 16 | 7.5 | 6.5 | 11.5 | 16 | 7.5 | 6.5 |
| 682 | 11 | 15.5 | 6.5 | 6.5 | 11.5 | 16 | 7 | 7 | 11.5 | 16 | 7 | 7 |
| 822 | 11 | 15.5 | 6.5 | 6.5 | 12 | 16 | 7.5 | 7 | 12 | 16 | 7.5 | 7 |
