CBB13 Polypopylene Film/Foil Capacitor (Non-Inductive)

Features：

Film/foil, non-inductive wound type, dipped

Outstanding frequency and temperature characteristics

Very small loss even at high frequency

Flame retardant epoxy resin powder coating (UL94/V-0)

Specifications

Reference Standard	GB/T 10188（IEC 60384-13）
Climatic Category	40/105/21
Rated Temperature	105℃
Operating Temperature Range	-40℃~105℃
Rated Voltage	100V，160V，200V，250V，400V，630V，800V
Capacitance Range	0.0010μF ~ 0.10μF
Capacitance Tolerance	±2%（G），±5%（J），±10%（K）
Voltage Proof	2.0U_R（5s）
Dissipation Factor	≤10×10-4（1kHz，20℃）
Insulation Resistance	R≥50000MΩ，C_N≤0.1μF RC_N≥5000s，C_N＞0.1μF （20℃，100V，1min）

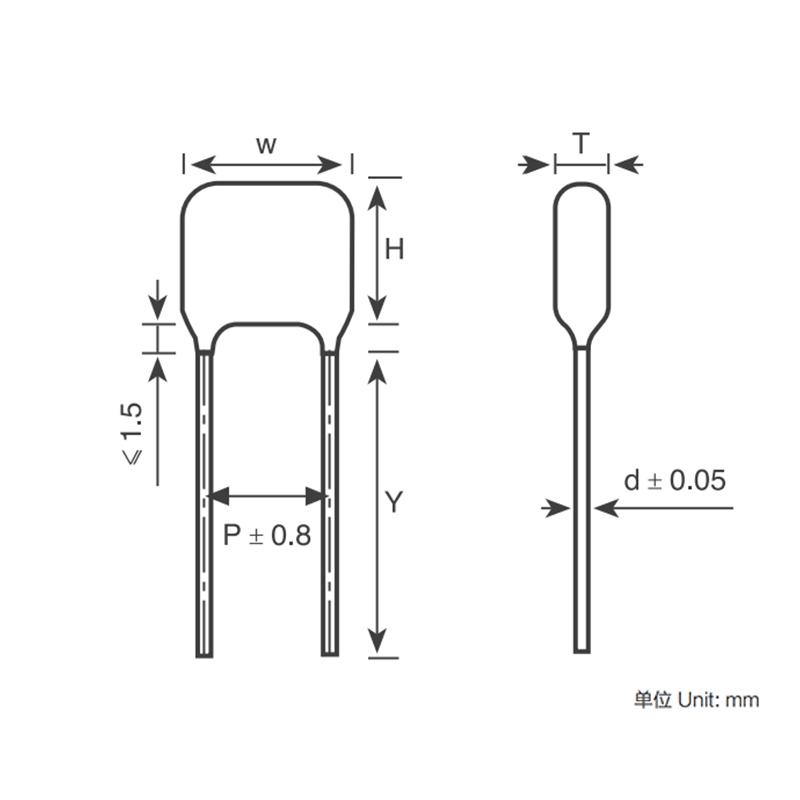

Dimensions(mm)

	CN (μF)	W	H	T	P	d
	CN (μF)	W	H	T	P	d
100Vdc	0.001	9	8.5	4.5	6.5	0.6
	0.0012	9	9	5	6.5	0.6
	0.0015	9	9.5	5.5	6.5	0.6
	0.0016	9	9.5	5.5	6.5	0.6
	0.0018	9	9.5	5.5	6.5	0.6
	0.002	9	8.5	4.5	6.5	0.6
	0.0022	9	8.5	4.5	6.5	0.6
	0.0024	9	8.5	5	6.5	0.6
	0.0027	9	9	5	6.5	0.6
	0.003	9	9	5	6.5	0.6
	0.0033	9	9	5.5	6.5	0.6
	0.0036	9	9.5	5.5	6.5	0.6
	0.0039	9	9.5	5.5	6.5	0.6
	0.0043	9	9	5	6.5	0.6
	0.0047	9	9	5	6.5	0.6
	0.0051	9	9.5	5.5	6.5	0.6
	0.0056	9	9.5	5.5	6.5	0.6
	0.0062	9	9.5	6	6.5	0.6
	0.0068	9	10	6	6.5	0.6
	0.0075	10	9.5	6	7.5	0.6
	0.0082	10	10	6	7.5	0.6
	0.0091	10	10	6	7.5	0.6
	0.01	10	10.5	6.5	7.5	0.6
	0.012	10	11	7	7.5	0.6
	0.015	12	10.5	6.5	8.5	0.6
	0.016	12	10.5	6.5	8.5	0.6
	0.018	12	10.5	7	8.5	0.6
	0.02	12	11	7	8.5	0.6
	0.022	12	11	7.5	8.5	0.6
	0.024	12	11.5	7.5	8.5	0.6
	0.027	12	12	8	8.5	0.6
	0.03	13.5	11.5	6.5	10	0.6
	0.033	13.5	11.5	7	10	0.6
	0.036	13.5	12	7	10	0.6
	0.039	13.5	12	7.5	10	0.6
	0.043	13.5	12.5	7.5	10	0.6
	0.047	13.5	12.5	8	10	0.6
	0.051	13.5	13	8	10	0.6
	0.056	13.5	13	8.5	10	0.6
	0.062	17	12.5	7.5	13	0.6
	0.068	17	13	7.5	13	0.6
	0.075	17	13	8	13	0.6
	0.082	17	13.5	8	13	0.6
	0.091	17	14	8.5	13	0.6
	0.1	17	14	8.5	13	0.6
160Vdc	0.001	10	9	5	6.5	0.6
	0.0012	10	9.5	5.5	6.5	0.6
	0.0015	10	9.5	5.5	6.5	0.6
	0.0016	10	9.5	5.5	6.5	0.6
	0.0018	10	10	6	6.5	0.6
	0.002	10	9	5.5	6.5	0.6
	0.0022	10	9.5	5.5	6.5	0.6
	0.0024	10	9.5	5.5	6.5	0.6
	0.0027	10	9.5	5.5	6.5	0.6
	0.003	10	10	6	6.5	0.6
	0.0033	10	10	6	6.5	0.6
	0.0036	10	10	6	6.5	0.6
	0.0039	10	10	6.5	6.5	0.6
	0.0043	10	10.5	6.5	6.5	0.6
	0.0047	10	10.5	6.5	6.5	0.6
	0.0051	12	10	5.5	8.5	0.6
	0.0056	12	10.5	5.5	8.5	0.6
	0.0062	12	10.5	6	8.5	0.6
	0.0068	12	10.5	6	8.5	0.6
	0.0075	12	11	6	8.5	0.6
	0.0082	12	11	6.5	8.5	0.6
	0.0091	12	11	6.5	8.5	0.6
	0.01	12	11.5	6.5	8.5	0.6
	0.012	12	12	7	8.5	0.6
	0.015	12	12.5	7.5	8.5	0.6
	0.016	12	12.5	8	8.5	0.6
	0.018	12	13	8	8.5	0.6
	0.02	15	12	7	11	0.6
	0.022	15	12.5	7	11	0.6
	0.024	15	12.5	7	11	0.6
	0.027	15	12.5	7.5	11	0.6
	0.03	17	12	7	13	0.6
	0.033	17	12.5	7.5	13	0.6
	0.036	17	12.5	7.5	13	0.6
	0.039	17	13	7.5	13	0.6
	0.043	17	13	8	13	0.6
	0.047	17	13.5	8.5	13	0.6
	0.051	17	14	8.5	13	0.6
	0.056	17	14	9	13	0.6
	0.062	17	14.5	9	13	0.6
	0.068	17	15	9.5	13	0.6
	0.075	22.5	13.5	8	19	0.8
	0.082	22.5	13.5	8.5	19	0.8
	0.091	22.5	14	9	19	0.8
	0.1	22.5	14.5	9	19	0.8
160Vdc	0.001	10	9	5	6.5	0.6
	0.0012	10	9.5	5.5	6.5	0.6
	0.0015	10	9.5	5.5	6.5	0.6
	0.0016	10	9.5	5.5	6.5	0.6
	0.0018	10	10	6	6.5	0.6
	0.002	10	9	5.5	6.5	0.6
	0.0022	10	9.5	5.5	6.5	0.6
	0.0024	10	9.5	5.5	6.5	0.6
	0.0027	10	9.5	5.5	6.5	0.6
	0.003	10	10	6	6.5	0.6
	0.0033	10	10	6	6.5	0.6
	0.0036	10	10	6	6.5	0.6
	0.0039	10	10	6.5	6.5	0.6
	0.0043	10	10.5	6.5	6.5	0.6
	0.0047	10	10.5	6.5	6.5	0.6
	0.0051	12	10	5.5	8.5	0.6
	0.0056	12	10.5	5.5	8.5	0.6
	0.0062	12	10.5	6	8.5	0.6
	0.0068	12	10.5	6	8.5	0.6
	0.0075	12	11	6	8.5	0.6
	0.0082	12	11	6.5	8.5	0.6
	0.0091	12	11	6.5	8.5	0.6
	0.01	12	11.5	6.5	8.5	0.6
	0.012	12	12	7	8.5	0.6
	0.015	12	12.5	7.5	8.5	0.6
	0.016	12	12.5	8	8.5	0.6
	0.018	12	13	8	8.5	0.6
	0.02	15	12	7	11	0.6
	0.022	15	12.5	7	11	0.6
	0.024	15	12.5	7	11	0.6
	0.027	15	12.5	7.5	11	0.6
	0.03	17	12	7	13	0.6
	0.033	17	12.5	7.5	13	0.6
	0.036	17	12.5	7.5	13	0.6
	0.039	17	13	7.5	13	0.6
	0.043	17	13	8	13	0.6
	0.047	17	13.5	8.5	13	0.6
	0.051	17	14	8.5	13	0.6
	0.056	17	14	9	13	0.6
	0.062	17	14.5	9	13	0.6
	0.068	17	15	9.5	13	0.6
	0.075	22.5	13.5	8	19	0.8
	0.082	22.5	13.5	8.5	19	0.8
	0.091	22.5	14	9	19	0.8
	0.1	22.5	14.5	9	19	0.8
250Vdc	0.001	12	9.5	5.5	8.5	0.6
	0.0012	12	10	6	8.5	0.6
	0.0015	12	10	6.5	8.5	0.6
	0.0016	12	10.5	6.5	8.5	0.6
	0.0018	12	10.5	6.5	8.5	0.6
	0.002	12	9.5	5.5	8.5	0.6
	0.0022	12	9.5	5.5	8.5	0.6
	0.0024	12	9.5	5.5	8.5	0.6
	0.0027	12	10	6	8.5	0.6
	0.003	12	10	6	8.5	0.6
	0.0033	12	10	6	8.5	0.6
	0.0036	12	10.5	6.5	8.5	0.6
	0.0039	12	10.5	6.5	8.5	0.6
	0.0043	12	10	6	8.5	0.6
	0.0047	12	10	6	8.5	0.6
250Vdc	0.0051	12	10.5	6.5	8.5	0.6
	0.0056	12	10.5	6.5	8.5	0.6
	0.0062	12	10.5	7	8.5	0.6
	0.0068	12	11	7	8.5	0.6
	0.0075	13.5	10.5	6.5	10	0.6
	0.0082	13.5	10.5	6.5	10	0.6
	0.0091	13.5	10.5	6.5	10	0.6
	0.01	13.5	11	7	10	0.6
	0.012	18	11	6	14	0.6
	0.015	18	11.5	6	14	0.6
	0.016	18	11.5	6.5	14	0.6
	0.018	18	11.5	6.5	14	0.6
	0.02	18	12	6.5	14	0.6
	0.022	18	12	7	14	0.6
	0.024	18	13.5	6.5	14	0.6
250Vdc	0.027	18	13.5	7	14	0.6
	0.03	18	14	7	14	0.6
	0.033	18	14	7.5	14	0.6
	0.036	18	14.5	7.5	14	0.6
	0.039	18	14.5	8	14	0.6
	0.043	18	15	8	14	0.6
	0.047	18	15.5	8.5	14	0.6
	0.051	22.5	15.5	7.5	19	0.8
	0.056	22.5	16	8	19	0.8
	0.062	22.5	16	8.5	19	0.8
	0.068	22.5	16.5	8.5	19	0.8
	0.075	22.5	17	9	19	0.8
	0.082	22.5	17		19	0.8
	0.091	22.5	17.5	9.5	19	0.8
	0.1	22.5	18	10	19	0.8
400Vdc	0.001	13.5	10	6	10	0.6
	0.0012	13.5	10.5	6.5	10	0.6
	0.0015	13.5	10.5	6.5	10	0.6
	0.0016	13.5	10	6	10	0.6
	0.0018	13.5	10	6.5	10	0.6
	0.002	13.5	9	5.5	10	0.6
	0.0022	13.5	9.5	5.5	10	0.6
	0.0024	13.5	9.5	5.5	10	0.6
	0.0027	13.5	9.5	5.5	10	0.6
	0.003	13.5	9.5	6	10	0.6
	0.0033	13.5	10	6	10	0.6
	0.0036	15	11	5.5	11	0.6
	0.0039	15	11	6	11	0.6
	0.0043	15	11	6	11	0.6
	0.0047	15	11.5	6	11	0.6
	0.0051	15	11.5	6.5	11	0.6
	0.0056	15	11.5	6.5	11	0.6
	0.0062	15	12	6.5	11	0.6
	0.0068	15	12	7	11	0.6
	0.0075	15	12	7	11	0.6
	0.0082	15	12.5	7	11	0.6
	0.0091	15	12.5	7	11	0.6
	0.01	15	13	8	11	0.6
630Vdc	0.001	14.5	10	6	11	0.6
	0.0012	14.5	10.5	6.5	11	0.6
	0.0015	14.5	10.5	6.5	11	0.6
	0.0016	14.5	10.5	6	11	0.6
	0.0018	14.5	11	6	11	0.6
	0.002	14.5	11	6.5	11	0.6
	0.0022	14.5	11	6.5	11	0.6
	0.0024	14.5	11.5	6.5	11	0.6
	0.0027	14.5	11.5	7	11	0.6
	0.003	14.5	11.5	7	11	0.6
	0.0033	14.5	12	7	11	0.6
	0.0036	14.5	12	7.5	11	0.6
	0.0039	14.5	12.5	7.5	11	0.6
	0.0043	14.5	12.5	8	11	0.6
	0.0047	14.5	13	8	11	0.6
	0.0051	18	11.5	6.5	14	0.6
	0.0056	18	12	6.5	14	0.6
	0.0062	18	12	7	14	0.6
	0.0068	18	12.5	7	14	0.6
	0.0075	18	12.5	7.5	14	0.6
	0.0082	18	13	7.5	14	0.6
	0.0091	18	14	7.5	14	0.6
	0.01	18	14.5	7.5	14	0.6
800Vdc	0.001	14.5	10	6	11	0.6
	0.0012	14.5	10	6	11	0.6
	0.0015	14.5	10.5	6.5	11	0.6
	0.0016	14.5	10.5	6.5	11	0.6
	0.0018	14.5	11	7	11	0.6
	0.002	16	11	6.5	12.5	0.6
	0.0022	16	11.5	6.5	12.5	0.6
	0.0024	16	11.5	6.5	12.5	0.6
	0.0027	16	11.5	7	12.5	0.6
	0.003	16	12	7	12.5	0.6
	0.0033	16	12	7.5	12.5	0.6
	0.0036	16	12.5	7.5	12.5	0.6
	0.0039	16	12.5	8	12.5	0.6
	0.0043	18	12.5	7.5	14	0.6
	0.0047	18	13	7.5	14	0.6
	0.0051	18	13	8	14	0.6
	0.0056	18	13.5	8	15	0.8
	0.0062	18	14.5	8	15	0.8
	0.0068	18	15	8	15	0.8
	0.0075	18	15.5	8.5	15	0.8
	0.0082	18	15 5	8.5	15	0.8
	0.0091	22.5	14.5	8	19	0.8
	0.01	22.5	15	8	19	0.8
