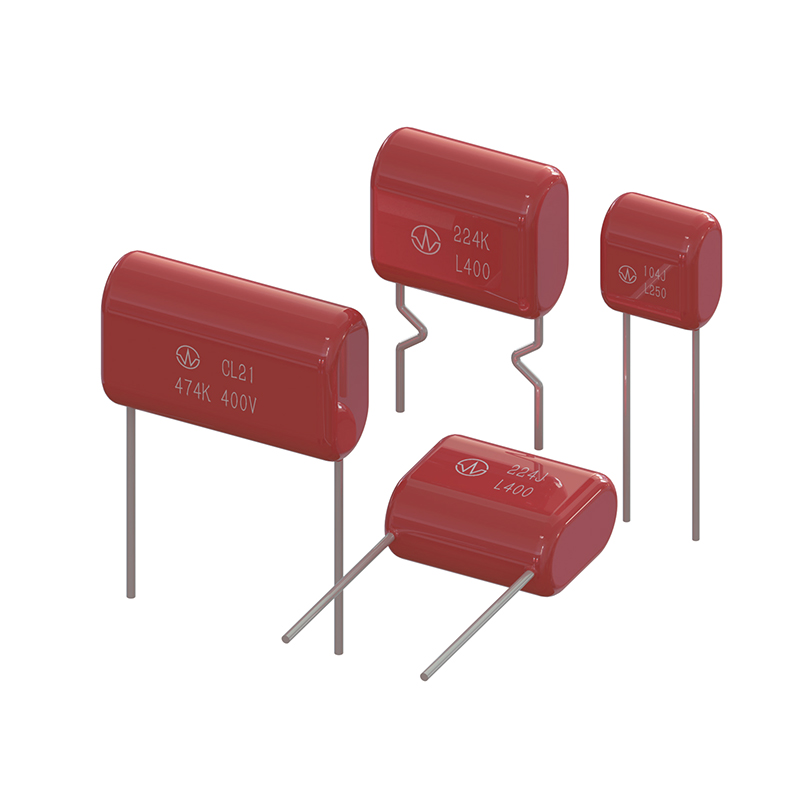

CL21 series Metallized Polyester Film Capacitor

Features：

Metalized polyester film, non-inductive wound construction

Wide capacitance range, small size, and lightweight

Good self-healing property and long service life

Flame retardant epoxy resin coated

Specifications

Reference Standard	GB/T7332(IEC60384-2)
Climatic Category	55/105/21
Rated Temperature	85℃
Operating Temperature Range	-55℃-105℃
Rated Voltage	50/63V,100V,250V,400V,630V,1000V,1250V
Capacitance Range	0.010μF~10.0μF
Capacitance Tolerance	±5%(J),±10%(K)
Voltage Proof	1.6U_R(5s)
Dissipation Factor	≤1.0%(20℃,1kHz)
Insulation Resistance	U_R≤100v	R≥3750MQ,C_N≤0.33μF RC_N≥1250s,C_N>0.33μF (20℃,50V,1min)
Insulation Resistance	U_R>100V	R≥7500MΩ,C_N≤0.33μF RC_N≥2500s,C_N>0.33μF (20℃,100V,1min)
Maximum Pulse Rise Time (dV/dt): If the working voltage (U) is lower than the rated voltage (U_R), the capacitor can be worked at a higher dV/dt. In this case, the maximum allowed dV/dt is obtained by multiplying the right value with U_R_/U.	U_R(V)	dVdt(V/μs)
	U_R(V)	P=7.5	P=10.0	P=15.0	P=22.5	P=27.5
	50/63	7.5	6	3	2	-
	100	15	9	5	3	-
	250	30	20	12	8	5
	400	40	30	20	10	7
	630	-	40	25	12	10
	1000	70	60	30	15	12
	1250	80	70	40	18	14

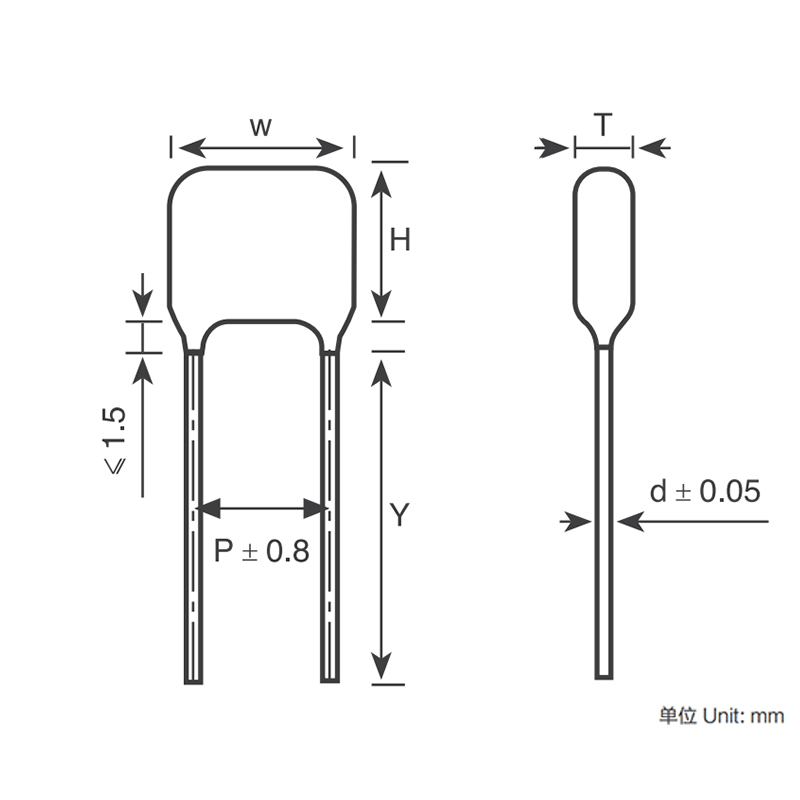

Dimensions(mm)

	CN (uF)	W	H	T	P	d
	CN (uF)	W	H	T	P	d
50Vdc(30Vac)/63Vdc(40Vac)	0.39	9.8	7	4	7.5	0.6
	0.47	9.8	7.7	4.1	7.5	0.6
	0.56	9.8	8	4.4	7.5	0.6
	0.68	9.8	8.3	4.7	7.5	6
	0.82	9.8	8.7	5.1	7.5	0.6
	1	12.3	8.4	4.8	10	0.6
	1.2	12.3	8.8	5.1	10	0.6
	1.5	12.3	9.3	5.6	10	0.6
	1.8	12.3	9.7	6.1	10	0.6
	2.2	17.5	9.6	5.9	15	0.6
	2.7	17.5	10	6.4	15	0.6
	3.3	17.5	10.6	6.9	15	0.6
	3.9	17.5	11.6	7.5	15	0.8
	4.7	25.2	11.9	6.2	22.5	0.8
	5.6	25.2	12.4	6.7	22.5	0.8
	6.8	25.2	13	7.3	22.5	0.8
	8.2	25.2	13.6	8.4	22.5	0.8
	10	25.2	14.4	9.2	22.5	0.8
100Vdc(63Vac)	0.27	9.8	7	4	7.5	0.6
	0.33	9.8	7.7	4.1	7.5	0.6
	0.39	9.8	8	4.3	7.5	0.6
	0.47	9.8	8.3	4.6	7.5	0.6
	0.56	9.8	8.6	5	7.5	0.6
	0.68	9.8	9	5.4	7.5	0.6
	0.82	12.3	8.7	5	10	0.6
	1	12.3	9.1	5.5	10	0.6
	1.2	12.3	9.5	5.9	10	0.6
	1.5	12.3	10.1	6.5	10	0.6
	1.8	17.5	11.4	5.7	15	0.6
	2.2	17.5	11.9	6.1	15	0.6
	2.7	17.5	12.4	6.7	15	0.6
	3.3	17.5	14	6.8	15	0.6
	3.9	17.5	14.6	7.3	15	0.8
	4.7	25.2	13.9	6.6	22.5	0.8
	5.6	25.2	14.4	7.2	22.5	0.8
	6.8	25.2	15.1	8.3	22.5	0.8
	8.2	25.2	16.9	8.5	22.5	0.8
	10	25.2	17.7	9.4	22.5	0.8
250Vdc(160Vac)	0.022	9.8	7	4	7.5	0.5
	0.027	9.8	7.2	4.2	7.5	0.5
	0.033	9.8	6.7	3.7	7.5	0.6
	0.039	9.8	6.9	3.9	7.5	0.6
	0.047	9.8	7.1	4.1	7.5	0.6
	0.056	9.8	7.4	4.4	7.5	0.6
	0.068	9.8	6.7	3.7	7.5	0.6
	0.082	9.8	7	4	7.5	0.6
	0.1	9.8	7.7	4	7.5	0.6
	0.12	9.8	7.9	4.3	7.5	0.6
	0.15	9.8	8.3	4.7	7.5	0.6
	0.18	9.8	8.6	5	7.5	0.6
	0.22	12.3	8.4	4.7	10	0.6
	0.27	12.3	8.8	5.1	10	0.6
	0.33	12.3	9.7	5.3	10	0.6
	0.39	17.5	9.6	5.1	15	0.6
	0.47	17.5	9.9	5.5	15	0.6
	0.56	17.5	10.8	5.6	15	0.6
	0.68	17.5	11.3	6.1	15	0.6
	0.82	17.5	12.3	6.6	15	0.6
	1	17.5	12.9	7.2	15	0.6
	1.2	17.5	13.5	7.8	15	0.8
	1.5	17.5	15.3	8.5	15	0.8
	1.8	17.5	16	9.2	15	0.8
	2.2	25.2	15.2	8.4	22.5	0.8
	2.7	25.2	15.5	8.7	22.5	0.8
	3.3	25.2	16.9	10.1	22.5	0.8
	3.9	25.2	18.6	10.3	22.5	0.8
	4.7	25.2	19.6	11.3	22.5	0.8
	5.6	30.2	19.3	10.9	27.5	0.8
	6.8	30.2	20.4	12.1	27.5	0.8
	8.2	30.2	21.6	13.2	27.5	0.8
	10	30.2	23	14.6	27.5	0.8
400Vdc(200Vac)	0.022	9.8	7	4	7.5	0.6
	0.027	9.8	7.2	4.2	7.5	0.5
	0.033	9.8	7.3	4.3	7.5	0.5
	0.039	9.8	7.5	4.4	7.5	0.6
	0.047	9.8	8.2	4.5	7.5	0.6
	0.056	9.8	8.5	4.8	7.5	0.6
	0.068	12.3	8.2	4.5	10	0.6
	0.082	12.3	8.5	4.8	10	0.6
	0.1	12.3	9.4	5	10	0.6
	0.12	12.3	9.8	5.3	10	0.6
	0.15	17.5	9.6	5.2	15	0.6
	0.18	17.5	9.9	5.5	15	0.6
	0.22	17.5	10.4	5.9	15	0.6
	0.27	17.5	10.9	6.4	15	0.6
	0.33	17.5	11.9	6.7	15	0.6
	0.39	17.5	12.9	7.2	15	0.8
	0.47	17.5	13.5	8.3	15	0.8
	0.56	17.5	14.1	8.9	15	0.8
	0.68	17.5	14.9	9.7	15	0.8
	0.82	17.5	15.7	10.5	15	0.8
	1	25.2	16.6	8.2	22.5	0.8
	1.2	25.2	17.3	9	22.5	0.8
	1.5	25.2	18.3	9.9	22.5	0.8
	1.8	30.2	18.1	9.7	27.5	0.8
	2.2	30.2	20	10.1	27.5	0.8
	2.7	30.2	21.1	11.2	27.5	0.8
	3.3	30.2	22.3	12.4	27.5	0.8
	3.5	30.2	22.7	12.8	27.5	0.8
	3.9	30.2	23.5	13.5	27.5	0.8
	4.7	30.2	24.8	14.9	27.5	0.8
630Vdc(220Vac)	0.01	9.8	6.8	3.8	7.5	0.6
	0.012	9.8	7.4	3.8	7.5	0.6
	0.015	9.8	7.7	4.1	7.5	0.6
	0.018	9.8	7.9	4.3	7.5	0.6
	0.022	9.8	8.2	4.6	7.5	0.6
	0.027	9.8	8.6	5	7.5	0.6
	0.033	12.3	8.3	4.7	10	0.6
	0.039	12.3	8.6	4.9	10	0.6
	0.047	12.3	9	5.3	10	0.6
	0.056	12.3	9.3	5.7	10	0.6
	0.068	12.3	9.8	6.1	10	0.6
	0.082	12.3	10.3	6.6	10	0.6
	0.1	17.5	10.9	5.7	15	0.6
	0.12	17.5	11.3	6.1	15	0.6
	0.15	17.5	11.9	6.6	15	0.6
	0.18	17.5	12.9	7.2	15	0.8
	0.22	17.5	13.5	8.3	15	0.8
	0.27	17.5	14.3	9	15	0.8
	0.33	17.5	15.1	9.8	15	0.8
	0.39	17.5	15.8	10.6	15	0.8
630Vdc(220Vac)	0.47	25.2	15.6	8.8	22.5	0.8
	0.56	25.2	16.3	9.5	22.5	0.8
	0.68	25.2	17.2	10.4	22.5	0.8
	0.82	25.2	18.1	11.3	22.5	0.8
	1	30.2	18.9	10.5	27.5	0.8
	1.2	30.2	19.8	11.5	27.5	0.8
	1.5	30.2	21.2	12.8	27.5	0.8
	1.8	30.2	22.4	14	27.5	0.8
	2.2	30.2	23.9	15.5	27.5	0.8
50Vdc (30Vac)/63Vdc(40Vac)	0.12	9.8	7	4	7.5	0.6
	0.15	9.8	7.8	4.1	7.5	0.6
	0.18	9.8	7.5	3.9	7.5	0.6
	0.22	9.8	7.8	4.1	7.5	0.6
	0.27	9.8	8.1	4.5	7.5	0.6
	0.33	9.8	7.7	4.1	7.5	0.6
	0.39	9.8	8	4.3	7.5	0.6
	0.47	9.8	8.3	4.6	7.5	0.6
	0.56	9.8	8.6	5	7.5	0.6
	0.68	9.8	9	5.4	7.5	0.6
	0.82	12.3	8.6	5	10	0.6
	1	12.3	9	5.4	10	0.6
	1.2	12.3	9.5	5.9	10	0.6
	1.5	12.3	10.1	6.5	10	0.6
	1.8	12.3	10.7	7.1	10	0.6
	2.2	17.5	11.4	6.1	15	0.6
	2.7	17.5	11.9	6.7	15	0.6
	3.3	17.5	12.5	7.3	15	0.6
	3.9	17.5	13.6	7.9	15	0.8
	4.7	25.2	14.4	7.6	22.5	0.8
	5.6	25.2	14.9	7.7	22.5	0.8
	6.8	25.2	15.6	8.3	22.5	0.8
	8.2	25.2	16.4	9.6	22.5	0.8
	10	25.2	17.2	10.5	22.5	0.8
100Vdc(63Vac)	0.12	9.8	7	4	7.5	0.6
	0.15	9.8	7.8	4.1	7.5	0.6
	0.18	9.8	7.5	3.9	7.5	0.6
	0.22	9.8	7.8	4.1	7.5	0.6
	0.27	9.8	8.1	4.5	7.5	0.6
	0.33	9.8	8.5	4.8	7.5	0.6
	0.39	9.8	8.8	5.2	7.5	0.6
	0.47	9.8	9.2	5.6	7.5	0.6
	0.56	12.3	8.8	5.2	10	0.6
	0.68	12.3	9.3	5.61	10	0.6
	0.82	12.3	9.7	6.1	10	0.6
	1	12.3	10.3	6.6	10	0.6
	1.2	12.3	10.9	7.2	10	0.6
	1.5	12.3	11.6	8	10	0.6
	1.8	17.5	13.6	6.3	15	0.6
	2.2	17.5	14.2	6.9	15	0.8
	2.7	17.5	14.9	7.6	15	0.8
	3.3	17.5	15.7	8.4	15	0.8
	3.9	17.5	16.4	9.11	15	0.8
	4.7	25.2	17	8.1	22.5	0.8
	5.6	25.2	17.7	8.8	22.5	0.8
	6.8	25.2	18.5	10.2	22.5	0.8
	8.2	25.2	19.5	11.1	22.5	0.8
	10	25.2	21.5	11.6	22.5	0.8
400Vdc(200Vac)	0.01	9.8	6.9	3.9	7.5	0.6
	0.012	9.8	7.1	4.1	7.5	0.6
	0.015	9.8	7.5	4.4	7.5	0.6
	0.018	9.8	7.3	3.7	7.5	0.6
	0.022	9.8	7.5	3.9	7.5	0.6
	0.027	9.8	7.8	4.2	7.5	0.6
	0.033	9.8	8.1	4.5	7.5	0.6
	0.039	9.8	8.2	4.6	7.5	0.6
	0.047	9.8	8.6	4.9	7.5	0.6
	0.056	12.3	8.8	4.3	10	0.6
	0.068	12.3	9.1	4.7	10	0.6
400Vdc(200Vac)	0.082	12.3	9.4	5	10	0.6
	0.1	12.3	9.9	5.4	10	0.6
	0.12	12.3	10.3	5.9	10	0.6
	0.15	17.5	10.6	5.4	15	0.6
	0.18	17.5	11	5.8	15	0.6
	0.22	17.5	11.5	6.3	15	0.6
	0.27	17.5	12	6.8	15	0.6
	0.33	17.5	12.7	7.4	15	0.6
	0.39	17.5	13.7	8	15	0.8
	0.47	17.5	14.4	9.2	15	0.8
	0.56	17.5	15.1	9.9	15	0.8
250Vdc(160Vac)	0.01	9.8	6.5	3.5	7.5	0.6
	0.012	9.8	6.7	3.7	7.5	0.6
	0.015	9.8	7.4	3.8	7.5	0.6
	0.018	9.8	7.6	4	7.5	0.6
	0.022	9.8	7.4	3.8	7.5	0.6
	0.027	9.8	7.7	4.1	7.5	0.6
	0.033	9.8	7.3	3.7	7.5	0.6
	0.039	9.8	7.5	3.9	7.5	0.6
	0.047	9.8	7.8	4.1	7.5	0.6
	0.056	9.8	8	4.4	7.5	0.6
	0.068	9.8	7.5	3.9	7.5	0.6
	0.082	9.8	7.8	4.1	7.5	0.6
	0.1	9.8	8.1	4.4	7.5	0.6
	0.12	9.8	8.4	4.8	7.5	0.6
	0.15	9.8	8.8	5.2	7.5	0.6
	0.18	12.3	8.9	4.5	10	0.6
	0.22	12.3	9.3	4.8	10	0.6
	0.27	12.3	9.7	5.3	10	0.6
	0.33	12.3	10.7	5.5	10	0.6
	0.39	17.5	10.4	5.2	15	0.6
	0.47	17.5	10.8	5.6	15	0.6
	0.56	17.5	12.3	5.5	15	0.6
	0.68	17.5	12.8	6	15	0.6
	0.82	17.5	13.8	6.5	15	0.6
	1	17.5	14.4	7.1	15	0.6
	1.2	17.5	15	7.7	15	0.8
	1.5	17.5	15.9	9.1	15	0.8
	1.8	17.5	16.2	9.9	15	0.8
	2.2	25.2	15.6	8.8	22.5	0.8
	2.7	25.2	16.5	9.7	22.5	0.8
	3.3	25.2	17.4	10.6	22.5	0.8
	3.9	25.2	19.2	10.9	22.5	0.8
	4.7	25.2	20.3	11.9	22.5	0.8
	5.6	30.2	20.4	12.1	27.5	0.8
	6.8	30.2	21.6	13.3	27.5	0.8
	8.2	30.2	22.9	14.5	27.5	0.8
	10	30.2	24.4	16	27.5	0.8
630Vdc(220Vac)	0.01	12.3	7.4	3.8	10	0.6
	0.012	12.3	7.6	4	10	0.6
	0.015	12.3	7.7	4	10	0.6
	0.018	12.3	7.9	4.2	10	0.6
	0.022	12.3	8.2	4.5	10	0.6
	0.027	12.3	8.5	4.9	10	0.6
	0.033	12.3	8.9	5.2	10	0.6
	0.039	12.3	9.2	5.6	10	0.6
	0.047	12.3	9.7	6	10	0.6
	0.056	12.3	10.1	6.5	10	0.6
	0.068	12.3	10.7	7	10	0.6
	0.082	12.3	11.3	7.6	10	0.6
	0.1	17.5	11.5	6.3	15	0.6
	0.12	17.5	12	6.8	15	0.6
	0.15	17.5	12.7	7.5	15	0.8
	0.18	17.5	13.8	8.1	15	0.8
	0.22	17.5	14.5	9.3	15	0.8
	0.27	17.5	15.4	10.2	15	0.8
	0.33	17.5	16.3	11.1	15	0.8
	0.39	17.5	17.2	12	15	0.8
	0.47	25.2	16.4	9.7	22.5	0.8
	0.56	25.2	17.2	10.5	22.5	0.8
	0.68	25.2	18.2	11.4	22.5	0.8
	0.82	25.2	19.3	12.5	22.5	0.8
	1	30.2	19.9	11.6	27.5	0.8
	1.2	30.2	22	12.6	27.5	0.8
	1.5	30.2	22.5	14.1	27.5	0.8
	1.8	30.2	23.8	15.5	27.5	0.8
	2.2	30.2	25.5	17.1	27.5	0.8
1000Vdc(250Vac)	0.001	9.8	8.5	4	7.5	0.6
	0.0012	9.8	8.7	4.3	7.5	0.6
	0.0015	9.8	8.5	4.1	7.5	0.6
	0.0018	9.8	8.7	4.3	7.5	0.6
	0.0022	9.8	8.5	4.1	7.5	0.6
	0.0027	9.8	8.8	4.4	7.5	0.6
	0.0033	9.8	8.7	4.3	7.5	0.6
	0.0039	9.8	8.9	4.5	7.5	0.6
	0.0047	9.8	9.3	4.8	7.5	0.6
	0.0056	12.3	8.5	4.1	10	0.6
	0.0068	12.3	8.8	4.4	10	0.6
	0.0082	12.3	9.1	4.7	10	0.6
	0.01	12.3	9.4	5	10	0.6
	0.012	12.3	9.8	5.4	10	0.6
	0.015	12.3	10.8	5.6	10	0.6
	0.018	12.3	11.3	6.1	10	0.6
	0.022	12.3	11.9	6.7	10	0.6
	0.027	175	11.8	5	5	0.6
	0.033	17.5	12.3	5.5	15	0.6
	0.039	17.5	12.7	5.9	15	0.6
	0.047	17.5	13.2	6.5	15	0.8
	0.056	175	13.8	7	15	0.8
	0.068	17.5	14.5	7.7	15	0.8
	0.082	175	15.2	8.5	15	0.8
	0.1	17.5	16.6	9.7	15	0.8
	0.12	25.2	15.3	8.3	22.5	0.8
	0.15	25.2	16.2	9.2	22.5	0.8
	0.18	25.2	17.1	10.1	22.5	0.8
	0.22	25.2	18.1	11.1	22.5	0.8
	0.27	25.2	20.2	11.7	22.5	0.8
	0.33	30.2	20.1	11.6	27.5	0.8
	0.39	30.2	21.2	12.6	27.5	0.8
1250Vdc(250Vac)	0.001	9.8	8.5	4	7.5	0.6
	0.0012	9.8	8.7	4.3	7.5	0.6
	0.0015	9.8	8.5	4.1	7.5	0.6
	0.0018	9.8	8.7	4.3	7.5	0.6
	0.0022	9.8	8.5	4.1	7.5	0.6
	0.0027	9.8	8.8	4.4	7.5	0.6
	0.0033	9.8	9.1	4.7	7.5	0.6
	0.0039	9.8	9.4	5	7.5	0.6
	0.0047	12.3	8.7	4.2	10	0.6
	0.0056	12.3	8.9	4.5	10	0.6
	0.0068	12.3	9.2	4.8	10	0.6
	0.0082	17.5	9	4.6	15	0.6
	0.01	17.5	9.4	5	15	0.6
	0.012	17.5	9.1	4.7	15	0.6
	0.015	17.5	9.5	5.1	15	0.6
	0.018	17.5	9.9	5.4	15	0.6
	0.022	17.5	10.3	5.9	15	0.6
	0.027	25.2	9.7	5.2	22.5	0.6
	0.033	25.2	10.1	5.7	22.5	0.6
	0.039	25.2	10.5	6.1	22.5	0.8
	0.047	25.2	11	6.6	22.5	0.8
	0.056	30.2	11.4	6.2	27.5	0.8
	0.068	30.2	12	6.7	27.5	0.8
	0.082	30.2	12.6	7.3	27.5	0.8
	0.1	30.2	14.8	7.8	27.5	0.8
	0.12	30.2	15.4	8.5	27.5	0.8
	0.15	30.2	16.4	9.4	27.5	0.8
	0.18	30.2	18.3	9.7	27.5	0.8
	0.22	30.2	19.3	10.7	27.5	0.8
400Vdc(200Vac)	0.68	17.5	16	10.8	15	0.8
	0.82	17.5	17	11.8	15	0.8
	1	25.2	17.5	9.1	22.5	0.8
	1.2	25.2	18.3	9.9	22.5	0.8
	1.5	25.2	19.4	11	22.5	0.8
	1.8	30.2	19.1	10.8	27.5	0.8
	2.2	30.2	21.2	11.3	27.5	0.8
	2.7	30.2	22.4	12.5	27.5	0.8
	3.3	30.2	23.8	13.9	27.5	0.8
	3.9	30.2	25.1	15.1	27.5	0.8
	4.7	30.2	26.6	16.7	27.5	0.8

Question? Check out our answer.

HOW LONG CAN I GET THE FEEDBACK AFTER WE SENT THE INQUIRY?

We will reply to you within 12 hours of the working day.
ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

We have a self-owned factory, we also have our own international sales department. We produce and sell all by ourselves.
WHAT PRODUCTS CAN YOU OFFER?

We focus on film capacitors.
WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

Our products are used in a wide range of applications, including household appliances, power supplies, electricity meters, lighting, welding machines, rail transit, electric vehicles, power grids, UPS/EPS, medical equipment, photovoltaic inverters, wind power converters, and more.
CAN YOU DO CUSTOMIZED PRODUCTS?

Yes, we are experts in doing customized products according to the customers’ drawings or samples.

Focused on Electronic Components Manufacturing for 20 Years.

Walson Electronics was established in 2001, with more than 20 years of experience in R&D, manufacturing, sale and service of film capacitors. Custom CL21 series Metallized Polyester Film Capacitor Manufacturers and CL21 series Metallized Polyester Film Capacitor Factory

We always adhere to the cooperation of advanced automation and industrialization. the company continues to introduce domestic and foreign outstanding production equipment, while self-developed production management software, enterprise collaborative management to scientific and efficient operation, has achieved 1 billion/annual production capacity breakthrough, and maintains an orderly rise.

Walson Electronics products have covered more industries, including new energy and power industry, Photovoltaic inverters, LED lighting, household appliances and various power sources and other industries.

Adhering to the concept of innovative technology, honest service and professional quality, Walson Electronics pushes forward capacitor products continuously and is sure to become the industry pioneer with innovative advantages.
