MKT21B Box-Type Metallized Polyester Film Capacitor (Stacked Version)

Features：
Metalized polyester film, stacked construction
Plastic case (UL94 V-0), epoxy resin sealing
High dv/dt ability
Contact Us PDF Download
PREV：CL11 Inductive Metallized Foil Polyester Film CapacitorNEXT：MKT21 series Metallized Polyester Film Capacitor (Box-Type)
Typical Applications：
By-passing, blocking, coupling, decoupling
Pulse logic, timing, compact fluorescent lamps
Inverter for LCD monitors, automotive DC motor suppression

Specifications

Reference Standard GB/T 7332(IEC 60384-2)
Climatic Category 55/125/56
Rated Temperature 85℃
Operating Temperature Range -55℃-125℃
Rated Voltage 50/63V,100V,250V,400V,500V,630V,700V
Capacitance Range 0.0010μF~2.2μF
Capacitance Tolerance ±5%(J),±10%(K),±20%(M)
Voltage Proof 1.4UR(5s)
Dissipation Factor Frequency CN≤0.1μF CN>0.1μ
1kHz ≤1.0% ≤1.0%
10kHz ≤1.5% ≤1.5%
100kHz ≤3.0%
Insulation Resistance UR>100V
R≥30000MΩ，CN≤0.33μF
RCN≥10000s，CN＞0.33μF
 (20℃,100V,1min)
UR≤100y
R≥15000MΩ，CN≤0.33μF
RCN≥5000s，0.33μF＜CN≤1μF
RCN≥1000s，CN＞1μF
 (20℃,10V,1min)
Maximum Pulse Rise Time (dV/dt):
If the working voltage (U) is lower than the rated voltage (UR), the
capacitor can be worked at a higher dV/dt. In this case, the
maximum allowed dV/dt is obtained by multiplying the right value
with UR/U.
 UR(V) dV/dt(V/μs)
Pattem I Pattern ll
50/63 250 75
100 300 85
250 400 100
400 600 150
500 700 200
630 800
700 -- 250

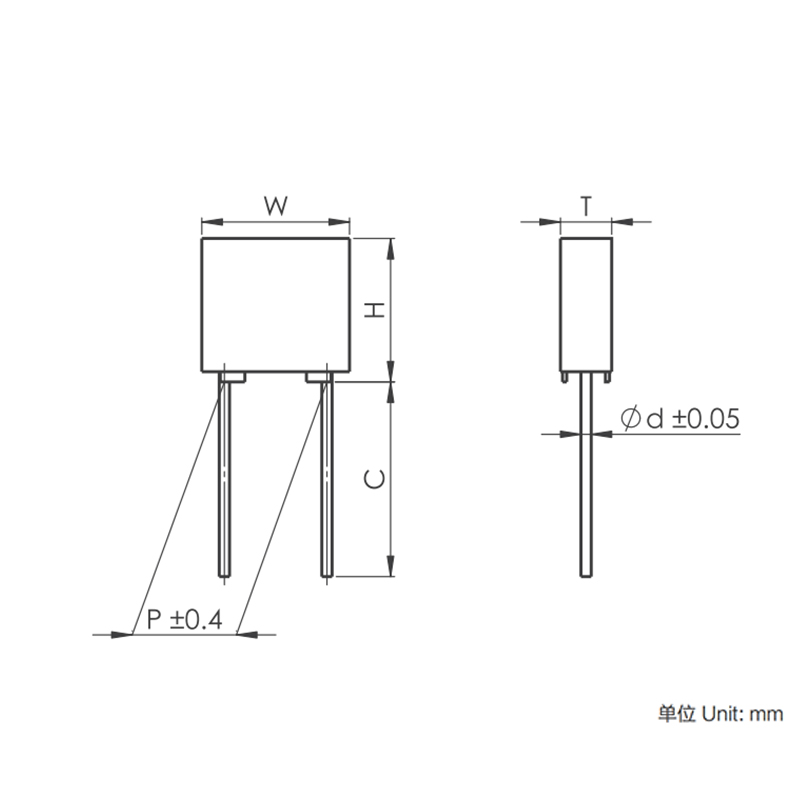

Dimensions(mm)

CN
(uF)		 W H T P d
50Vdc(30Vac)/63Vdc(40Vac) 0.15 7.2 6.5 2.5 5 0.5
0.18 7.2 6.5 2.5 5 0.5
0.22 7.2 6.5 2.5 5 0.5
0.27 7.2 6.5 2.5 5 0.5
0.33 7.2 7.5 3.5 5 0.5
0.39 7.2 7.5 3.5 5 0.5
0.47 7.2 7.5 3.5 5 0.5
0.56 7.2 9.5 4.5 5 0.6
0.68 7.2 9.5 4.5 5 0.6
0.82 7.2 9.5 4.5 5 0.6
1 7.2 10 5 5 0.6
1.5 7.2 11 6 5 0.6
2.2 7.2 11 6 5 0.6
100Vdc(63Vac) 0.1 7.2 6.5 2.5 5 0.5
0.12 7.2 6.5 2.5 5 0.5
0.15 7.2 7.5 3.5 5 0.5
0.18 7.2 7.5 3.5 5 0.5
0.22 7.2 7.5 3.5 5 0.5
0.27 7.2 9.5 4.5 5 0.6
0.33 7.2 9.5 4.5 5 0.6
0.39 7.2 9.5 4.5 5 0.6
0.47 7.2 10 5 5 0.6
0.56 7.2 10 5 5 0.6
0.68 7.2 11 6 5 0.6
0.82 7.2 11 6 5 0.6
1 7.2 11 6 5 0.6
250Vdc(140Vac) 0.022 7.2 6.5 2.5 5 0.5
0.027 7.2 6.5 2.5 5 0.5
0.033 7.2 6.5 2.5 5 0.5
0.039 7.2 7.5 3.5 5 0.5
0.047 7.2 7.5 3.5 5 0.5
0.056 7.2 7.5 3.5 5 0.5
0.068 7.2 7.5 3.5 5 0.5
0.082 7.2 9.5 4.5 5 0.6
0.1 7.2 9.5 4.5 5 0.6
0.12 7.2 9.5 4.5 5 0.6
0.15 7.2 10 5 5 0.6
0.18 7.2 11 6 5 0.6
0.22 7.2 11 6 5 0.6
400Vdc(160Vac) 0.0056 7.2 6.5 2.5 5 0.5
0.0068 7.2 6.5 2.5 5 0.5
0.0082 7.2 6.5 2.5 5 0.5
0.01 7.2 6.5 2.5 5 0.5
0.012 7.2 6.5 2.5 5 0.5
0.015 7.2 7.5 3.5 5 0.5
0.018 7.2 7.5 3.5 5 0.5
0.022 7.2 7.5 3.5 5 0.5
0.027 7.2 7.5 3.5 5 0.5
0.033 7.2 9.5 4.5 5 0.6
0.039 7.2 9.5 4.5 5 0.6
0.047 7.2 9.5 4.5 5 0.6
0.051 7.2 10 5 5 0.6
0.056 7.2 11 6 5 0.6
0.068 7.2 11 6 5 0.6
0.082 7.2 11 6 5 0.6
0.1 7.2 11 6 5 0.6
500/630Vdc(220Vac) 0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 6.5 2.5 5 0.5
0.0039 7.2 6.5 2.5 5 0.5
0.0047 7.2 6.5 2.5 5 0.5
0.0056 7.2 7.5 3.5 5 0.5
0.0068 7.2 7.5 3.5 5 0.5
0.0082 7.2 7.5 3.5 5 0.5
0.01 7.2 7.5 3.5 5 0.5
0.012 7.2 9.5 4.5 5 0.6
0.015 7.2 9.5 4.5 5 0.6
0.018 7.2 9.5 4.5 5 0.6
0.022 7.2 10 5 5 0.6
0.027 7.2 11 6 5 0.6
0.033 7.2 11 6 5 0.6
700Vdc(250Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 7.5 3.5 5 0.5
0.0039 7.2 7.5 3.5 5 0.5
0.0047 7.2 7.5 3.5 5 0.5
0.0056 7.2 7.5 3.5 5 0.5
0.0068 7.2 7.5 3.5 5 0.5
0.0082 7.2 9.5 4.5 5 0.6
0.01 7.2 9.5 4.5 5 0.6
0.012 7.2 9.5 4.5 5 0.6
0.015 7.2 10 5 5 0.6
0.018 7.2 11 6 5 0.6
0.022 7.2 11 6 5 0.6
50Vdc(30Vac)/63Vdc(40Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 6.5 2.5 5 0.5
0.0039 7.2 6.5 2.5 5 0.5
0.0047 7.2 6.5 2.5 5 0.5
0.0056 7.2 6.5 2.5 5 0.5
0.0068 7.2 6.5 2.5 5 0.5
0.0082 7.2 6.5 2.5 5 0.5
0.01 7.2 6.5 2.5 5 0.5
0.012 7.2 6.5 2.5 5 0.5
0.015 7.2 6.5 2.5 5 0.5
0.018 7.2 6.5 2.5 5 0.5
0.022 7.2 6.5 2.5 5 0.5
0.027 7.2 6.5 2.5 5 0.5
0.033 7.2 6.5 2.5 5 0.5
0.039 7.2 6.5 2.5 5 0.5
0.047 7.2 6.5 2.5 5 0.5
0.056 7.2 6.5 2.5 5 0.5
0.068 7.2 6.5 2.5 5 0.5
0.082 7.2 6.5 2.5 5 0.5
0.1 7.2 6.5 2.5 5 0.5
0.12 7.2 6.5 2.5 5 0.5
0.15 7.2 7.5 3.5 5 0.5
0.18 7.2 7.5 3.5 5 0.5
0.22 7.2 7.5 3.5 5 0.5
0.27 7.2 9.5 4.5 5 0.6
0.33 7.2 9.5 4.5 5 0.6
0.39 7.2 9.5 4.5 5 0.6
0.47 7.2 10 5 5 0.6
0.56 7.2 10 5 5 0.6
0.68 7.2 11 6 5 0.6
0.82 7.2 11 6 5 0.6
1 7.2 11 6 5 0.6
100Vdc(63Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 6.5 2.5 5 0.5
0.0039 7.2 6.5 2.5 5 0.5
0.0047 7.2 6.5 2.5 5 0.5
0.0056 7.2 6.5 2.5 5 0.5
0.0068 7.2 6.5 2.5 5 0.5
0.0082 7.2 2.5 5 0.5
0.01 7.2 6.5 2.5 5 0.5
0.012 7.2 6.5 2.5 5 0.5
0.015 7.2 6.5 2.5 5 0.5
0.018 7.2 6.5 2.5 5 0.5
0.022 7.2 6.5 2.5 5 0.5
0.027 7.2 6.5 2.5 5 0.5
0.033 7.2 6.5 2.5 5 0.5
0.039 7.2 6.5 2.5 5 0.5
0.047 7.2 6.5 2.5 5 0.5
0.056 7.2 6.5 2.5 5 0.5
0.068 7.2 6.5 2.5 5 0.5
0.082 7.2 6.5 2.5 5 0.5
0.1 7.2 7.5 3.5 5 0.5
0.12 7.2 9.5 4.5 5 0.6
0.15 7.2 9.5 4.5 5 0.6
0.18 7.2 4.5 5 0.6
0.22 7.2 10 5 5 0.6
0.27 7.2 10 5 5 0.6
0.33 7.2 11 6 5 0.6
0.39 7.2 11 6 5 0.6
0.47 7.2 11 6 5 0.6
0.56 7.2 11 6 5 0.6
250Vdc(160Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 6.5 2.5 5 0.5
0.0039 7.2 6.5 2.5 5 0.5
0.0047 7.2 6.5 2.5 5 0.5
0.0056 7.2 6.5 2.5 5 0.5
0.0068 7.2 6.5 2.5 5 0.5
0.0082 7.2 6.5 2.5 5 0.5
0.01 7.2 6.5 2.5 5 0.5
0.012 7.2 6.5 2.5 5 0.5
0.015 7.2 6.5 2.5 5 0.5
0.018 7.2 6.5 2.5 5 0.5
0.022 7.2 7.5 3.5 5 0.5
0.027 7.2 7.5 3.5 5 0.5
0.033 7.2 7.5 3.5 5 0.5
0.039 7.2 7.5 3.5 5 0.5
0.047 7.2 9.5 4.5 5 0.6
0.056 7.2 9.5 4.5 5 0.6
0.068 7.2 9.5 4.5 5 0.6
0.082 7.2 10 5 5 0.6
0.1 7.2 10 5 5 0.6
0.12 7.2 11 6 5 0.6
0.15 7.2 11 6 5 0.6
400Vdc(200Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 6.5 2.5 5 0.5
0.0039 7.2 6.5 2.5 5 0.5
0.0047 7.2 6.5 2.5 5 0.5
0.0056 7.2 7.5 3.5 5 0.5
0.0068 7.2 7.5 3.5 5 0.5
0.0082 7.2 7.5 3.5 5 0.5
0.01 7.2 7.5 3.5 5 0.5
0.012 7.2 9.5 4.5 5 0.6
0.015 7.2 9.5 4.5 5 0.6
0.018 7.2 9.5 4.5 5 0.6
0.022 7.2 10 5 5 0.6
0.027 7.2 11 6 5 0.6
0.033 7.2 11 6 5 0.6
0.039 7.2 11 6 5 0.6
0.047 7.2 11 6 5 0.6
500Vdc(220Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 6.5 2.5 5 0.5
0.0022 7.2 6.5 2.5 5 0.5
0.0027 7.2 6.5 2.5 5 0.5
0.0033 7.2 7.5 3.5 5 0.5
0.0039 7.2 7.5 3.5 5 0.5
0.0047 7.2 7.5 3.5 5 0.5
0.0056 7.2 7.5 3.5 5 0.5
0.0068 7.2 9.5 4.5 5 0.6
0.0082 7.2 9.5 4.5 5 0.6
0.01 7.2 9.5 4.5 5 0.6
0.012 7.2 9.5 4.5 5 0.6
0.015 7.2 10 5 5 0.6
0.018 7.2 11 6 5 0.6
0.022 7.2 11 6 5 0.6
0.027 7.2 11 6 5 0.6
630Vdc(220Vac) 0.001 7.2 6.5 2.5 5 0.5
0.0012 7.2 6.5 2.5 5 0.5
0.0015 7.2 6.5 2.5 5 0.5
0.0018 7.2 7.5 3.5 5 0.5
0.0022 7.2 7.5 3.5 5 0.5
0.0027 7.2 7.5 3.5 5 0.5
0.0033 7.2 7.5 3.5 5 0.5
0.0039 7.2 7.5 3.5 5 0.5
0.0047 7.2 9.5 4.5 5 0.6
0.0056 7.2 9.5 4.5 5 0.6
0.0068 7.2 9.5 4.5 5 0.6
0.0082 7.2 9.5 4.5 5 0.6
0.01 7.2 10 5 5 0.6
0.012 7.2 11 6 5 0.6
0.015 7.2 11 6 5 0.6
0.018 7.2 11 6 5 0.6

Click to view

Question? Check out our answer.

  • HOW LONG CAN I GET THE FEEDBACK AFTER WE SENT THE INQUIRY?

    We will reply to you within 12 hours of the working day.

  • ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

    We have a self-owned factory, we also have our own international sales department. We produce and sell all by ourselves.

  • WHAT PRODUCTS CAN YOU OFFER?

    We focus on film capacitors.

  • WHAT APPLICATIONS DO YOUR PRODUCTS RELATE TO?

    Our products are used in a wide range of applications, including household appliances, power supplies, electricity meters, lighting, welding machines, rail transit, electric vehicles, power grids, UPS/EPS, medical equipment, photovoltaic inverters, wind power converters, and more.

  • CAN YOU DO CUSTOMIZED PRODUCTS?

    Yes, we are experts in doing customized products according to the customers’ drawings or samples.

Further negotiation?
We are glad to hear from you.

Build A Partnership With Us With Our Industry Insight!
and strategic vision!

* We promise never to disclose your information.

ABOUT US

Focused on Electronic Components Manufacturing for 20 Years.

Walson Electronics was established in 2001, with more than 20 years of experience in R&D, manufacturing, sale and service of film capacitors. Custom MKT21B Box-Type Metallized Polyester Film Capacitor (Stacked Version) Manufacturers and MKT21B Box-Type Metallized Polyester Film Capacitor (Stacked Version) Factory

We always adhere to the cooperation of advanced automation and industrialization. the company continues to introduce domestic and foreign outstanding production equipment, while self-developed production management software, enterprise collaborative management to scientific and efficient operation, has achieved 1 billion/annual production capacity breakthrough, and maintains an orderly rise.

Walson Electronics products have covered more industries, including new energy and power industry, Photovoltaic inverters, LED lighting, household appliances and various power sources and other industries.

Adhering to the concept of innovative technology, honest service and professional quality, Walson Electronics pushes forward capacitor products continuously and is sure to become the industry pioneer with innovative advantages.

Contact Us
  • Chairman - Zhenqiu An
    Chairman - Zhenqiu An
  • VP - Andrew An
    VP - Andrew An
  • Salon at Walson
    Salon at Walson
  • Wall of Walson Honors
    Wall of Walson Honors
  • Lobby at Walson
    Lobby at Walson
  • Production Centre Building
    Production Centre Building
  • Production Centre
    Production Centre
  • WALSON
    WALSON
  • Headquarter Office
    Headquarter Office
  • Customer Service Team
    Customer Service Team
  • Product Design
    Product Design
  • Boardroom at Walson
    Boardroom at Walson
  • Salon at Walson
    Salon at Walson
  • Walson Laboratory
    Walson Laboratory
  • Walson Laboratory
    Walson Laboratory
  • Walson Laboratory
    Walson Laboratory
  • Performance Test at Walson Laboratory
    Performance Test at Walson Laboratory
  • Production Equipment
    Production Equipment

RELATED PRODUCTS

View All Product

VIEW CERTIFICATE

News
Message Feedback
Industry Knowledge

MKT21B box-type metallized polyester film capacitor (stacked version) - Can Its Advantages and Applications Meet Modern Electronic Needs?

In modern electronic devices, capacitors are widely used in many fields such as power, signal processing and energy storage as a basic electronic component. For some applications in high frequency, high voltage and complex environments, it is particularly important to choose the right capacitor. Walson Electronics, as a company integrating production and sales, provides MKT21B box-type metallized polyester film capacitor (stacked version) that shows unique advantages in these requirements. This article will discuss in detail the characteristics of the product, company background and market application, and answer whether it can meet the stringent needs of the contemporary electronics industry.

Technical Features of MKT21B Box Metallized Polyester Film Capacitor
MKT21B capacitor uses metallized polyester film technology, which enables the capacitor to maintain low loss and good stability at high frequency operation. Its internal laminated structure not only improves the overall performance of the capacitor, but also effectively improves its withstand voltage and service life. The product's housing is made of high-quality plastic (compliant with UL94 V-0 standard), which has good fire resistance and protection performance, and is suitable for more complex working environments.

MKT21B capacitors also have high dv/dt capability, which means that they can also work stably in high voltage and rapidly changing current environments. This feature is particularly critical for applications that require fast response and high stability, and can effectively improve the reliability of the equipment.

Epoxy resin sealing is another outstanding feature of MKT21B capacitors. The sealing design not only prevents the intrusion of external moisture or dust, but also effectively resists the corrosion of chemicals in the environment to the inside of the capacitor, further extending the service life and ensuring the stability of the product in harsh environments.

Walson Electronics' advantages and production capabilities
Walson Electronics has its own factory, which can realize self-control of all production links from raw material procurement, design to final product, ensuring the high quality and consistency of the product. The company's self-developed production line uses advanced technology and equipment, so that each MKT21B capacitor can be strictly controlled during the manufacturing process and meet international standards.

Walson Electronics also has its own international sales department to ensure that it can respond quickly to customer needs. Whether in terms of product customization services or delivery time, Walson can provide flexible and efficient solutions. With these two advantages, Walson Electronics not only occupies a place in the domestic market, but also gradually expands its influence in the international market.

Application fields of MKT21B capacitors
MKT21B box-type metallized polyester film capacitors are widely used in many fields due to their high voltage resistance, high stability and strong protection. For example, in communication equipment, MKT21B capacitors can be used for filtering, decoupling and signal stabilization to ensure the stability of equipment in high-frequency environments. In the field of automotive electronics, with the popularization of electric vehicles and intelligent vehicles, the requirements of electronic systems for capacitors are becoming more and more stringent. MKT21B capacitors can withstand higher voltage fluctuations with their high dv/dt capabilities and are widely used in automotive electronic control systems.

MKT21B capacitors are also suitable for industrial control, LED lighting, power modules and other occasions. Its high reliability and environmental resistance enable it to provide long-term stable working performance in these fields.

MKT21B box-type metallized polyester film capacitors (laminated version) have become an ideal choice for many demanding electronic products due to their advanced technology, excellent performance and wide range of applications. As its manufacturer, Walson Electronics, with its own factories and international sales network, is able to provide high-quality products and thoughtful customer service to meet the various needs of global customers for capacitors.
