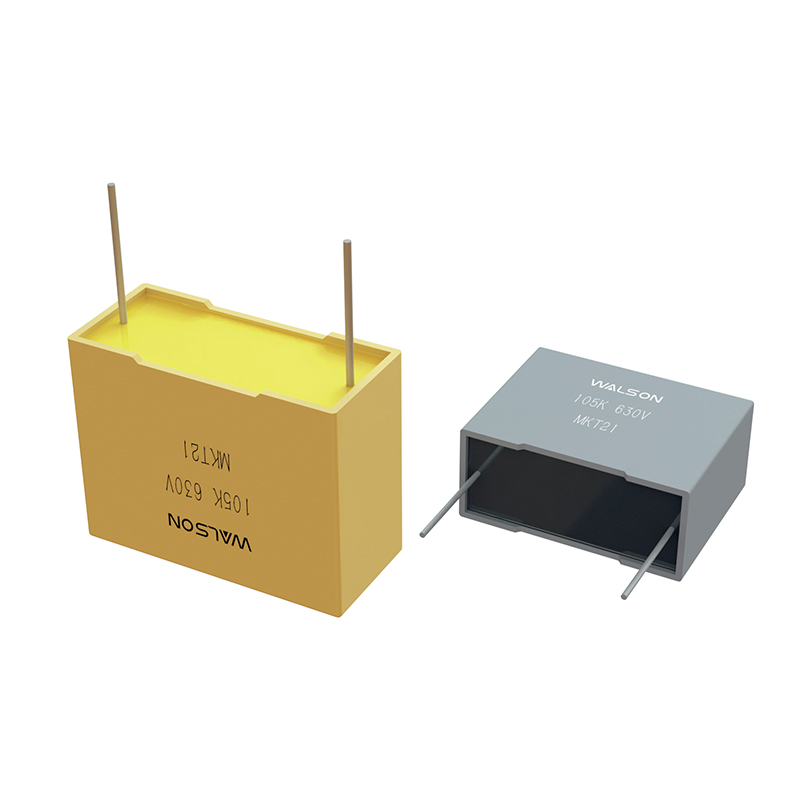

MKT21 series Metallized Polyester Film Capacitor (Box-Type)

Features：
Metalized polyester film, non-inductive wound construction
Outstanding self-healing property, high reliability
Sealed with flame-retardant plastic case and resin (UL94 V-0)
Contact Us PDF Download
PREV：MKT21B Box-Type Metallized Polyester Film Capacitor (Stacked Version)NEXT：CL20 Metallized Polyester Film Capacitor (Axial-Type)
Typical Applications：
Suitable for by-passing, blocking, coupling, decoupling, pulse, logic, timing and oscillator circuit, etc.

Specifications

Reference Standard GB/T 7332 (IEC 60384-2 )
Climatic Category 55/105/56
Rated Temperature 85℃
Operating Temperature Range -55~105℃
UR Rated Voltage 100/250/400/630/1000V，63/160/200/220/250Vac
Capacitance Range 0.001μF~33.0μF
Capacitance Tolerance ±5% (J) ±10% (K) ±20% (M)
Voltage Proof 1.6UR (5s)
RInsInsulation Resistance ( Rlns) CN≤0.33μF: ≥7500MΩ CN>0.33μF: ≥2500s (20℃,100Vdc, 1min)
Tanδ Dissipation Factor ≤0.0100 (1kHz, 20℃)

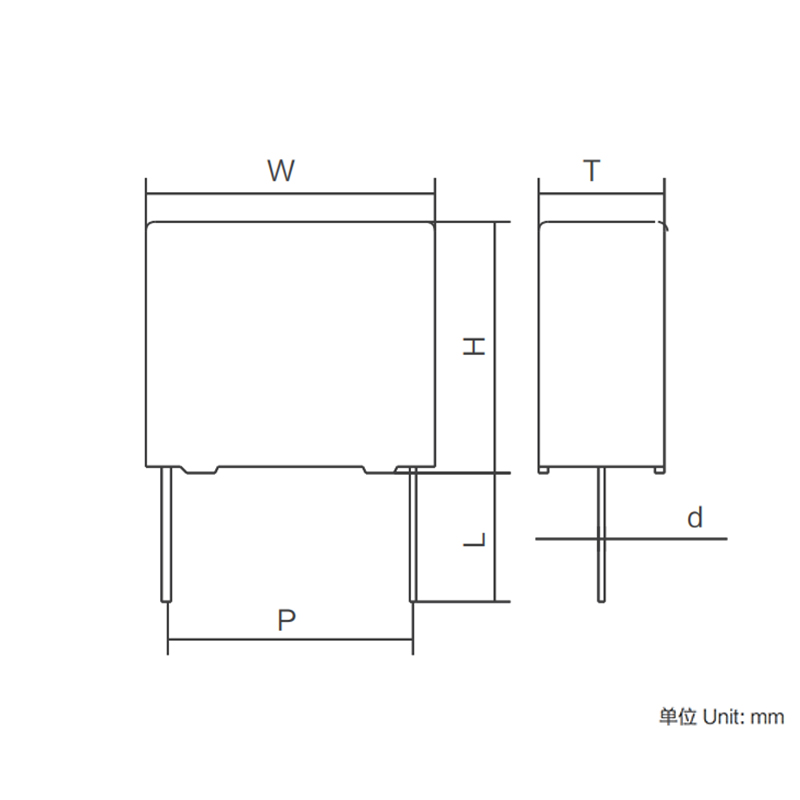

Dimensions(mm)

CN
(μF)		 W±1.0
(mm)		 H±1.0
(mm)		 T±1.0
(mm)		 P±0.5
(mm)		 d±0.05 (mm
100Vdc(63Vac) 1 13 11 5 10 0.6
1.5 13 12 6 10 0.6
1 18 11 5 15 0.8
1.5 18 12 6 15 0.8
2.2 18 12 6 15 0.8
3.3 18 13.5 7.5 15 0.8
4.7 18 14.5 8.5 15 0.8
3.3 26.5 15 6 22.5 0.8
4.7 26.5 16.5 7 22.5 0.8
6.8 26.5 19 10 22.5 0.8
10 26.5 22 12 22.5 0.8
6.8 32 18 9 27.5 0.8
10 32 20 11 27.5 0.8
15 32 20 11 27.5 0.8
22 32 25 13 27.5 0.8
33 32 30 16 27.5 0.8
250Vdc(160Vac) 0.33 13 11 5 10 0.6
0.47 13 12 6 10 0.6
0.47 18 11 5 15 0.8
0.68 18 12 6 15 0.8
1 18 13.5 7.5 15 0.8
1.5 18 14.5 8.5 15 0.8
1 26.5 15 6 22.5 0.8
1.5 26.5 16.5 7 22.5 0.8
2.2 26.5 17 8.5 22.5 0.8
3.3 26.5 20 11 22.5 0.8
3.3 32 18 9 27.5 0.8
4.7 32 20 11 27.5 0.8
6.8 32 22 13 27.5 0.8
10 32 24.5 15 27.5 0.8
400Vdc(200Vac) 0.1 13 11 5 10 0.6
0.15 13 12 6 10 0.6
0.15 18 11 5 15 0.8
0.22 18 12 6 15 0.8
0.33 18 13.5 7.5 15 0.8
0.47 18 14.5 8.5 15 0.8
0.68 18 16 10 15 0.8
0.47 26.5 15 6 22.5 0.8
0.68 26.5 16.5 7 22.5 0.8
1 26.5 19 10 27.5 0.8
1.5 26.5 22 12 27.5 0.8
1 32 18 9 27.5 0.8
1.5 32 20 11 27.5 0.8
2.2 32 22 13 27.5 0.8
3.3 32 24.5 15 27.5 0.8
4.7 32 30 16 27.5 0.8
6.8 32 33 18 27.5 0.8
630Vdc(220Vac) 0.047 13 11 5 10 0.6
0.068 13 12 6 10 0.6
0.068 18 11 5 15 0.8
0.1 18 12 6 15 0.8
0.15 18 13.5 7.5 15 0.8
0.22 18 16 10 15 0.8
0.33 18 19 11 15 0.8
0.15 26.5 15 6 22.5 0.8
0.22 26.5 16.5 7 22.5 0.8
0.33 26.5 16.5 7 22.5 0.8
0.47 26.5 17 8.5 22.5 0.8
0.68 26.5 22 12 22.5 0.8
0.47 32 18 9 27.5 0.8
0.68 32 20 11 27.5 0.8
1 32 20 11 27.5 0.8
1000Vdc(250Vac) 0.015 13 11 5 10 0.6
0.022 13 12 6 10 0.6
0.022 18 11 5 15 0.8
0.033 18 12 6 15 0.8
0.047 18 12 6 15 0.8
0.068 18 13.5 7.5 15 0.8
0.1 18 14.5 8.5 15 0.8
0.1 26.5 15 6 22.5 0.8
0.15 26.5 16.5 7 22.5 0.8
0.22 26.5 17 8.5 22.5 0.8
0.33 26.5 20 11 22.5 0.8
0.22 32 18 9 27.5 0.8
0.33 32 20 11 27.5 0.8
0.47 32 20 11 27.5 0.8
0.68 32 28 14 27.5 0.8
1 32 30 16 27.5 0.8
1.5 32 37 22 27.5 0.8
