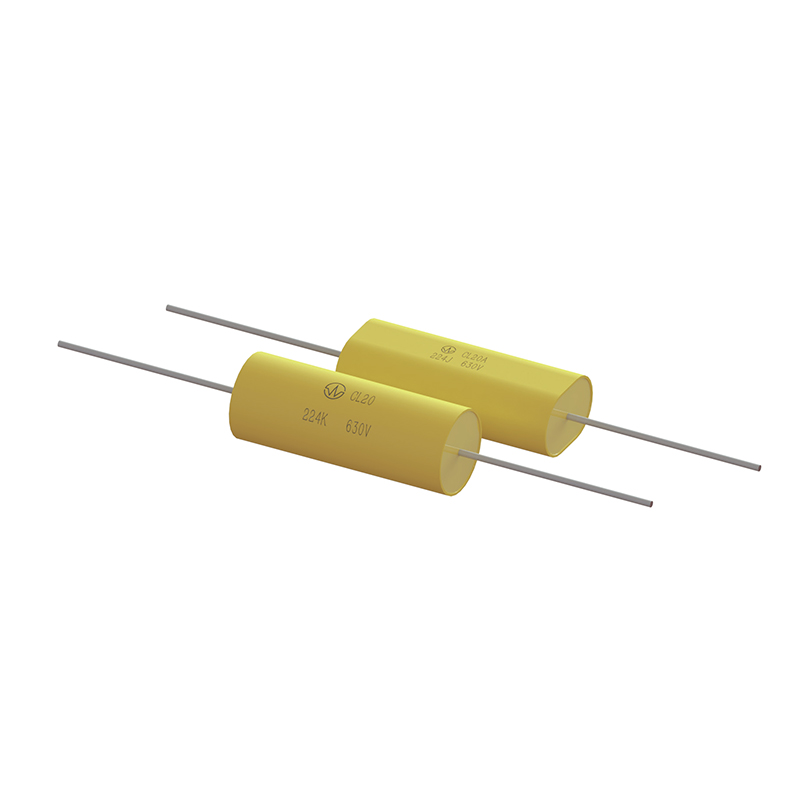

CL20 Metallized Polyester Film Capacitor (Axial-Type)

Features：
Metallized polyester film, Outstanding self-healing property
Axial leaded, small size, light weight
Wrapped with polyester tape and filled with flame-retardant epoxy resin (UL94 V-O)
Contact Us PDF Download

Share:

PREV：MKT21 series Metallized Polyester Film Capacitor (Box-Type)NEXT：CL21X series Metallized Polyester Film Capacitor (Sub-Miniature)
Typical Applications：
Suitable for blocking, by-pass, coupling and decoupling circuit

Specifications

Reference Standard GB/T 7332 (IEC 60384-2)
Climatic Category 55/105/21
Rated Temperature 85℃
Operating Temperature Range -55~105℃
UR Rated Voltage 100/250/400/630/1000V、63/160/200/220/250/Vac
Capacitance Range 0.001μF~10.0μF
Capacitance Tolerance ±5% (J) ±10% (K)±20%(M)
Voltage Proof 1.6UR (5s)
RInsInsulation Resistance ( Rlns) CN≤0.33μF: ≥7500MΩ CN>0.33μF: ≥2500s (20℃,100Vdc, 1min)
Tanδ Dissipation Factor ≤0.01 (1kHz, 20℃)

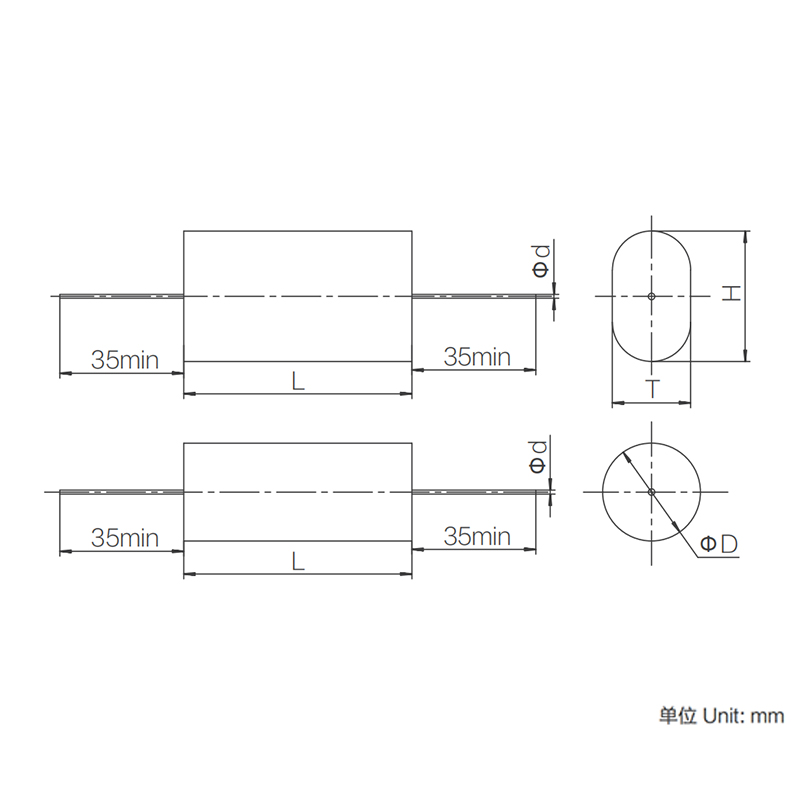

Dimensions(mm)

C N
(μ F		 Cylinder
D±1.0
(mm)		 Flat L±1.0
(mm)		 d±0.05 (mm)
H±1.0
(mm)		 T±1.0
(mm)
100Vdc(63Vac) 0.33 6 15 0.6
0.47 6.5 15 0.6
0.68 7 15 0.8
1 8 20 0.8
1.5 8 20 0.8
2.2 9 20 0.8
3.3 9.5 27 0.8
4.7 10 33 0.8
6.8 11.5 33 0.8
10 13.5 33 1
250Vdc(160Vac) 0.1 5.5 15 0.6
0.15 5.5 15 0.6
0.22 6 15 0.6
0.33 6.5 20 0.6
0.47 7 20 0.8
0.68 8 20 0.8
1 9 20 0.8
1.5 9 27 0.8
2.2 11 33 0.8
3.3 13 33 0.8
4.7 15.5 33 0.8
6.8 18.5 33 1
10 22 33 1
400Vdc(200Vac) 0.047 6.5 15 0.6
0.068 6.5 15 0.6
0.1 7.5 15 0.8
0.15 7 20 0.8
0.22 7.5 20 0.8
0.33 9 20 0.8
0.47 8.5 27 0.8
0.68 10 27 0.8
1 10.5 33 0.8
1.5 125 33 0.8
22 14.5 33 0.8
3.3 17.5 33 1
630Vdc(220Vac) 0.01 6 15 0.6
0.015 6.5 15 0.6
0.022 7.5 15 0.8
0.033 7 20 0.8
0.047 7.5 20 0.8
0.068 8.5 20 0.8
0.1 8 27 0.8
0.15 9 27 0.8
0.22 10.5 27 0.8
0.33 11 33 0.8
0.47 12.5 33 0.8
0.68 14.5 33 0.8
1 17.5 33 1
1000Vdc(250Vac) 0.0047 5.2 15 0.6
0.0068 5.2 15 0.6
0.01 6 20 0.6
0.015 6.5 20 0.6
0.022 7 20 0.8
0.033 6.5 27 0.8
0.047 7 27 0.8
0.068 8 27 0.8
0.1 9 27 0.8
0.15 9.5 33 0.8
0.22 11 33 0.8
0.33 13 33 0.8
0.47 15 33 0.8
