Reference Standard | GB/T 17702 (IEC 61071) |
Climatic Category | 40/105/56 |
Rated Temperature | 85℃ |
Operating Temperature | -40~105℃ |
UN Normal Voltage | 630/850/1000/1200/1600/2000/2500/3000Vdc 420/450/500/600/650/700/725/750Vac |
Capacitance Tolerance | ±5%(J)±10%(K) |
Voltage Proof | 1.5UN (10s) |
RIns Insulation Resistance | CN≤0.33μF:≥15000MΩ CN>0.33μF:≥5000s(20℃ 100Vdc, 1min) |
tanδ Dissipation Factor | ≤0.0005 (1kHz, 20℃) |
tEL Expected Lifetime | 100,000h@UN, Θhs=70℃ |

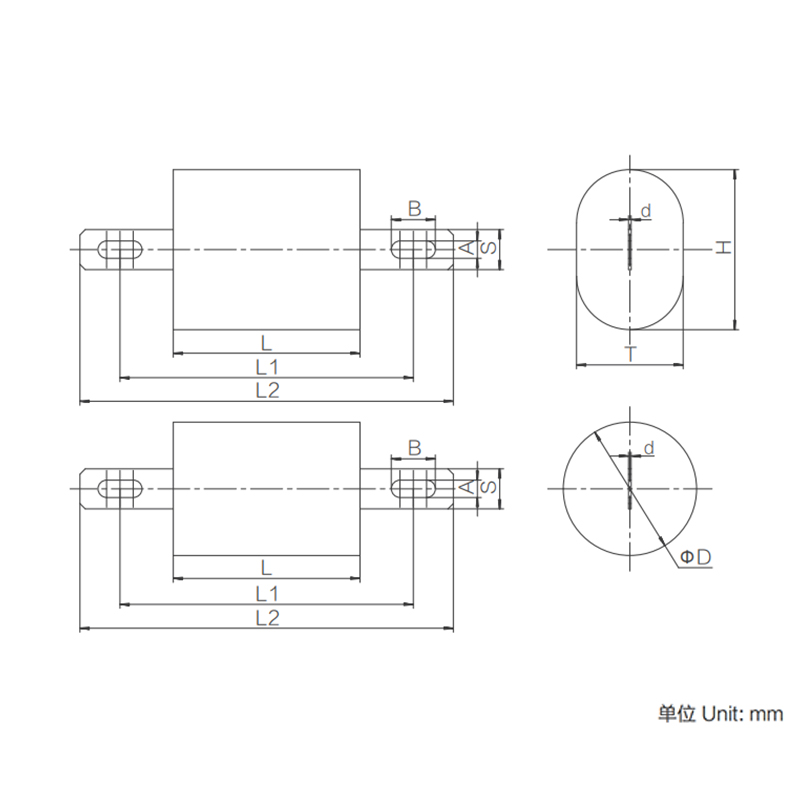

CN (μF) |
Flat shap | Cylinder shape | d (mm |
LS nH) |
dV/dt (V/μs) |
ESR @100kHz (mΩ) |
I max
(A)
|
note | ||||
H (mm) |
T
(mm)
|
L
(mm
|
D (mm) |
L (mm) |
||||||||
630Vdc(420Vac) | 1 | 23.3 | 15.5 | 39 | 18 | 39 | 1 | 20 | 600 | 4.5 | 9.5 | |
1.5 | 27.3 | 19.5 | 39 | 21.5 | 39 | 1.2 | 20 | 600 | 4.3 | 12 | ||
2.2 | 31.9 | 24 | 39 | 25.5 | 39 | 1.2 | 22 | 600 | 4 | 14 | ||
3.3 | 38.4 | 29 | 39 | 31 | 39 | 1.2 | 24 | 600 | 4 | 14/20 | ||
1 | 21.8 | 15.5 | 44 | 17 | 44 | 1 | 21 | 475 | 5 | 10 | ||
1.5 | 25.9 | 18 | 44 | 20.5 | 44 | 1.2 | 21 | 475 | 4.5 | 12 | ||
2.2 | 30.3 | 22.5 | 44 | 24 | 44 | 1.2 | 23 | 475 | 4 | 14/15 | ||
3.3 | 36.5 | 27 | 44 | 29 | 44 | 1.2 | 25 | 475 | 4 | 14/18 | ||
3.3 | 31.9 | 24 | 54 | 26 | 54 | 1.2 | 26 | 350 | 4 | 14/15 | ||
4.7 | 37.9 | 28.5 | 54 | 30.5 | 54 | 1.2 | 28 | 350 | 3.5 | 14/19 | ||
6.8 | 44.5 | 33.5 | 54 | 36 | 54 | 1.2 | 31 | 350 | 3.5 | 14/25 | ||
3.3 | 30.4 | 22.5 | 58 | 24.5 | 58 | 1.2 | 27 | 300 | 4.5 | 14/15 | ||
4.7 | 35.9 | 26.5 | 58 | 29 | 58 | 1.2 | 29 | 300 | 3.8 | 14/18 | ||
6.8 | 42.4 | 31.5 | 58 | 34 | 58 | 1.2 | 31 | 300 | 3.5 | 14/23 | ||
10 | 49.9 | 39 | 58 | 41 | 58 | 1.2 | 34 | 300 | 3.5 | 14/28 | ||
850Vdc(450Vac) | 0.47 | 20.1 | 12.5 | 34 | 17 | 34 | 1 | 17 | 900 | 5.5 | 7.8 | |
0.68 | 22.7 | 15 | 34 | 20 | 34 | 1 | 18 | 900 | 4.5 | 9.9 | ||
1 | 26.6 | 19 | 34 | 23.5 | 34 | 1.2 | 19 | 900 | 4 | 12.9 | ||
0.47 | 17.5 | 11.5 | 39 | 15.5 | 39 | 1.2 | 19 | 750 | 6 | 7.5 | ||
0.68 | 21.2 | 13.5 | 39 | 18 | 39 | 1.2 | 19 | 750 | 5 | 8.9 | ||
1 | 24.6 | 17 | 39 | 21.5 | 39 | 1.2 | 20 | 750 | 4.5 | 11.5 | ||
1.5 | 28.6 | 21 | 39 | 26 | 39 | 1.2 | 22 | 7S0 | 4 | 14 | ||
2.2 | 34.3 | 25 | 39 | 30.5 | 39 | 1.2 | 24 | 750 | 4 | 14/20 | ||
0.68 | 20.1 | 12.5 | 44 | 17 | 44 | 1 | 21 | 600 | 5.5 | 9.5 | ||
1 | 23.1 | 15.5 | 44 | 20 | 44 | 1 | 22 | 600 | 4.5 | 11.5 | ||
1.5 | 27.1 | 19.5 | 44 | 24 | 44 | 1.2 | 22 | 600 | 4 | 14 | ||
2.2 | 32.2 | 23 | 44 | 28.5 | 44 | 1.2 | 24 | 600 | 4 | 14/18 | ||
22 | 28.1 | 20.5 | 54 | 25.5 | 54 | 1.2 | 26 | 460 | 4.5 | 14 | ||
3.3 | 34.3 | 25 | 54 | 30.5 | 54 | 1.2 | 28 | 460 | 4 | 14/19 | ||
4.7 | 40.3 | 29.5 | 54 | 36 | 54 | 1.2 | 31 | 460 | 4 | 14/24 | ||
2.2 | 27.1 | 19.5 | 58 | 24 | 58 | 1.2 | 27 | 375 | 4.3 | 14 | ||
3.3 | 32.7 | 2B.5 | 58 | 29 | 58 | 1.2 | 29 | 375 | 4 | 14/17 | ||
4.7 | 38.3 | 27.5 | 58 | 34 | 5S | 1.2 | 31 | 375 | 4 | 14/21 | ||
6.8 | 44.8 | 34 | 58 | 40.5 | 58 | 1.2 | 34 | 375 | 4 | 14/26 | ||
1000Vdc(500Vac) | 0.47 | 20.1 | 12.5 | 39 | 17 | 39 | 1 | 19 | 850 | 5.5 | 8.8 | |
0.68 | 22.6 | 15 | 39 | 20 | 39 | 1 | 20 | 850 | 4.5 | 11.1 | ||
1 | 26.6 | 19 | 39 | 23.5 | 39 | 1.2 | 21 | 850 | 4 | 14 | ||
1.5 | 31.8 | 22.5 | 39 | 28 | 39 | 1.2 | 23 | 850 | 4 | 14/18 | ||
0.47 | 18.6 | 11 | 44 | 16 | 44 | 1 | 21 | 780 | 6 | 92 | ||
0.68 | 212 | 13.5 | 44 | 18.5 | 44 | 1 | 21 | 780 | 5 | 10.1 | ||
1 | 24.6 | 17 | 44 | 21.5 | 44 | 1.2 | 22 | 780 | 4 | 12.8 | ||
1.5 | 29.8 | 20.5 | 44 | 26 | 44 | 1.2 | 23 | 780 | 4 | 14/16 | ||
1.5 | 25.8 | 20.5 | 54 | 23 | 54 | 1.2 | 25 | 500 | 4.5 | 14 | ||
2.2 | 31.2 | 22 | 54 | 27.5 | 54 | 1.2 | 27 | 500 | 4 | 14/16 | ||
3.3 | 37.3 | 26.5 | 54 | 33 | 54 | 1.2 | 29 | 500 | 4 | 14/21 | ||
L5 | 25.2 | 17.5 | 58 | 22 | 58 | 1.2 | 26 | 425 | 5 | 14 | ||
2.2 | 29.7 | 20.5 | 58 | 26.5 | 58 | 1.2 | 28 | 425 | 4 | 14/15 | ||
3.3 | 35.8 | 25 | 58 | 31.5 | 58 | 1.2 | 30 | 425 | 4 | 14/20 | ||
4.7 | 41.3 | 30.5 | 58 | 37.5 | 58 | 1.2 | 32 | 425 | 4 | 14/22 | ||
1200Vdc(600Vac) | 0.33 | 21.4 | 13.5 | 39 | 16.5 | 39 | 1 | 19 | 1050 | 6.5 | 7.7 | |
0.47 | 24.3 | 16.5 | 39 | 19 | 39 | 1 | 19 | 1050 | 5 | 10.5 | ||
0.68 | 27.8 | 20 | 39 | 22 | 39 | 1.2 | 20 | 1050 | 4.5 | 12.1 | ||
1 | 33.24 | 24 | 39 | 26.5 | 39 | 1.2 | 22 | 1050 | 4 | 14/15 | ||
0.33 | 19.2 | 13 | 44 | 15 | 44 | 0.8 | 21 | 1000 | 6.7 | 9 | ||
0.47 | 22.8 | 15 | 44 | 17.5 | 44 | 1 | 21 | 1000 | 5.5 | 9.8 | ||
0.68 | 26.4 | 18.5 | 44 | 20.5 | 44 | 1.2 | 21 | 1000 | 5 | 11.7 | ||
1 | 31 | 21.5 | 44 | 24.5 | 44 | 1.2 | 22 | 1000 | 4.5 | 14 | ||
1.5 | 37.5 | 26.5 | 44 | 29.5 | 44 | 1.2 | 25 | 1000 | 4 | 14/18 | ||
1.5 | 33.4 | 24 | 54 | 26.5 | 54 | 1.2 | 27 | 700 | 4.5 | 14/15 | ||
2.2 | 39.5 | 28.5 | 54 | 31.5 | 54 | 1.2 | 30 | 700 | 4 | 14/19 | ||
3.3 | 48.1 | 34 | 54 | 38 | 54 | 1.2 | 32 | 700 | 4 | 14/22 | ||
1.5 | 31.4 | 22 | 58 | 24.5 | 58 | 1.2 | 28 | 600 | 4 | 14 | ||
2.2 | 37 | 26 | 58 | 29 | 58 | 1.2 | 29 | 600 | 4 | 14/18 | ||
3.3 | 44.6 | 32 | 58 | 35 | 58 | 1.2 | 32 | 600 | 4 | 14/21 | ||
1600Vdc(650Vac) | 0.22 | 22.1 | 14.5 | 39 | 19 | 39 | 1 | 20 | 1650 | 7.6 | 9.5 | |
0.33 | 25.7 | 18 | 39 | 23 | 39 | 1.2 | 20 | 1650 | 52 | 12.4 | ||
0.47 | 30.2 | 21 | 39 | 27 | 39 | 1.2 | 22 | 1650 | 4.5 | 14 | ||
0.68 | 36.4 | 25.5 | 39 | 31.5 | 39 | 1.2 | 24 | 1650 | 4 | 14/17 | ||
0.22 | 20.7 | 13 | 44 | 17.5 | 44 | 1 | 21 | 1400 | 9.5 | 8.6 | ||
0.33 | 24.2 | 16.5 | 44 | 21 | 44 | 1.2 | 21 | 1400 | 6.5 | 11 | ||
0.47 | 27.7 | 20 | 44 | 24.5 | 44 | 1.2 | 22 | 1400 | 5 | 13.2 | ||
0.68 | 32.8 | 23.5 | 44 | 29 | 44 | 1.2 | 24 | 1400 | 4.5 | 14/16 | ||
1 | 43.1 | 24.5 | 44 | 34.5 | 44 | 1.2 | 27 | 1400 | 4 | 14/18 | ||
1.5 | 49.3 | 31.5 | 44 | 42 | 44 | 1.2 | 31 | 1400 | 4 | 14/21 | ||
1 | 33.7 | 24.5 | 54 | 30 | 54 | 1.2 | 28 | 1000 | 4.5 | 14/16 | ||
1.5 | 41.3 | 29 | 54 | 36 | 54 | 1.2 | 31 | 1000 | 4 | 14/20 | ||
2.2 | 48.9 | 35 | 54 | 43 | 54 | 1.2 | 3S | 1000 | 4 | 14/22 | ||
1 | 32.2 | 23 | 58 | 28.5 | 58 | 1.2 | 30 | 780 | 5 | 14/16 | ||
1.5 | 41 | 25.5 | 58 | 34.5 | 58 | 1.2 | 31 | 780 | 4.2 | 14/19 | ||
2.2 | 49.1 | 30.5 | 58 | 41 | 58 | 1.2 | 35 | 780 | 4 | 14/22 | ||
2000Vdc(700Vac) | 0.047 | 15.1 | 9 | 34 | 12 | 34 | 0.8 | 17 | 2100 | 22.5 | 5.1 | |
0.068 | 16.6 | 10.5 | 34 | 14 | 34 | 0.8 | 17 | 2100 | 16 | 6.7 | ||
0.1 | 20.2 | 12.5 | 34 | 16 | 34 | 1 | 17 | 2100 | 11.1 | 8.4 | ||
0.15 | 23.2 | 15.5 | 34 | 19 | 34 | 1 | 18 | 2100 | 7.6 | 10.1 | ||
0.22 | 26.7 | 19 | 34 | 22.5 | 34 | 1.2 | 19 | 2100 | 5.5 | 11 | ||
0.068 | 15.6 | 9.5 | 39 | 13 | 39 | 0.5 | 19 | 1850 | 20.6 | 5.8 | ||
0.1 | 17.6 | 11.5 | 39 | 15 | 39 | 0.8 | 19 | 1850 | 14.3 | 6.8 | ||
0.15 | 21.1 | 13.5 | 39 | 17.2 | 39 | 1 | 19 | 1850 | 9.8 | 8.5 | ||
0.22 | 24.6 | 17 | 39 | 20.2 | 39 | 1.2 | 19 | 1850 | 6.8 | 10.7 | ||
0.33 | 28.6 | 21 | 39 | 24.5 | 39 | 1.2 | 21 | 1850 | 4.6 | 14 | ||
0.47 | 33.7 | 24.5 | 39 | 28.5 | 39 | 1.2 | 23 | 1850 | 4 | 14 | ||
0.1 | 16.6 | 10.5 | 44 | 14 | 44 | 1 | 21 | 1650 | 18 | 6.4 | ||
0.15 | 20.2 | 12.5 | 44 | 16 | 44 | 1 | 20 | 1650 | 12.3 | 8.9 | ||
0.22 | 22.7 | 15 | 44 | 19 | 44 | 1 | 21 | 1650 | 8.5 | 10.1 | ||
0.33 | 26.7 | 19 | 44 | 22.5 | 44 | 1.2 | 22 | 1650 | 5.8 | 13 | ||
0.47 | 31.7 | 22.5 | 44 | 26 | 44 | 1.2 | 23 | 1650 | 4.1 | 14 | ||
0.68 | 38.3 | 26 | 44 | 31.5 | 44 | 1.2 | 26 | 1650 | 4 | 14 | ||
0.68 | 32.3 | 23 | 54 | 27 | 54 | 1.2 | 27 | 1200 | 4.5 | 14 | ||
1 | 38.3 | 27.5 | S4 | 32 | 54 | 1.2 | 29 | 1200 | 4.3 | 14 | ||
0.68 | 30.7 | 21.5 | 58 | 27 | 58 | 1.2 | 28 | 850 | 5 | 14 | ||
1 | 38.4 | 24.5 | 58 | 32.5 | 58 | 1.2 | 30 | 850 | 4.5 | 14 | ||
1.5 | 45.5 | 30 | 58 | 39 | 58 | 1.2 | 34 | 850 | 4 | 14 | ||
2500Vdc(725Vac) | 0.047 | 17.6 | 11.5 | 34 | 15.5 | 34 | 1 | 17 | 2600 | 18.3 | 5.3 | |
0.068 | 20.6 | 13 | 34 | 17.5 | 34 | 1 | 18 | 2600 | 13 | 7 | ||
0.1 | 23.6 | 16 | 34 | 20.5 | 34 | 1.2 | 18 | 2600 | 9 | 8.6 | ||
0.15 | 27.6 | 20 | 34 | 24.5 | 34 | 1.2 | 20 | 2600 | 6.1 | 10.5 | ||
0.1 | 21.7 | 14 | 39 | 19 | 39 | 1 | 120 | 2100 | 11.7 | 7.1 | ||
0.15 | 25.2 | 17.5 | 39 | 22.5 | 39 | 1.2 | 20 | 2100 | 8 | 7.5 | ||
0.22 | 30.2 | 21 | 39 | 26.5 | 39 | 1.2 | 22 | 2100 | 5.6 | 11 | ||
0.33 | 36.2 | 25.5 | 39 | 32 | 39 | 1.2 | 25 | 2100 | 4 | 14 | ||
0.47 | 42.4 | 30 | 39 | 37.5 | 39 | 1.2 | 28 | 2100 | 4 | 14 | ||
0.1 | 20.6 | 13 | 44 | 17.5 | 44 | 1 | 21 | 1950 | 14.9 | 6.8 | ||
0.15 | 23.6 | 16 | 44 | 20.5 | 44 | 1.2 | 21 | 1950 | 10.1 | 9.2 | ||
0.22 | 27.1 | 19.5 | 44 | 24.5 | 44 | 1.2 | 22 | 1950 | 7 | 10.4 | ||
0.33 | 32.8 | 23.5 | 44 | 29.5 | 44 | 1.2 | 25 | 1950 | 4.8 | 14 | ||
0.47 | 28.8 | 28 | 44 | 34.5 | 44 | 1.2 | 27 | 1950 | 4 | 14 | ||
0.68 | 46.7 | 33 | 44 | 41 | 44 | 1.2 | 31 | 1950 | 4 | 14 | ||
0.33 | 28.2 | 20.5 | 54 | 25.5 | 54 | 1.2 | 27 | 1450 | 6.9 | 11.7 | ||
0.47 | 33.3 | 24 | 54 | 29.5 | 54 | 1.2 | 28 | 145 | 4.9 | 14 | ||
0.68 | 39.3 | 28.5 | 54 | 35 | 54 | 1.2 | 31 | 1450 | 4 | 14 | ||
0.33 | 27.1 | 19.5 | 58 | 24 | 58 | 1.2 | 27 | 925 | 8.5 | 10.6 | ||
0.47 | 31.7 | 22.5 | 58 | 28.5 | 58 | 1.2 | 29 | 925 | 6 | 13.2 | ||
0.68 | 37.6 | 27 | 58 | 33.5 | 58 | 1.2 | 31 | 925 | 4.2 | 14 | ||
1 | 46 | 32 | 58 | 40 | 58 | 1.2 | 34 | 925 | 4 | 14 | ||
3000Vdc(750Vac) | 0.047 | 19.6 | 12 | 39 | 16.5 | 39 | 1 | 19 | 2500 | 20.8 | 4.5 | |
0.068 | 22.1 | 14.5 | 39 | 19 | 39 | 1 | 20 | 2500 | 14.7 | 6 | ||
0.1 | 25.2 | 17.5 | 39 | 22.5 | 39 | 1.2 | 20 | 2500 | 10.2 | 7.5 | ||
0.15 | 30.2 | 21 | 39 | 26.5 | 39 | 1.2 | 22 | 2500 | 7 | 9.3 | ||
0.22 | 35.8 | 25 | 39 | 31.5 | 39 | 1.2 | 24 | 2500 | 4.9 | 12.3 | ||
0.047 | 18.1 | 10.5 | 44 | 15.5 | 44 | 1 | 20 | 2100 | 26.7 | 5.1 | ||
0.068 | 20.7 | 13 | 44 | 17.5 | 44 | 1 | 21 | 2100 | 18.8 | 6.3 | ||
0.1 | 23.6 | 16 | 44 | 20.5 | 44 | 1.2 | 21 | 2100 | 13.1 | 7.9 | ||
0.15 | 27.1 | 19.5 | 44 | 24.5 | 44 | 1.2 | 22 | 2100 | 8.9 | 10.2 | ||
0.22 | 32.8 | 23.5 | 44 | 29 | 44 | 1.2 | 24 | 2100 | 6.1 | 13.2 | ||
0.22 | 28.2 | 20.5 | 54 | 25 | 54 | 1.2 | 26 | 1650 | 9 | 11 | ||
0.33 | 33.7 | 24.5 | 54 | 30 | 54 | 1.2 | 28 | 1650 | 6.1 | 14 | ||
0.47 | 40.4 | 28 | 54 | 35 | 54 | 1.2 | 31 | 1650 | 4.4 | 14 | ||
0.22 | 26.6 | 19 | 58 | 24 | 58 | 1.2 | 27 | 1275 | 11.1 | 11 | ||
0.33 | 32.3 | 23 | 58 | 28.5 | 58 | 1.2 | 29 | 1275 | 7.5 | 14 | ||
0.47 | 37.8 | 27 | 58 | 33.5 | 58 | 1.2 | 31 | 1275 | 5.4 | 14 |
