WSB series Snubber/Resonat Capacitor (Boxed)

Features:
Plastic packaging, Sealed with epoxy resin
Copper nut lead, convenient installation
Noninductive structure, ESL low, ESR small, high pulse current, high DV/DT bearing capacity, high pressure, low loss, low temperature rise, long life and so on
Contact Us PDF Download

Share:

PREV：WSA Axial-Type IGBT Snubber CapacitorNEXT：WST series Snubber/Resonat Capacitor (Axial-Type)
Typical Applications:
Widely used in power electronic devices in series/parallel resonant circuit
Widely used in welding, power supplies, induction heating equipment resonance occasions

Specifications

Implemented Standard GB/T 3984、IEC60110
Climatic Category 40/85/21
Rated Voltage 1200V.DC~2000V.DC
Capacitance Range 1μF～8μF
Capacitance Tolerance ±5%（J），±10%（K）
Voltage Test Between Terminals 1.5Un（VDC）/60S
Insulation resistance ≥5000S （100VDC，60S at 20℃）

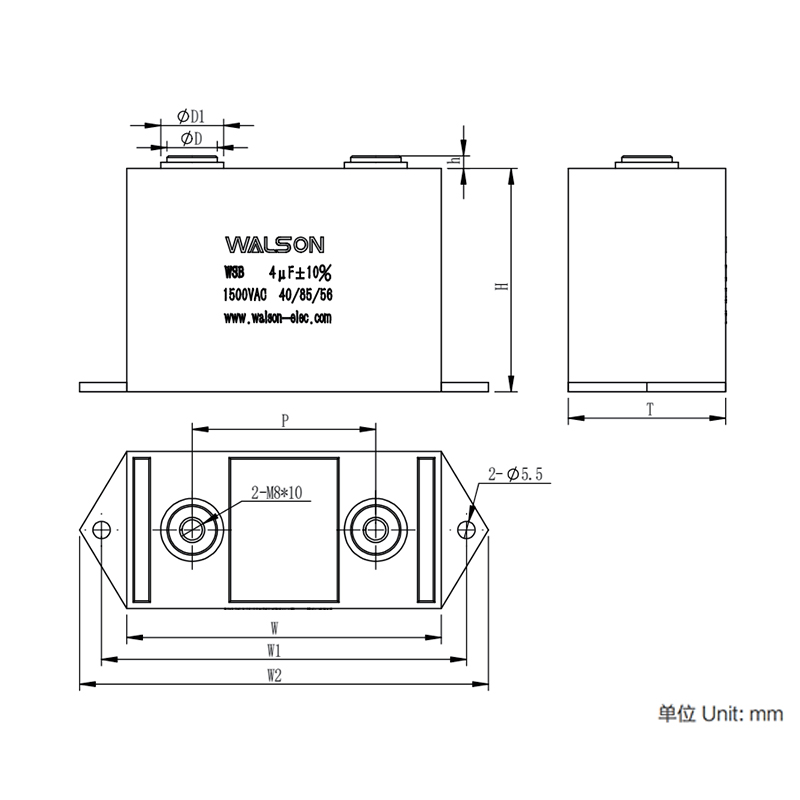

Dimensions(mm)

CN
(μF)

Dimension (mm)
ESR
(mΩ)

ESL

(nH)

DV/DT

(V/μs)

 Ipk

(A)

Imax(A)

@40℃
ΦD
 H

Un1200V.DC Urms 500V.AC Up 700V

2

63

50

9.6

21

500

1000

30

3

63

50

6.4

22

500

1500

35

4

63

50

4.8

22

400

1600

45

5

63

50

3.8

23

500

1500

50

6

76

50

3.2

25

350

2100

60

7

76

50

2.7

25

300

2100

65

Un 1600V.DC Urms 600V.AC Up 850V

2

63

50

9.6

21

700

1400

30

3

63

50

6.4

22

600

1800

35

4

63

50

4.8

22

550

2200

45

5

76

50

3.8

23

500

2500

55

6

76

50

3.2

25

450

2700

65

Un 2000V.DC Urms 700V.AC Up990V

2

63

50

9.6

21

800

1600

50

3

63

50

6.4

22

700

2100

55

4

76

50

4.8

22

600

2400

65
Click to view
