WST series Snubber/Resonat Capacitor (Axial-Type)

Features:

Sealed with mylar tape and flame retardant epoxy rin

Tin-plated copper wire lead, convenient installation

Noninductive structure, ESL low, ESR small, high pulse current, high DV/DT bearing capacity, high pressure, low loss, low temperature rise, long life and so on

PREV：WSB series Snubber/Resonat Capacitor (Boxed)NEXT：WSL series Snubber Capacitor for IGBT (Lug Terminals)

Typical Applications:

GTO Snubber

Widely used in power electronic equipment when the peak voltage, peak current absorption protection

Specifications

Implemented Standard	GB/T 17702、IEC61071
Climatic Category	40/85/21
Rated Voltage	1200V.DC~8000V.DC
Capacitance Range	0.068μF～3μF
Capacitance Tolerance	±5%（J），±10%（K）
Voltage Test Between Terminals	1.5U_n /10S
Insulation resistance	≥5000s（100 V，1 min，20℃）

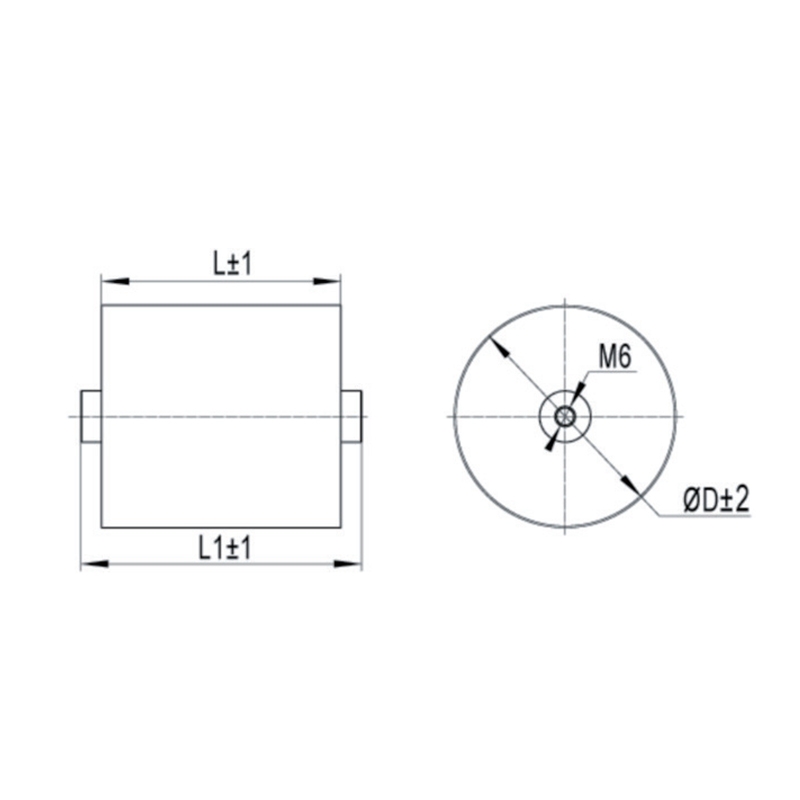

Dimensions(mm)

CN (μF)	Dimension (mm)			ESL (nH)	DV/DT (V/μs)	(A)	I_max @40℃ 10kHz (A)
CN (μF)	ΦD	L	L1	ESL (nH)	DV/DT (V/μs)	(A)	I_max @40℃ 10kHz (A)
Un=3000 V.DC
0.22	35	44	52	25	1100	242	30
0.33	43	44	52	25	1000	330	35
0.47	51	44	52	22	850	399	45
0.68	61	44	52	22	800	544	55
1	74	44	52	20	700	700	65
1.2	80	44	52	20	650	780	75
Un=6000 V.DC
0.22	43	60	72	25	1500	330	35
0.33	52	60	72	25	1200	396	45
0.47	62	60	72	25	1000	470	50
0.68	74	60	72	22	900	612	60
1	90	60	72	22	800	900	75
Un=7000 V.DC
0.22	45	57	72	25	1100	242	30
0.68	36	80	92	28	1000	680	25
1	43	80	92	28	850	850	30
1.5	52	80	92	25	800	1200	35
1.8	57	80	92	25	700	1260	40
2	60	80	92	23	650	1300	45
3	73	80	92	22	500	1500	50
Un=8000 V.DC
0.33	35	90	102	30	1100	363	25
0.47	41	90	102	28	1000	470	30
0.68	49	90	102	28	850	578	35
1	60	90	102	25	800	800	40
1.5	72	90	102	25	700	1050	45
2	83	90	102	25	650	1300	50
