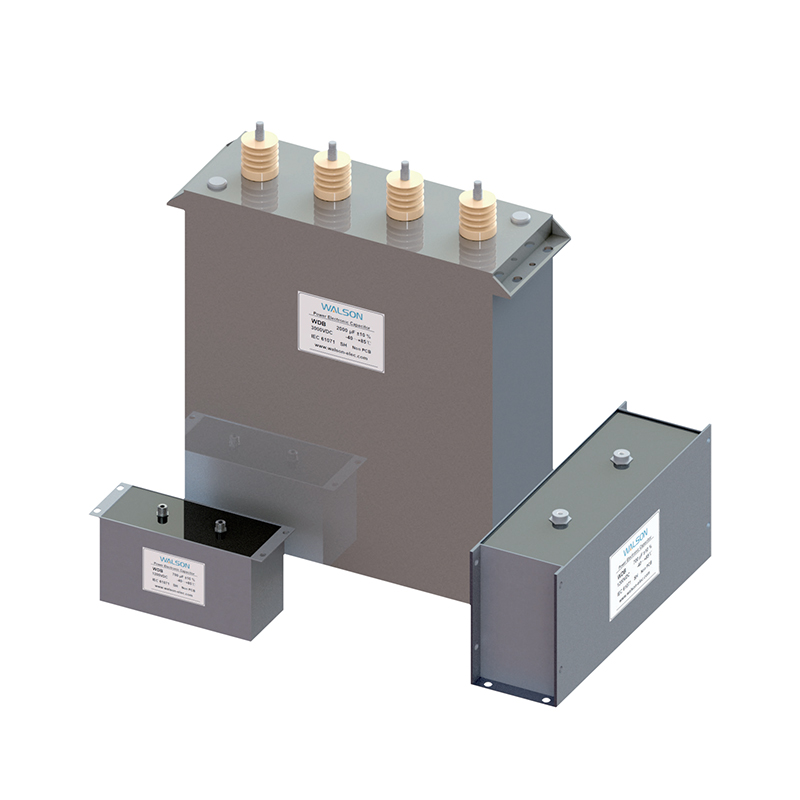

WDB series Dry Type DC-Link Capacitor for Power Electronics (Steel Case)

Features:
Metal enclosure package
This leads to the form of diverse choices
High capacitance, small size
Large ripple current, high DV/DT bearing capacity
Contact Us PDF Download

Share:

PREV：WDV series DC-Link Capacitor for EVNEXT：WDF series DC-Link Capacitor (Dry-Type, Aluminum Case)
Typical Applications:
Widely used in DC-LINK circuits for filtering energy storage
Can replace electrolytic capacitors, better performance, and longer life
Wind power, photovoltaic power inverter: electric vehicles and hybrid vehicles; SVG, welding equipment, power supplies, and induction heating equipment

Specifications

Implemented Standard IEC61071、IEC61881
Climatic Category 40/85/56
Rated Voltage 450V.DC~6000V.DC
Capacitance Range 30μF～20000μF
Capacitance Tolerance ±5%（J），±10%（K）
Voltage Test Between Terminals 1.5Un（VDC）/10S
Voltage test between terminals and case 1000+2×Un/√2V.AC 60S
Insulation resistance ≥10000 s （100V，1min，20℃）

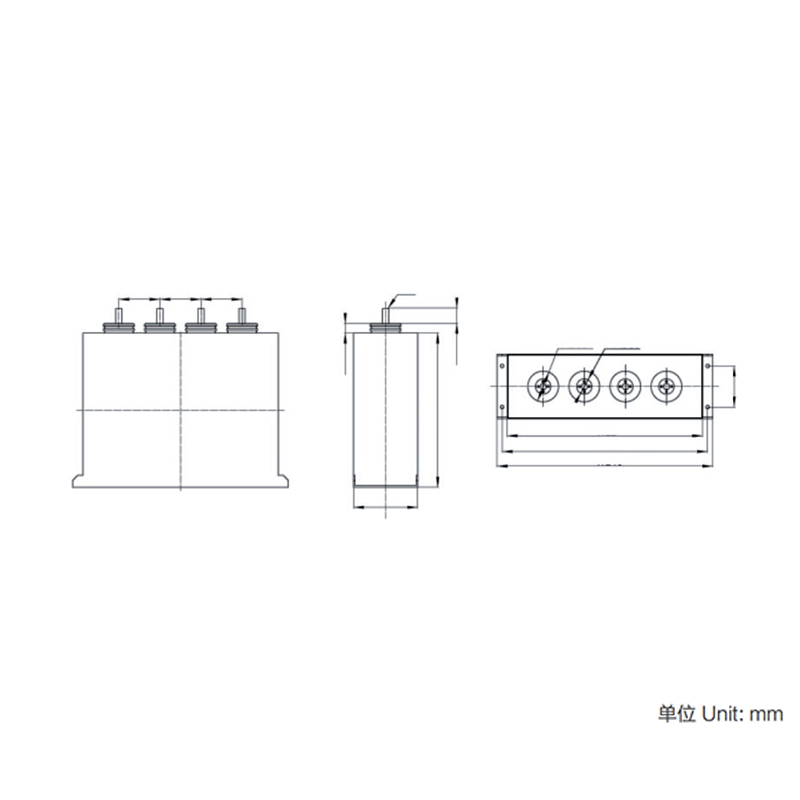

Dimensions(mm)


Resonant power supply DC filter		 Un
(V.DC)		 CN
(μF)		 ESR
(mΩ)		 DV/DT
(V/μs)
Irms(A)
@40℃
 (mm) P
(mm)
800 30 ≤2.5 50 50A 95×74×30 28~30
800 45 ≤2.5 50 50A 95×74×45 28~30
800 50 ≤2.5 50 50A 95×74×45 28~30
SVG/SVC DC filter 1200 700 ≤1.2 12 85A 240×88×120 80
1200 900 ≤1.0 12 85A 240×88×120 80
DC-LINK DC filter 2000 800 ≤1.2 12 120A 340×125×190 80
2000 4000 ≤0.8 10 280A 420×235×360 80
3000 660 ≤1.0 12 150A 420×235×175 80
3000 1250 ≤0.8 10 200A 420×235×360 80
Click to view
