AC filter capacitors for PCB: How to effectively reduce harmonic losses and improve the energy efficiency of power systems?

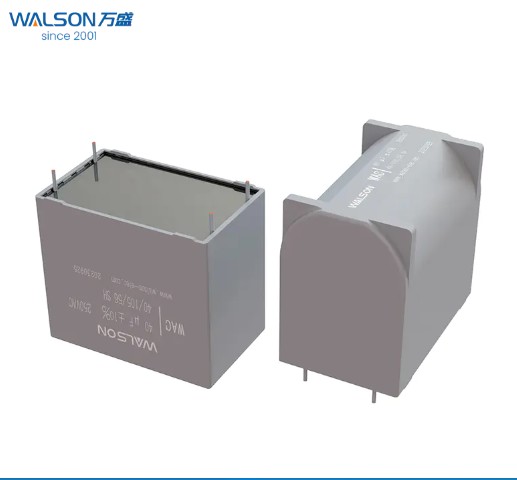

AC Filter Capacitor for PCB

Harmonics, as current or voltage components with frequencies higher than the fundamental frequency in power systems, are mainly generated by nonlinear loads (such as rectifiers, inverters, frequency converters and other power electronic devices). These nonlinear loads convert DC to AC, or vice versa, during operation, thereby generating harmonics in the power grid. The presence of harmonics has many effects on the power system:
Increase transformer losses: When harmonic currents pass through transformers, additional magnetic flux is generated in the iron core, resulting in increased iron losses. At the same time, harmonic currents also generate additional resistance losses, i.e. copper losses, in the windings. These losses not only reduce the efficiency of the transformer, but may also accelerate its aging and shorten its service life.
Cause equipment failures: Harmonic currents can cause overheating of power equipment (such as capacitors, motors, etc.), causing insulation aging, winding short circuits and other faults. In addition, harmonics may also cause grid voltage fluctuations and flickers, affecting the power quality of power users.
Interference with communication systems: Harmonic currents may also interfere with nearby communication systems through electromagnetic induction, resulting in a decline in communication quality or even communication interruption.

In the face of various problems caused by harmonics, AC filter capacitors have become an effective means of harmonic control with their unique filtering characteristics. The working principle of AC filter capacitors is based on their capacitance characteristics, that is, the impedance of capacitors to AC decreases with increasing frequency. Therefore, when harmonic currents flow through capacitors, since their frequency is much higher than the fundamental wave, the capacitors will present lower impedance, thereby effectively absorbing or bypassing these high-frequency components and reducing their interference with the power grid.

In power systems, AC filter capacitors are usually used in combination with inductive components (such as reactors) to form different types of filters (such as LC filters). These filters can accurately control the harmonic suppression effect within a specific frequency range, effectively filter out high-order harmonics in the power grid, and improve the quality of power.

Specific applications for reducing harmonic losses and improving energy efficiency
Reduction of transformer losses: By installing AC filter capacitors, the iron loss and copper loss of harmonic currents on transformers can be significantly reduced. The reduction of harmonic current means that the additional heat generated by the transformer during operation is reduced, thereby reducing the temperature rise of the transformer and extending its service life. At the same time, due to the reduction of harmonic losses, the efficiency of the transformer is improved, and the energy efficiency of the entire power system is also improved.
Reduced equipment failure rate: AC filter capacitors reduce the failure of power equipment caused by overheating, insulation aging and other reasons by suppressing harmonic currents. This not only reduces the maintenance cost of equipment, but also improves the stability and reliability of the power system.
Improved power grid quality: The reduction of harmonic current helps to improve the grid voltage waveform and reduce voltage fluctuations and flicker. This not only improves the power quality of power users, but also helps to protect other sensitive equipment in the power grid from harmonic interference.
Economic benefits of improved energy efficiency: By installing AC filter capacitors, the harmonic losses in the power system are significantly reduced, thereby improving the energy efficiency of the entire system. This not only helps to reduce energy waste and reduce electricity costs, but also brings significant economic benefits to power companies and users.

Although AC filter capacitors have shown significant advantages in reducing harmonic losses and improving the energy efficiency of power systems, their design and application also face some technical challenges:
Precise design of filters: In order to ensure the filtering effect, the filter needs to be precisely designed, including selecting appropriate capacitor and reactor parameters, optimizing the filter structure, etc. This requires designers to have deep knowledge of power electronics and rich practical experience.
Capacitor temperature resistance: In power systems, capacitors need to withstand high operating temperatures and voltage stresses. Therefore, it is necessary to select capacitor materials with high temperature resistance and good electrical properties to ensure their long-term stable operation.
Remote monitoring and intelligent adjustment of filters: With the development of smart grid technology, remote monitoring and intelligent adjustment of filters have become new demands. By integrating sensors and communication technologies, the operating status and filtering effect of the filter can be monitored in real time, and intelligent adjustment can be performed according to the needs of the power grid to further improve the filtering efficiency and energy efficiency.
