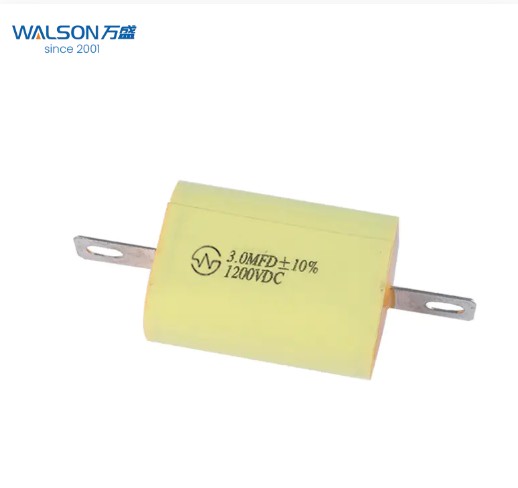

WSA axial IGBT snubber capacitor: How to become the guardian of stable operation of IGBT?

The primary reason why WSA axial IGBT snubber capacitor is unique in the field of IGBT protection is that it uses high-quality materials and sophisticated manufacturing processes. The core component inside the capacitor, the dielectric material, uses polypropylene film with high dielectric constant, low loss and good stability. This material not only has excellent insulation properties, but also maintains stable capacitance characteristics under high temperature and high voltage environments, providing a solid material foundation for the efficient operation of the capacitor.

At the same time, the electrode material of the capacitor has also been carefully selected. The application of double-sided metallized film not only improves the capacitance density and frequency response capability of the capacitor, but also ensures the stability and reliability of the capacitor under high-frequency and high-voltage pulse impact. In terms of manufacturing process, WSA axial IGBT snubber capacitor uses advanced winding, welding and packaging technology to ensure the tightness of the internal structure of the capacitor and the reliability of the external connection. These sophisticated manufacturing processes have laid a solid foundation for the efficient operation and long-term stability of the capacitor.

During the operation of IGBT, its switching action will generate rapidly changing voltage and current, and these changes will generate high-frequency and high-voltage pulses in the system. These pulses will not only increase the switching loss of IGBT and reduce its working efficiency, but may also cause abnormal phenomena such as overvoltage and overcurrent, and even cause damage to IGBT in severe cases. Therefore, how to effectively absorb and suppress these high-frequency and high-voltage pulses has become the key to improving the working stability and reliability of IGBT.

WSA axial IGBT snubber capacitor is designed for this challenge. It uses its excellent capacitance characteristics and high-frequency response capability to quickly absorb the high-frequency and high-voltage pulse energy generated by the switching action of IGBT and store it inside the capacitor. This process not only effectively reduces the switching loss of IGBT, but also reduces the impact and damage of pulses on IGBT. At the same time, the charge redistribution process inside the capacitor can also suppress the parasitic oscillation caused by bus parasitic inductance, further improving the working stability and reliability of IGBT.

In power electronic systems, bus parasitic inductance is one of the main reasons for parasitic oscillation. Parasitic oscillation not only increases the noise and loss of the system, but also may cause damage to power devices such as IGBT. Therefore, how to effectively suppress parasitic oscillation has become the key to improving the performance of power electronic systems.

WSA axial IGBT snubber capacitors perform well in suppressing parasitic oscillations. The charge redistribution process inside it can quickly balance the voltage across the capacitor, thereby effectively suppressing the parasitic oscillation caused by the busbar parasitic inductance. This process not only reduces the noise and loss of the system, but also improves the working stability and reliability of the IGBT. At the same time, the high-frequency response capability of the capacitor can also quickly respond to voltage and current changes in the system, further improving the overall performance of the power electronic system.

In power electronic systems, heat dissipation performance is one of the important factors affecting system stability and life. The WSA axial IGBT snubber capacitor is designed with full consideration of the need for heat dissipation performance. Its compact structure and small size make it easy to integrate and install in power electronic systems. At the same time, a special design is used inside the capacitor to effectively reduce the temperature rise of the capacitor and extend its service life. These designs not only improve the heat dissipation performance of the capacitor, but also reduce the maintenance cost and downtime of the system.

WSA axial IGBT snubber capacitors also have the characteristics of long life. Its high-quality materials and sophisticated manufacturing process ensure the stability and reliability of the capacitor during long-term use. Even under the impact of high-frequency and high-voltage pulses, the capacitor can maintain stable capacitance characteristics and good high-frequency response capabilities. This feature not only reduces the replacement frequency and maintenance costs of the system, but also improves the overall reliability and stability of the system.
