PQ Type Power Transformer Manufacturers

Home / Products / Inductor / PQ Type Power Transformer
PQ Type Power Transformer PQ Type Power Transformer PQ Type Power Transformer PQ Type Power Transformer

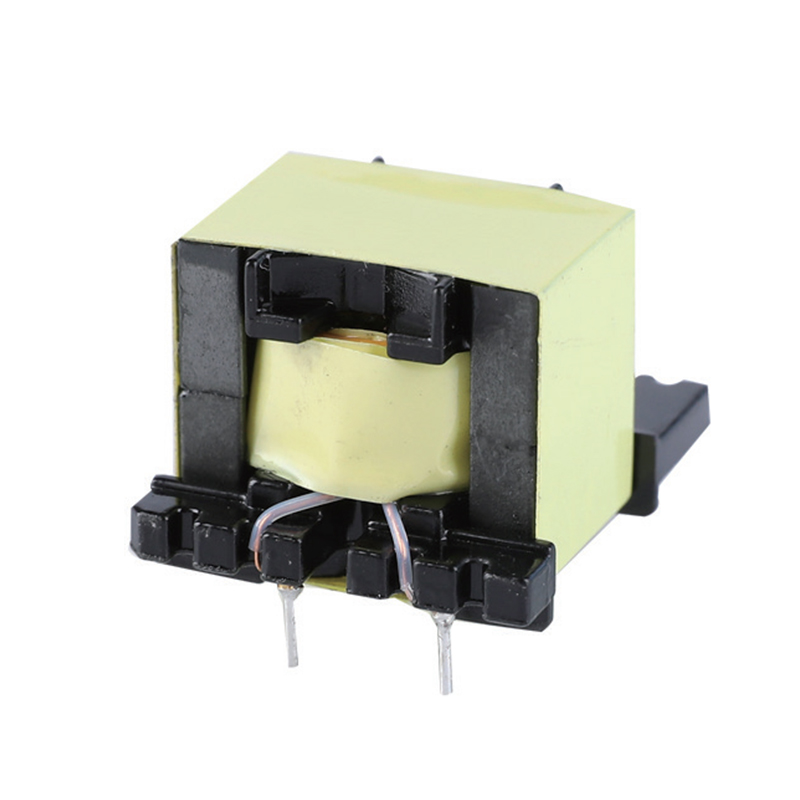

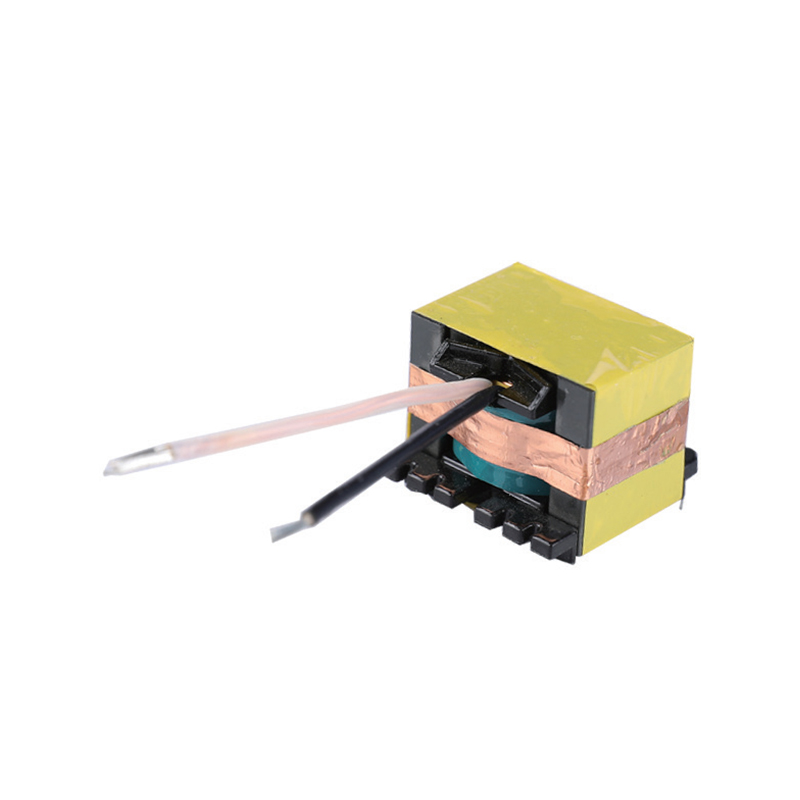

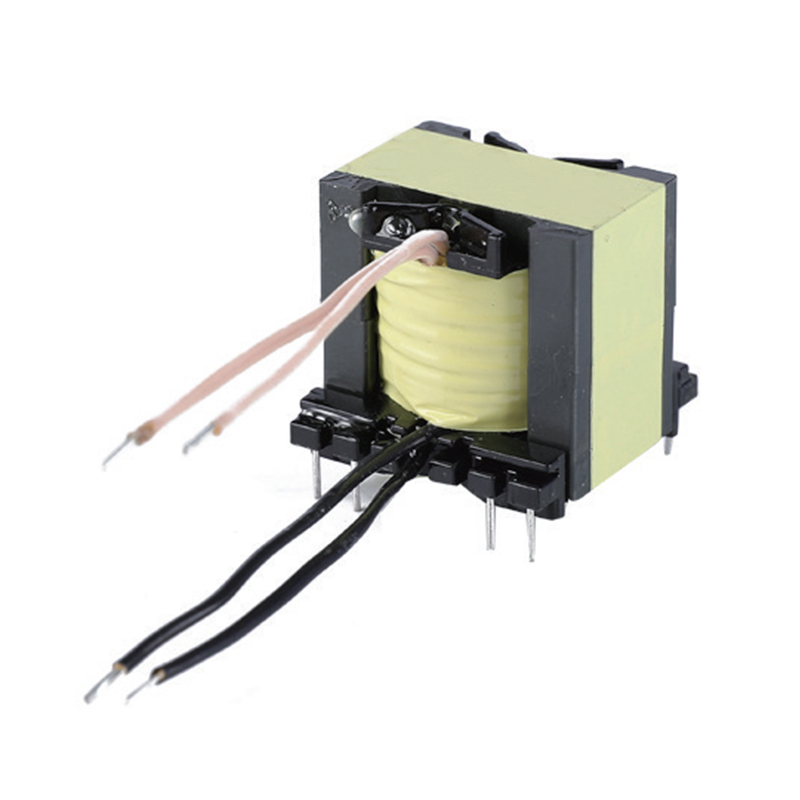

PQ Type Power Transformer

Features:
Operation Frequency from 1kHz to 10MHz
Operating Temperature: -20℃~+100℃
Can be designed to customer requirements
Can meet UL and VDE safety requirements
Typical Applications:
Designed for power solutions
Designed for solar inverter, power adapter, PC, LED power, networking etc.

Specifications

Dimensions(mm)

Type

Power Capacity (W)

Frequency (Hz)

Size  (L*W*H)(mm)

Forward

Flyback

PQ 20/16

70

45











1k-10M

24.0×25.0×19.0

PQ 20/20

90

65

24.0×24.6×26.0

PQ26/16

170

110

29.0×30.3×23.5

PQ 26/25

195

120

29.0×30.5×30.5

PQ30

225

150

33.5×49.0×14.5

PQ 32/20

230



33.5×35.0×22.0

PQ 32/25

300



34.5×36.0×26.5

PQ 32/30

330



34.5×35.0×34.0

PQ 35/35

450



36.5×40.5×50.0
