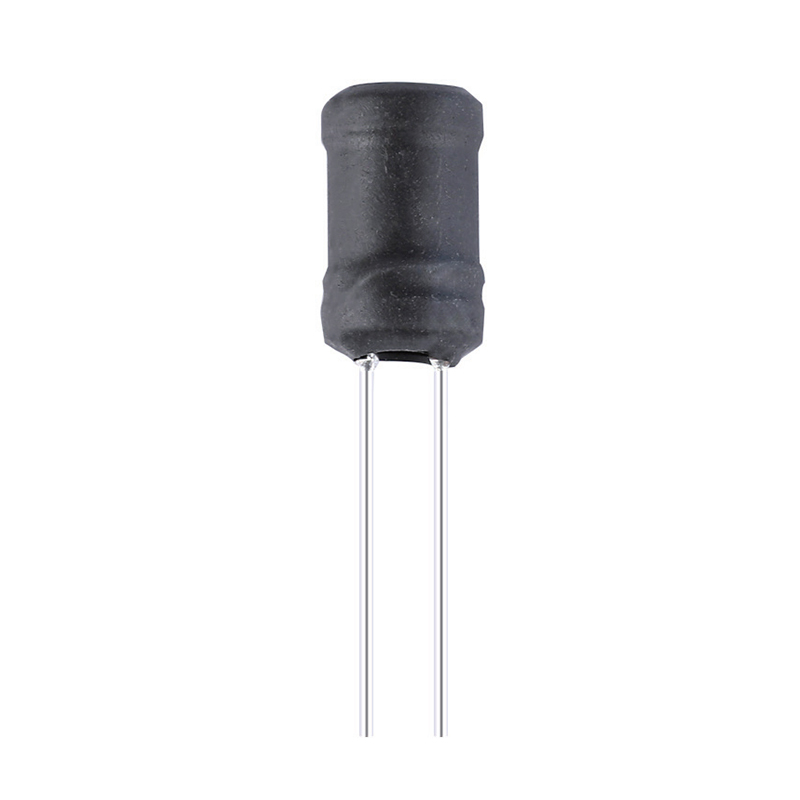

DR Choke Inductor-Tube

Features and Usage:
H-shaped inductor series is also known as: choke coil, differential mode inductors, filtersis used to limit the alternating current through the coil, lieh frequen
cy choke coil andlow frequency choke coil. Adopts open magnetic circuit structure design, good structural, small size, high Q value, noise reduction, low cost and other characteristics, suitable for notebook computer, ink-jet printers, photocopiers, display monitor, broadband modem, game consoles, color TV, VCR, camera, microwave oven, lighting equipment, automotive electronic products etc.
H-shaped inductor variety specification is complete, the quality is reliable, the resonance frequency is high, can obtain larger induced current, magnetic flux
leakage is small, the noise reduction effect is good wait for an advantage. Products comply with UL, ROHS, REACH and other safety and environmental requirements, no mention of the technical indicators, according to the national standard and the IEC standards, The specific feature can be designed as
customized requirements.
Contact Us PDF Download

Share:

PREV：DR Power Inductor-TubeNEXT：No next article

Specifications

Operating frequency 10kHz-200MHz
Operating temperature 40℃ ~ +105℃
Storage temperature 25℃ ~ +85℃
Humidity storage 30% ~ 95%

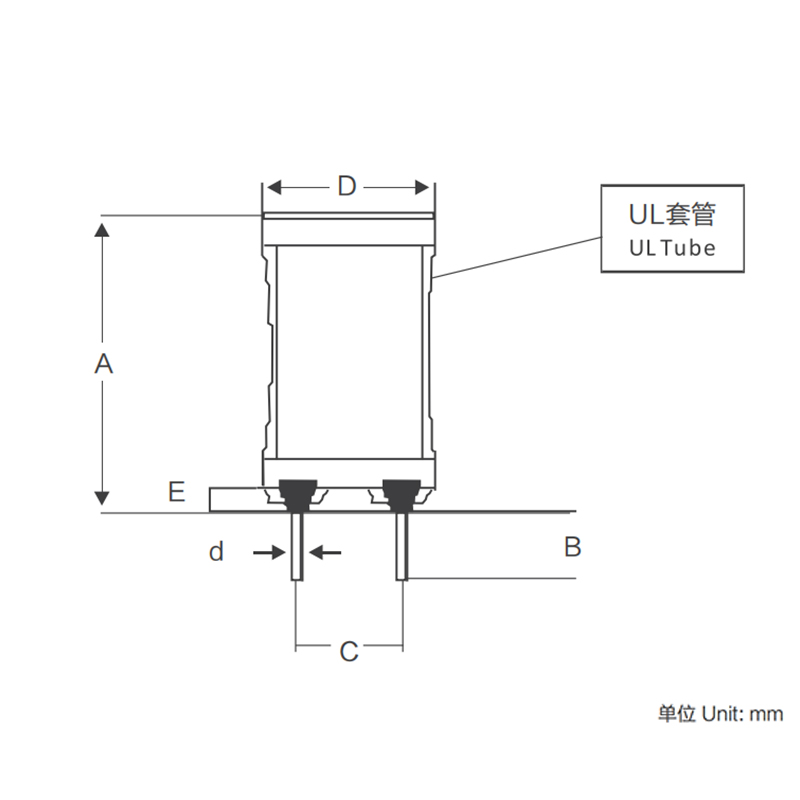

Dimensions(mm)

Specification

A

B

C

D

d

E

LGT-0406

7.5±0.5

3.5±0.5

2.3±0.3

5.0±0.5

0.5±0.1

Max2.0

LGT-0507

9.0±0.5

3.5±0.5

2.5±0.4

6.0±0.5

0.6±0.1

Max2.0

LGT-0608

9.5±0.5

3.5±0.5

3.0±0.4

6.5±0.5

0.6±0.1

Max2.0

LGT-0709

11.0±0.5

3.5±0.5

4.0±0.5

7.5±0.5

0.6±0.1

Max2.0

LGT-0810

12.5±0.5

3.5±0.5

5.0±0.5

9.0±0.5

0.6±0.1

Max2.0

LGT-1012

14.5±0.5

3.5±0.5

5.2±0.5

11.0±0.5

0.8±0.1

Max2.0

LGT-1014

16.5±0.5

3.5±0.5

6.5±0.5

11.0±0.5

0.8±0.1

Max2.0

LGT-1216

18.0±0.5

3.5±0.5

7.5±0.5

13.0±0.5

0.8±0.1

Max2.0

Description

The Bvalue (lead length)and C (pitch)can be designed as customized requirements.
