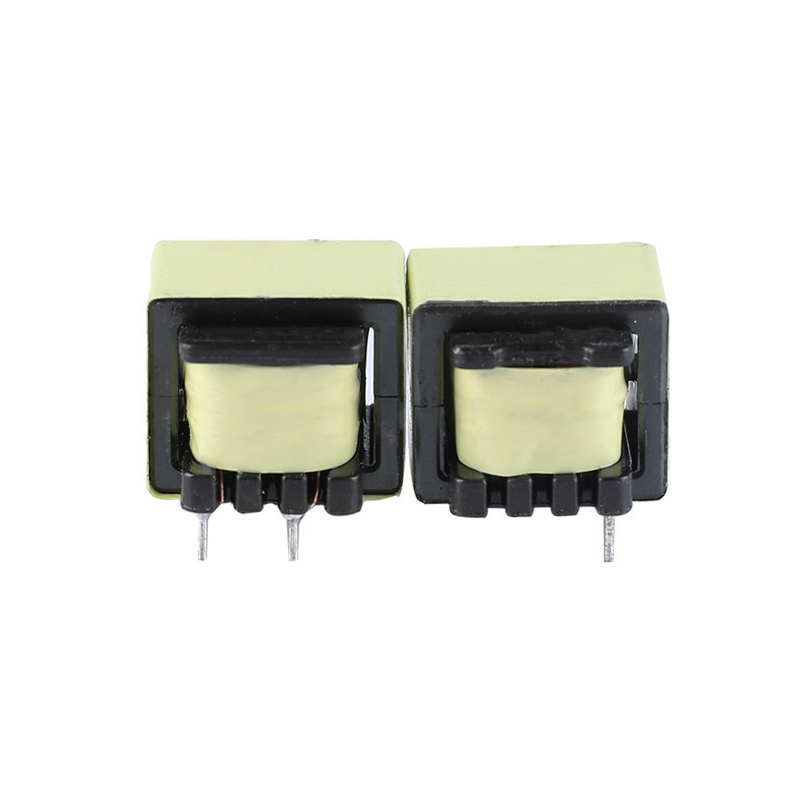

E-type High Frequency Transformer
Features:
Comply with UL94_V0 safety requirements
Comply with REACH and ROHS environmental protection requirements
Operating temperature range: -40~+105℃
Suitable for energy-saving lamps, LED lamps, driving power supplies, etc.
Share:
Typical Applications:
Widely used in all kinds of electronic equipment
Specifications
| Reference Standard | GB/T 14860.1（IEC61248-1） |
| Inductance Range | 0.010mH-10.0mH |
| （1KHz）Inductance Tolerance | ±5%（J）；±10%（K）；±20%（M） |
| （20℃±5℃）Insulation Resistance | 100MΩ MIN（100V, 1min） |
| （20℃±5℃）Voltage Proof | AC500V / 5mA, 1S |

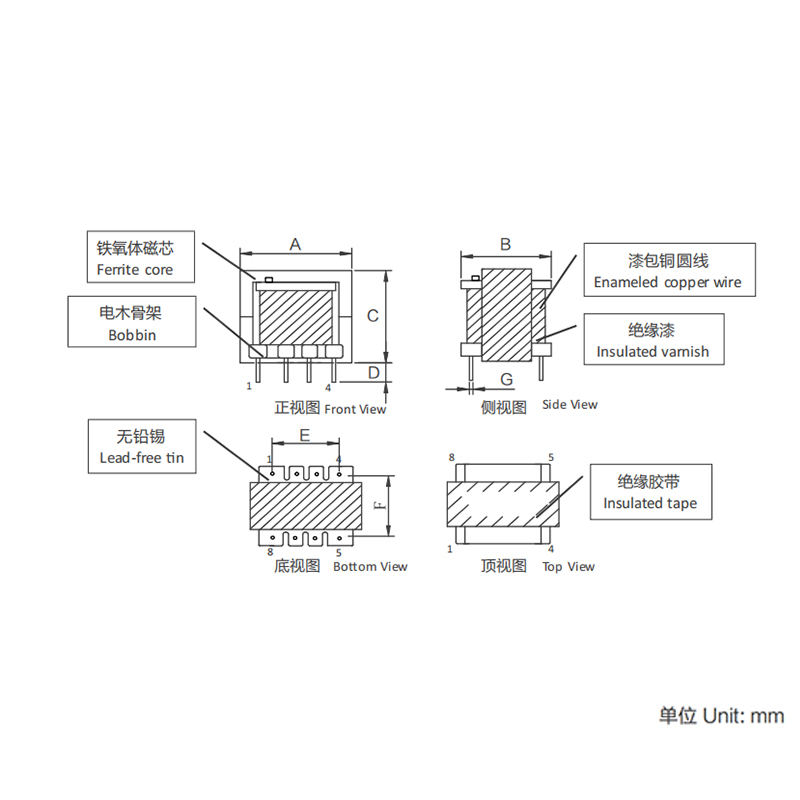

Dimensions(mm)
|
Type |
A |
B |
C |
D |
E |
F |
G |
Notes |
|
EE8.3 |
9.7 |
9.5 |
10.5 |
3.5 |
5 |
6.0 |
0.50 |
|
|
EF10 |
11.5 |
9.5 |
10 |
3.0 |
5 |
6.5 |
0.50 |
|
|
EE10 |
12 |
11.5 |
13.0 |
3.5 |
7.5 |
8.0 |
0.50 |
|
|
EE13 |
14.5 |
13.5 |
13.5 |
3.5 |
10 |
8.5 |
0.60 |
|
|
EE13S |
14 |
13 |
14 |
2.7 |
8.5 |
10 |
0.6 |
|
|
EE16 |
17.5 |
13.5 |
16.0 |
3.5 |
6 |
9 |
0.60 |
|
|
EE16C |
17.5 |
15.2 |
13.5 |
4.0 |
6 |
11.5 |
0.60 |
|
|
EE19 |
20.5 |
15.5 |
18.5 |
3.5 |
10 |
11 |
0.60 |
|
