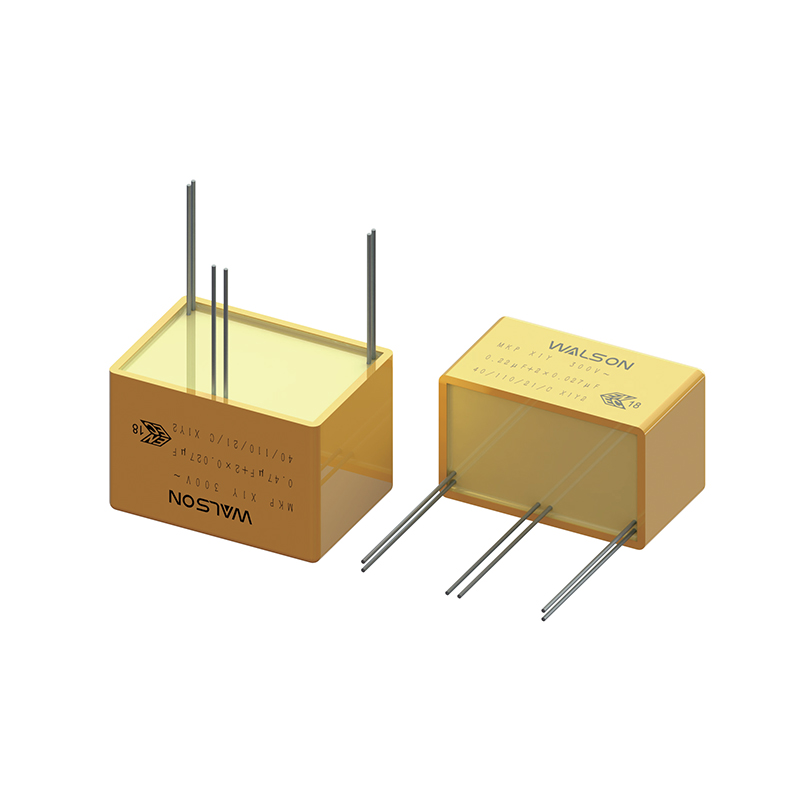

MKP X1Y series Capacitor Module for Electromagnetic Interference Suppression (Class X1+Y)

Features:
Metalized polypropylene film, non-inductive construction, with good electrical properties
X1 and Y2 class suppress-interference capacitors have a triangular connection and integrated structure with three ends out
Flame retardant plastic case and epoxy resin sealing (UL 94 V-0), tinned copper-clad steel wires lead out at three ends
Referring to the GB/T 6346.14 (idt IEC 60384-14) standard, obtained ENEC certification
Contact Us PDF Download

Share:

PREV：No previous articleNEXT：MKP X2Y series Capacitor Module for Electromagnetic Interference Suppression (Class X2+Y)
Typical Applications:
Used inline bypass, antenna coupling, across-the-line, and spark killer circuits, mainly for suppressing noise occurring in applications
Available for EMI filters, SMPS, Household appliances, such as mixers, fans, coffee grinders, audio and TV, etc

Specifications

Reference Standard IEC 60384-14:2013/AMD:2016 EN 60384-14:2013+A1
Product subclass X1, Y2
Rated voltage 300 Vac
Normal capacitance range X1：0.1～1.5μF Y2：0.001～0.027μF
Capacitance Tolerance ±10 %（K）
Climatic category 40/110/21
Passive flammability category C
Voltage test between terminals X1：2000 Vdc 2s Y2：3000 Vdc 2s
Voltage test between terminals and case 2100 Vac 60s
Insulation resistance C≤0.33 μF：≥15000 MΩ，C≤0.33 μF：≥5000 s （20℃，100V，1min）
Tangent of loss angle ≤0.0010（1 kHz，20 ℃）

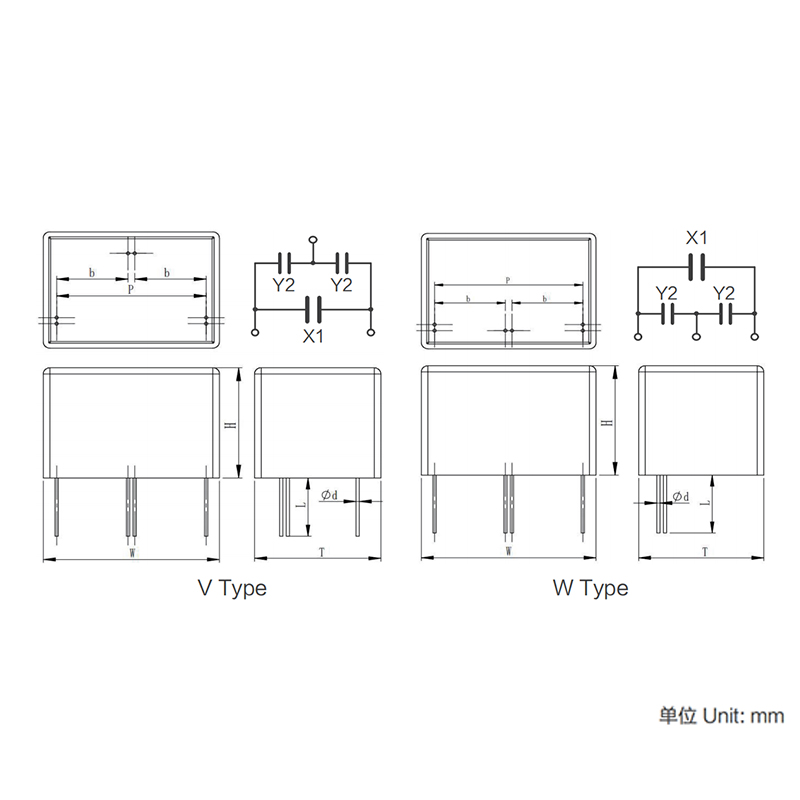

Dimensions(mm)

CR-x1

(uF)

CR-Y1

(μF)

Enclosure Dimensions

Lead Size

W±1

(mm)

H±1

(mm)

T±1

(mm)

P±2

(mm)

b±2

(mm)

φd±0.05

(mm)





0.1

0.001

18

19

11

15

7.5

0.5

0.0022

18

19

11

15

7.5

0.5

0.0047

18

19

11

15

7.5

0.5

0.01

26.5

20

11

22.5

10

0.5

0.027

26.5

22

12

22.5

10

0.5







0.22

0.001

26.5

22

12

22.5

10

0.5

0.0022

26.5

22

12

22.5

10

0.5

0.0033

26.5

22

12

22.5

10

0.5

0.0047

26.5

22

12

22.5

10

0.5

0.01

26.5

22

12

22.5

10

0.5

0.027

26.5

23

13

22.5

10

0.5







0.33

0.001

26.5

22

12

22.5

10

0.5

0.0022

26.5

22

12

22.5

10

0.5

0.0033

26.5

22

12

22.5

10

0.5

0.0047

26.5

22

12

22.5

10

0.5

0.01

26.5

22

12

22.5

10

0.5

0.027

26.5

18

19

22.5

10

0.5







0.47

0.001

26.5

23

13

22.5

10

0.5

0.0022

26.5

23

13

22.5

10

0.5

0.0033

26.5

23

13

22.5

10

0.5

0.0047

26.5

23

13

22.5

10

0.5

0.01

26.5

23

13

22.5

10

0.5

0.027

26.5

18

19

22.5

10

0.5





1

0.001

31

30

18

27.5

12.5

0.5

0.0022

31

30

18

27.5

12.5

0.5

0.0033

31

30

18

27.5

12.5

0.5

0.01

31

30

18

27.5

12.5

0.5

0.027

31

30

18

27.5

12.5

0.5



1.5

0.001

32

37

22

27.5

12.5

0.5

0.0047

32

37

22

27.5

12.5

0.5

0.01

32

37

22

27.5

12.5

0.5

0.027

32

37

22

27.5

12.5

0.5
