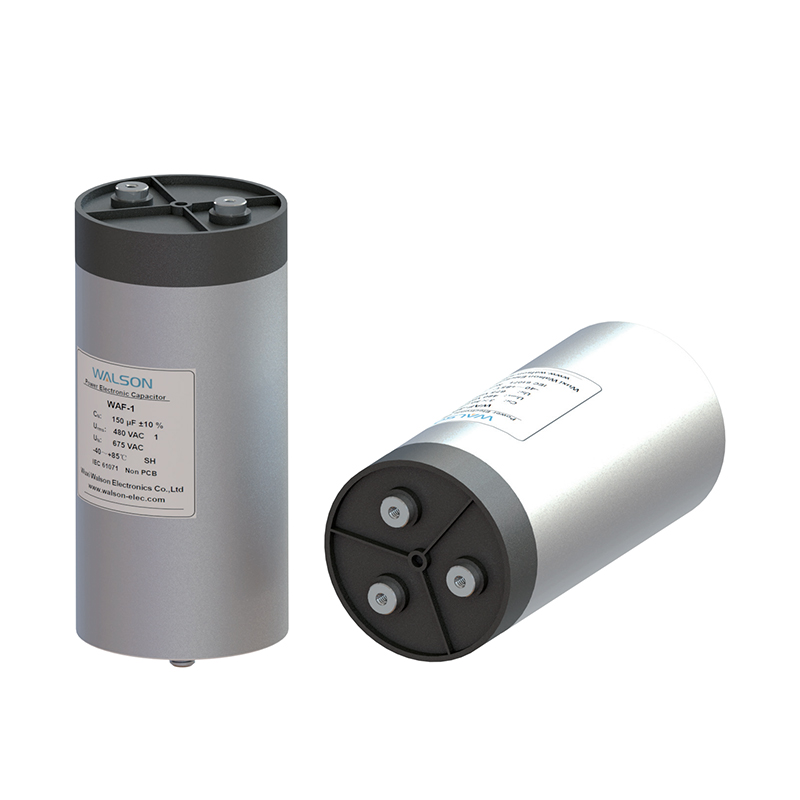

WAF series Dry Type Single Phase/Three Phase AC Filter Capacitor

Features：

Aluminum housing package, filled with high temperature and high heat-conductive material

Copper nut, copper screw extraction, and insulated plastic cover installation is simple and convenient, flame retardant

High capacitance, small size, good self-healing property, high voltage proof

Large ripple current, high DV/DT bearing capacity

PREV：WAB series Dry Type AC Filter Capacitor for Power Electronics (Steel Case)NEXT：WAT series AC Filter Capacitor (Axial-Type)

Typical Applications：

Widely used in power electronic equipment used for the AC filter

In the high-power UPS, switching power supply, inverter, and other equipment for the AC filter, harmonics and improve power factor control

Specifications

Implemented Standard	GB/T 17702、IEC61071
Climatic Category	40/85/56
Rated Voltage	450V.DC~4000V.DC
Capacitance Range	10μF～8800μF
Capacitance Tolerance	±5%（J），±10%（K）
Voltage Test Between Terminals	1.5Un（VDC）/10S
Voltage test between terminals and case	1000+2×Un/√2V.AC 60S
Insulation resistance	≥10000 s（100 V，1 min，20 ℃）

Dimensions(mm)

U_n (V.AC)	C_N (μF)	ΦD (mm)	H1 (mm)	ESR (mΩ)	DV/DT (V/μs)	I_rms(A) @40℃
230	≤4000	76~136	80~350	≤5	3~200	50~120
250	≤3200	76~136	80~350	≤5	3~200	50~120
300	≤2400	76~136	80~350	≤5	3~200	50~120
350	≤3200	76~136	80~350	≤5	3~200	50~120
380	≤1400	76~136	80~350	≤5	3~200	50~120
400	≤1200	76~136	80~350	≤5	3~200	50~120
450	≤1000	76~136	80~350	≤5	3~200	50~120
500	≤800	76~136	80~350	≤5	3~200	50~120
525	≤720	76~136	80~350	≤5	3~200	50~120
540	≤720	76~136	80~350	≤5	3~200	50~120
600	≤560	76~136	80~350	≤5	3~200	50~120
690	≤400	76~136	80~350	≤5	3~200	50~120
700	≤400	76-136	80-35	≤5	3~200	50~120
800	≤300	76~136	80~350	≤5	3~200	50~120
850	≤250	76~136	80~350	≤5	3~200	50~120
900	≤250	76~136	80~350	≤5	3~200	50~120
1000	≤180	76~136	80~350	≤5	3~200	50~120
1200	≤140	76~136	80~350	≤5	3~200	50~120
1400	≤100	76~136	80~350	≤5	3~200	50~120
1700	≤60	76~136	80~350	≤5	3~200	50~120
1800	≤60	76~136	80~350	≤5	3~200	50~120
2000	≤40	76~136	80~350	≤5	3~200	50~120
