WAT series AC Filter Capacitor (Axial-Type)

Features：
Sealed with mylar tape or cylindrical plastic case and flame-retardant epoxy resin
The installation is flexible and convenient, and the way of extraction can be varied
Noninductive structure, ESL low, ESR small, high frequency and high current capacity, temperature low, long life, and other characteristics
Contact Us PDF Download

Share:

PREV：WAF series Dry Type Single Phase/Three Phase AC Filter CapacitorNEXT：WAC series AC Filter Capacitor for PCB
Typical Applications：
Widely used in power electronic equipment used for the AC filter
In the high-power UPS, switching power supply, inverter, and other equipment for the AC filter, harmonics control and improve power factor

Specifications

Implemented Standard GB/T 17702、IEC61071
Working Temperature Range -40℃~85℃
Rated Voltage 450V.DC~690V.DC
Capacitance Range 5μF～50μF
Capacitance Tolerance ±5%（J），±10%（K）
Voltage Test Between Terminals 2.15Un（VAC/10s
Voltage test between terminals and case 3000V.AC / 50Hz 60s
Insulation resistance ≥5000s（100V，1min，20℃）

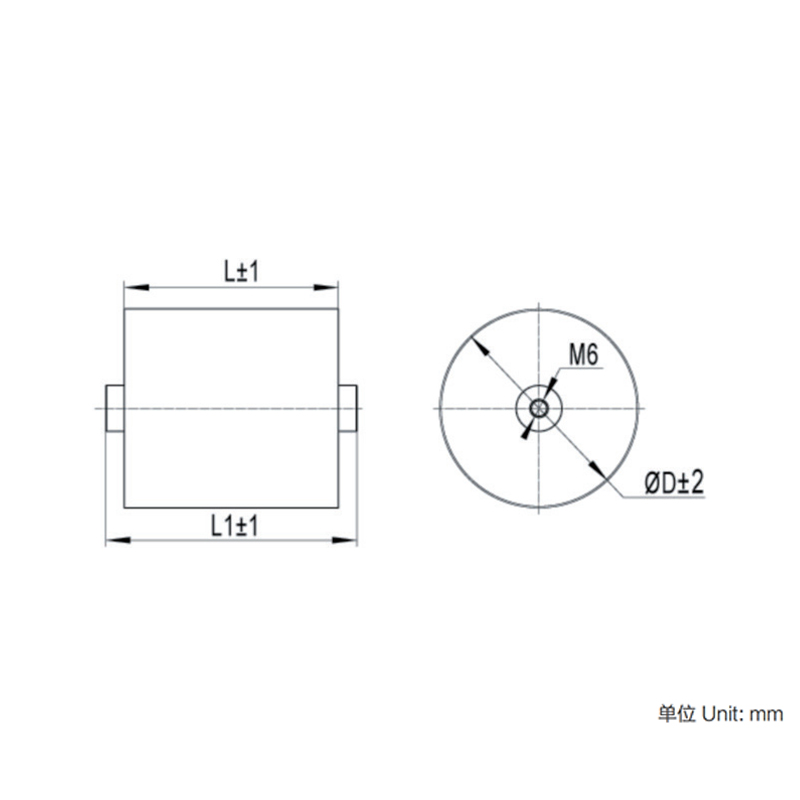

Dimensions(mm)

CN

(μF)
ΦD
(mm)

L

(mm)

ESR

@1kHz
(mΩ)

ESL

(nH)

DV/DT

(V/μs)

(A)
Irms
@40℃
10kHz
(A)

Un 450V.AC

6.8

35

40

9.4

27

100

680

30

8

38

40

8

25

80

640

35

10

42

40

6.4

25

75

750

40

15

51

40

5.3

28

70

1050

48

20

59

40

4

23

65

1300

55

30

71

40

2.7

27

60

1800

68

40

74

50

2

26

55

2200

70

50

82

50

1.6

25

50

2500

75

Un 500V.AC

4

52

40

10

23

180

720

50

5

58

40

9.6

23

190

950

50

6

63

40

8.5

25

200

1200

50

Un 690V.AC

5

35

60

9.6

27

180

900

30

6.8

40

60

7

26

150

1020

35

8

44

60

7

25

120

960

38

10

49

60

6.4

26

110

1100

45

15

59

60

4.2

23

100

1500

55

20

68

60

3.2

25

90

1800

62

25

76

60

2.5

22

80

2000

70

30

83

60

2.1

23

80

2400

75
