CBB20 series Metallized Polypropylene Film Capacitor (Axial-Type) CBB20 series Metallized Polypropylene Film Capacitor (Axial-Type)
  • CBB20 series Metallized Polypropylene Film Capacitor (Axial-Type)
  • CBB20 series Metallized Polypropylene Film Capacitor (Axial-Type)

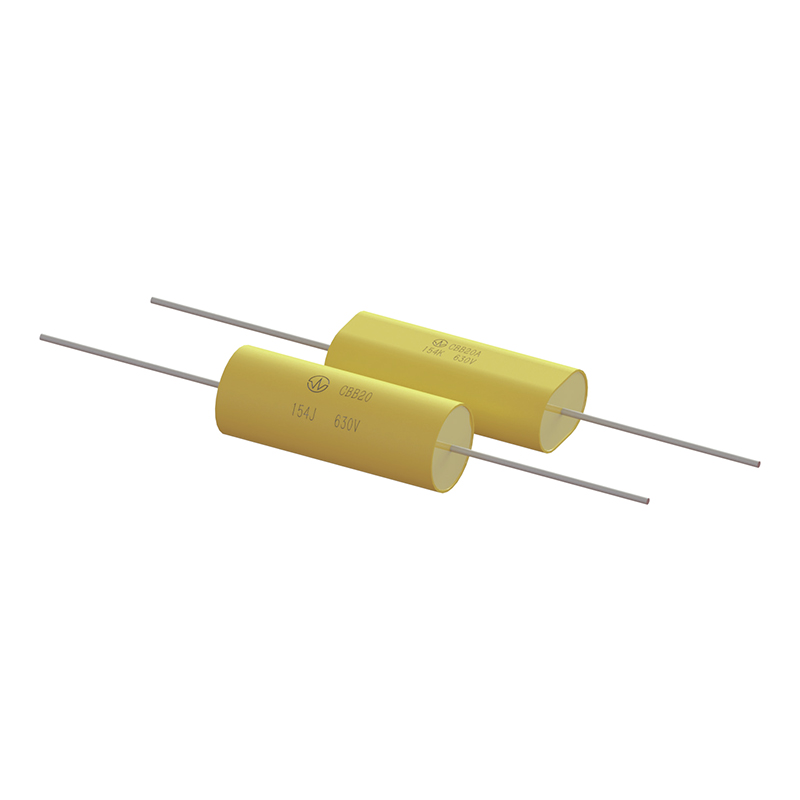

CBB20 series Metallized Polypropylene Film Capacitor (Axial-Type)

Features：
Metallized polypropylene film, Outstanding self-healing property
Axial leaded, small size, light weight
Wrapped with polyester tape and filled with flame-retardant resin (UL94 V-0)
Contact Us PDF Download
PREV：MKP21 series Metallized Polypropylene Film Capacitor (Box-Type)NEXT：CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)
Typical Applications：
Suitable for timing, oscillator, temperature compensation, PFC and SMPS coupling circuit, etc.

Specifications

Reference Standard GB/T 10190 (IEC 60384-16)
Climatic Category 40/105/21
Rated Temperature 85℃
Operating Temperature Range -40~105℃
Rated Voltage 250/400/630/1000/1250V、160/200/250/350/400Vac
Capacitance Range 0.001μF~15.0μF
Capacitance Tolerance ±5% (J) ±10% (K)±20%(M)
Voltage Proof 1.6UR (5s)
Insulation Resistance ( Rlns) CN≤0.33μF: ≥15000MΩ
CN>0.33μF: ≥5000s (20℃,100Vdc, 1min)
Tanδ Dissipation Factor ≤0.0010 (1kHz, 20℃)

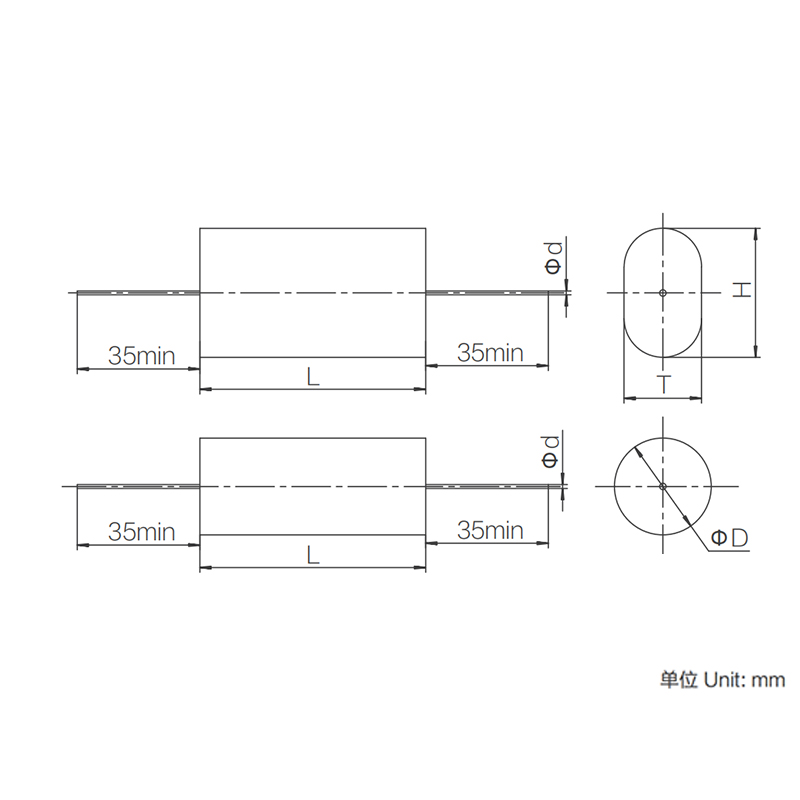

Dimensions(mm)

CN
(uF)		 Cylinder
D±1.0 (mm)		 Flat L±1.0 (mm) d±0.05 (mm)
H±1.0 (mm) T±1.0 (mm)
250Vdc(160Vac) 0.047 5.5 15 0.6
0.068 6 15 0.6
0.1 7 15 0.8
0.15 8 15 0.8
0.22 7.5 20 0.8
0.33 9 20 0.8
0.47 8.5 27 0.8
0.68 10 27 0.8
1 12 27 0.8
1.5 12.5 33 0.8
22 14.5 33 0.8
3.3 17.5 33 1
4.7 18 43 1
6.8 21.5 43 1
10 21.5 57 1
15 25.5 57 1
250Vdc(160Vac) 0.047 5.5 15 0.6
0.068 6 15 0.6
0.1 7 15 0.8
0.15 8 15 0.8
0.22 7.5 20 0.8
0.33 9 20 0.8
0.47 8.5 27 0.8
0.68 10 27 0.8
1 12 27 0.8
1.5 12.5 33 0.8
22 14.5 33 0.8
3.3 17.5 33 1
4.7 18 43 1
6.8 21.5 43 1
10 21.5 57 1
15 25.5 57 1
630Vdc(250Vac) 0.01 5.5 15 0.6
0.015 6 15 0.6
0.022 7 15 0.8
0.033 7 20 0.8
0.047 8 20 0.8
0.068 9 20 0.8
0.1 8.5 27 0.8
0.15 10 27 0.8
0.22 12 27 0.8
0.33 12.5 33 0.8
0.47 14.5 33 0.8
0.68 17 33 1
1 17.5 43 1
1.5 21 43 1
2.2 24.5 43 1
3.3 25 57 1
1000Vdc(350Vac) 0.0047 5.5 15 0.6
0.0068 6.5 15 0.6
0.01 7.5 15 0.8
0.015 8.5 15 0.8
0.022 8 20 0.8
0.033 9 20 0.8
0.047 10.5 20 0.8
0.068 9.5 27 0.8
0.1 11.5 27 0.8
0.15 12 33 0.8
0.22 14 33 0.8
0.33 16.5 33 1
0.47 17.5 43 1
0.68 20.5 43 1
1 20.5 57 1
1.5 24.5 57 1
1250Vdc(400Vac) 0.0033 6 15 0.6
0.0047 6.5 15 0.6
0.0068 7.5 15 0.8
0.01 8.5 15 0.8
0.015 7.5 20 0.8
0.022 8.5 20 0.8
0.033 10.5 20 0.8
0.047 9.5 27 0.8
0.068 11 27 0.8
0.1 13 27 0,8
0.15 13.5 33 0.8
0.22 16 33 1
0.33 17 43 1
0.47 19.5 43 1
0.68 20 57 1
1 23 57 1
1.5 27.5 57 1
