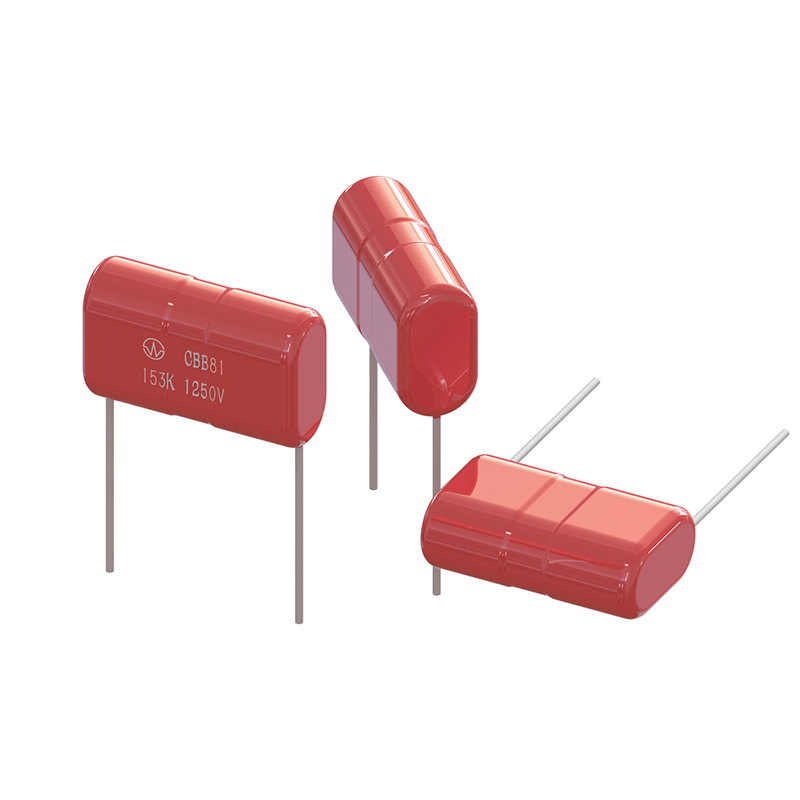

  • CBB81 series High-Voltage Metallized Polypropylene Film/Foil Capacitor
  • CBB81 series High-Voltage Metallized Polypropylene Film/Foil Capacitor

CBB81 series High-Voltage Metallized Polypropylene Film/Foil Capacitor

Features:
Metalized polypropylene film/ foil, wound construction
Low loss and small inherent temperature rise
Negative temperature coefficient of capacitance
Flame retardant epoxy resin powder coating (UL94/V-0)
Contact Us PDF Download
PREV：CBB28 series High-Voltage Metallized Polypropylene Film/Foil Capacitor (Sub-Miniature)NEXT：CBB62 series Metallized Polypropylene Film AC Capacitor
Typical Applications:
Horizontal resonance circuits of large screen monitor
Suitable for high pulse and high current loading circuit
Suitable for electronic ballast

Specifications

Reference Standard

GB/T10190(IEC 60384-16)

Climatic Category

40/105/21

Rated Temperature

85℃

Operating Temperature Range

-40℃~105℃

Rated Voltage

630V,800V,1000/1250V,1600V,2000V,2500V

Capacitance Range

0.0010μF~0.036μF

Capacitance Tolerance

±3%(H),±5%(J),±10%(K)

Voltage Proof

1.75UR(5s)

Dissipation Factor

≤10×10-⁴ (1kHz,20℃)

≤20×10-⁴ (10kHz,20℃)

Insulation Resistance

≥25000MΩ(20℃,100V,1min)

Maximum Pulse Rise Time (dV/dt)

If the working voltage (U)is lower than the rated voltage (UR), the capacitor can be worked at a higher dV/dt.In this case, the maximum allowed dV/dt is obtained by multiplying the right value with UR/U.



UR(V)

dV/dt(V/μs)

P=15.0

630/800

11000

1000/125

28000

1600

32000

2000

35000

2500

40000

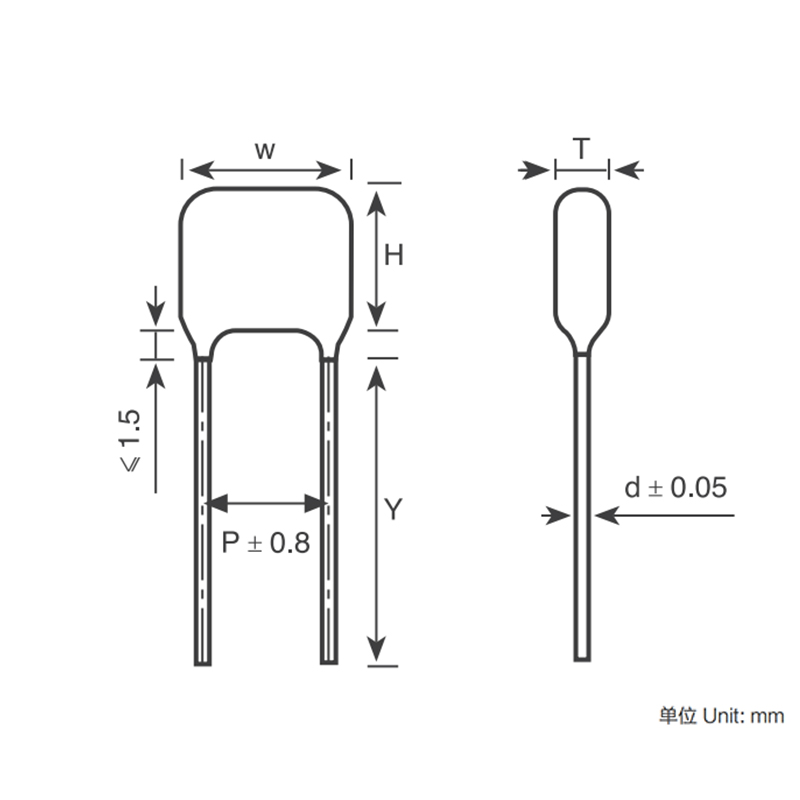

Dimensions(mm)

CN
(uF)		 W H T P d
630/800Vdc(40Vac) 0.001 18 10.1 5.7 15 0.8
0.0012 18 10.5 6 15 0.8
0.0015 18 11 6.5 15 0.8
0.0016 18 11.6 6.4 15 0.8
0.0018 18 11.9 6.7 15 0.8
0.002 18 12.2 7 15 0.8
0.0022 18 12.5 7.3 15 0.8
0.0024 18 12.7 7.5 15 0.8
0.0027 18 13.1 7.9 15 0.8
0.003 18 13.5 8.3 15 0.8
0.0033 18 13.8 8.6 15 0.8
0.0036 18 11.7 6.5 15 0.8
0.0039 18 12 6.7 15 0.8
0.0043 18 12.2 7 15 0.8
0.0047 18 12.5 7.3 15 0.8
0.0049 18 11.9 6.7 15 0.8
0.0051 18 12 6.8 15 0.8
0.0053 18 12.1 6.9 15 0.8
0.0056 18 11.5 6.2 15 0.8
0.006 18 11.6 6.4 15 0.8
0.0062 18 11.7 6.5 15 0.8
0.0065 18 11.8 66 15 0.8
0.0068 18 12 6.8 15 0.8
0.0072 18 12.1 6.9 15 0.8
0.0075 18 12.2 7 15 0.8
0.0078 18 12.4 7.1 15 0.8
0.0082 18 12.5 7.3 15 0.8
0.0084 18 12.6 7.4 15 0.8
0.0091 18 12.8 7.6 15 8
0.01 18 13.2 8 15 0.8
0.012 18 11.4 6.2 15 0.8
0.015 18 12 6.8 15 0.8
0.018 18 12.6 7.4 15 0.8
0.022 18 13.8 8.1 15 0.8
0.024 18 14.1 8.4 15 0.8
0.027 18 14.6 8.9 15 0.8
0.033 18 16.4 9.1 15 0.8
0.036 18 16.8 9.5 15 0.8
1000/1250Vdc(450Vac) 0.001 18 10.1 5.7 15 0.8
0.0012 18 10.5 6 15 0.8
0.0015 18 11 6.5 15 0.8
0.0016 18 11.6 6.4 15 0.8
0.0018 18 11.9 6.7 15 0.8
0.002 18 12.2 7 15 0.8
0.0022 18 12.5 7.3 15 0.8
0.0024 18 12.7 7.5 15 0.8
0.0027 18 13.6 7.9 15 0.8
0.003 18 14 8.3 15 0.8
0.0033 18 14.3 8.6 15 0.8
0.0036 18 11.7 6.5 15 0.8
0.0039 18 12 6.7 15 0.8
0.0043 18 12.2 7 15 0.8
0.0047 18 12.5 7.3 15 0.8
0.0049 18 12.6 7.4 15 0.8
0.0051 18 12.8 7.5 15 0.8
0.0053 18 12.9 7.7 15 0.8
0.0056 18 12.1 6.9 15 0.8
0.006 18 12.3 7.1 15 0.8
0.0062 18 12.4 7.2 15 0.8
0.0065 18 12.6 7.4 15 0.8
0.0068 18 12.7 7.5 15 0.8
0.0072 18 12.9 7.7 15 0.8
0.0075 18 13.5 7.8 15 0.8
0.0078 18 13.7 8 15 0.8
0.0082 18 13.9 8.1 15 0.8
0.0084 18 13.9 8.2 15 0.8
0.0091 18 14.2 9 15 0.8
0.01 18 14.6 9.4 15 0.8
0.012 18 15.4 10.2 15 0.8
0.015 18 14.9 9.7 15 0.8
0.018 18 15.7 10.5 15 0.8
0.022 18 16.7 11.5 15 0.8
1600Vdc(450Vac) 0.001 18 10.4 6 15 0.8
0.0012 18 10.8 6.4 15 0.8
0.0015 18 11.3 6.9 15 0.8
0.0016 18 12 6.8 15 0.8
0.0018 18 12.3 7.1 15 0.8
0.002 18 12.7 7.4 15 0.8
0.0022 18 12.9 7.7 15 0.8
0.0024 18 13.7 8 15 0.8
0.0027 18 11.4 6.2 15 0.8
0.003 18 11.7 6.5 15 0.8
0.0033 18 11.9 6.7 15 0.8
0.0036 18 11.4 6.2 15 0.8
0.0039 18 11.6 6.4 15 0.8
0.0043 18 11.8 6.6 15 0.8
0.0047 18 12.1 6.9 15 0.8
0.0049 18 12.2 7 15 0.8
0.0051 18 12.3 7.1 15 0.8
0.0053 18 12.4 7.2 15 0.8
0.0056 18 12.6 7.4 15 0.8
0.006 18 12.8 7.6 15 0.8
0.0062 18 12.9 7.7 15 0.8
0.0065 18 13.6 7.9 15 0.8
0.0068 18 13.7 8 15 0.8
0.0072 18 13.9 8.2 15 0.8
0.0075 18 14.1 8.4 15 0.8
0.0078 18 14.2 9 15 0.8
0.0082 18 14.4 9.2 15 0.8
0.0084 18 14.5 9.3 15 0.8
0.0091 18 14.9 9.6 15 0.8
0.01 18 15.3 10 15 0.8
0.012 18 16.1 10.9 15 0.8
2000Vdc(500Vac) 0.001 18 10.4 6 15 0.8
0.0012 18 10.8 6.4 15 0.8
0.0015 18 11.3 6.9 15 0.8
0.0016 18 12 6.8 15 0.8
0.0018 18 12.3 7.1 15 0.8
0.002 18 12.7 7.4 15 0.8
0.0022 18 12.9 7.7 15 0.8
0.0024 18 11.8 6.6 15 0.8
0.0027 18 12.1 6.9 15 0.8
0.003 18 12.4 7.2 15 0.8
0.0033 18 12.7 7.5 15 0.8
0.0036 18 12.2 7 15 0.8
0.0039 18 12.4 7.2 15 0.8
0.0043 18 12.7 7.5 15 0.8
0.0047 18 13.5 7.8 15 0.8
0.0049 18 13.7 8 15 0.8
0.0051 18 13.8 8.1 15 0.8
0.0053 18 13.9 8.2 15 0.8
0.0056 18 14.2 8.4 15 0.8
0.006 18 14.4 9.2 15 0.8
0.0062 18 14.5 9.3 15 0.8
0.0065 18 14.7 9.5 15 0.8
0.0068 18 14.9 9.7 15 0.8
0.0072 18 15.2 9.9 15 0.8
0.0075 18 15.3 10.1 15 0.8
0.0078 18 15.5 10.3 15 0.8
0.0082 18 15.7 10.5 15 0.8
0.0084 18 15.8 10.6 15 0.8
0.0091 18 16.2 11 15 0.8
0.01 18 16.7 11.5 15 0.8
2500Vdc(500Vac) 0.001 18 10.4 6 15 0.8
0.0012 18 10.8 6.4 15 0.8
0.0015 18 11.3 6.9 15 0.8
0.0016 18 12 6.8 15 0.8
0.0018 18 12.3 7.1 15 0.8
0.002 18 12.7 7.4 15 0.8
0.0022 18 12.9 7.7 15 0.8
0.0024 18 11.8 6.6 15 0.8
0.0027 18 12.1 6.9 15 0.8
0.003 18 12.4 7.2 15 0.8
0.0033 18 12.7 7.5 15 0.8
0.0036 18 13.5 7.8 15 0.8
0.0039 18 13.8 8.1 15 0.8
0.0043 18 14.1 8.4 15 0.8
0.0047 18 14.5 9.3 15 0.8
0.004 18 14.6 9.4 15 0.8
0.0051 18 14.8 9.6 15 0.8
0.0053 18 15 9.7 15 0.8
0.0056 18 15.2 10 15 0.8
0.006 18 15.5 10.3 15 0.8
0.0062 18 15.6 10.4 15 0.8
0.0065 18 15.9 10.6 15 0.8
0.0068 18 16.1 10.9 15 0.8
0.0072 18 16.3 11.1 15 0.8
0.0075 18 16.5 11.3 15 0.8
0.0078 18 16.7 11.5 15 0.8
