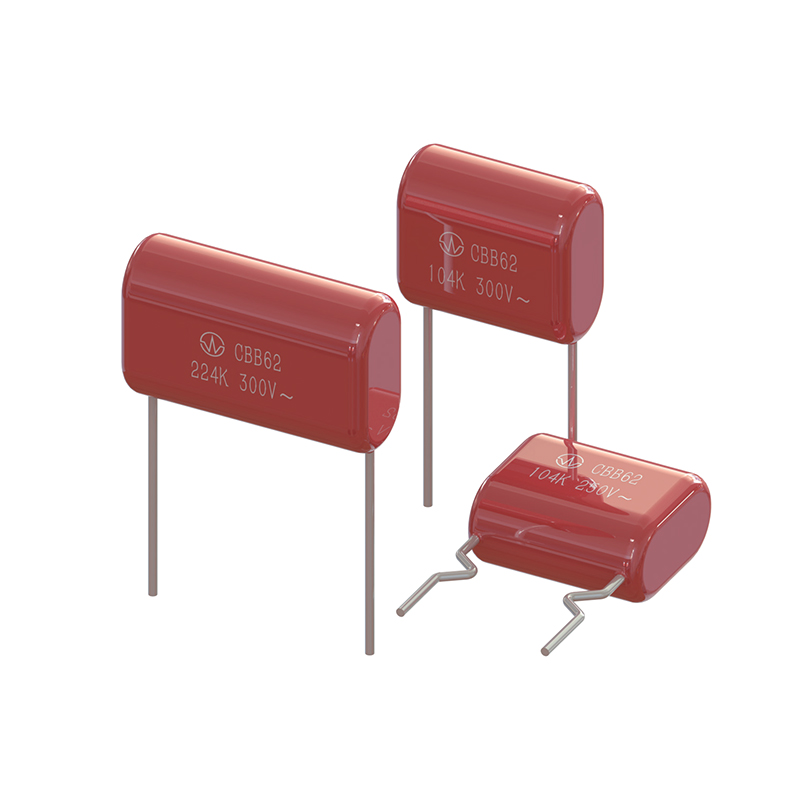

Reference Standard |
GB/T 14579(IEC 60384-17) |
|||
Climatic Category |
40/105/21 |
|||
Rated Temperature |
85℃ |
|||
Operating Temperature Range |
-40℃~+105℃ |
|||
Rated Voltage |
160Vac,50/60Hz |
230Vac,50/60Hz |
250Vac,50/60Hz |
300Vad275Vac,50/60Hz |
Maximum continuous DC voltage |
250Vdc |
400Vdc |
560Vdc |
630Vdc |
Capacitance Range |
0.22μF~2.2μF |
0.033μF~4.7μF |
0.010μF~4.0μF |
0.10μF~1.0μF |
Voltage Proof (Between Terminals) |
400Vdc (2s) |
640Vdc (2s) |
900Vdc (2s) |
1500Vdc (2s) |
Capacitance Tolerance |
±5%(J),±10%(K),±20%(M) |
|||
Insulation Resistance |
R≥15000MQ,CN≤0.33μF (20℃,100V,1min) RCN≥5000s,CN>0.33μF |
|||
Dissipation Factor |
≤10×10-4(1kHz,20℃) |
|||
≤20×10-4(10kHz,20℃) |
||||
Note: For a long lifetime and continuous working, please choose 275 Vac and upwards voltage. |
CN (uF) |

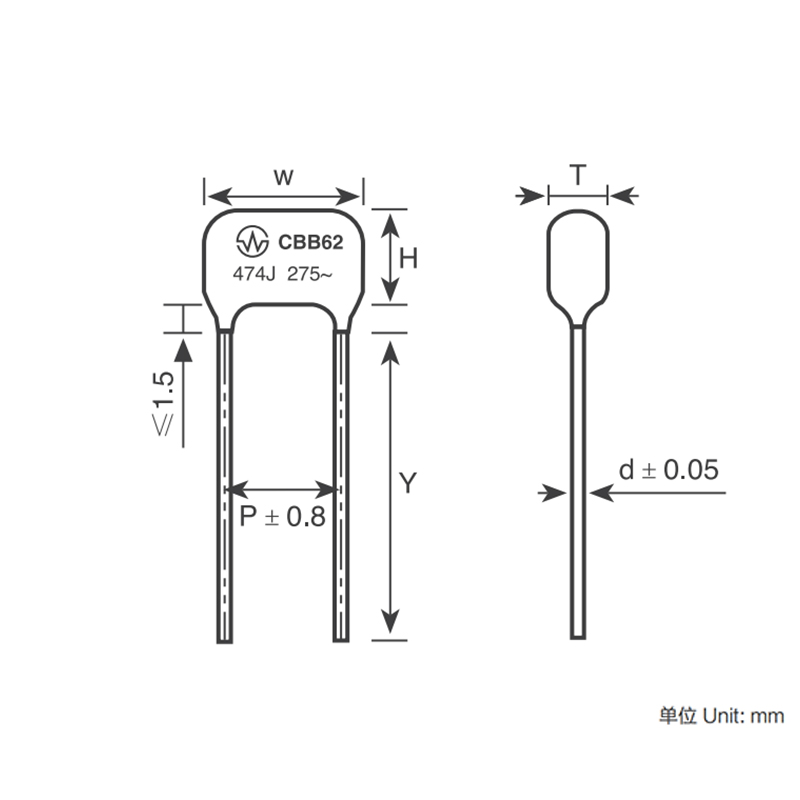

W | H | T | P | d | |
230Vac | 0.033 | 10 | 10.5 | 5.5 | 7.5 | 0.6 |
0.047 | 10 | 10.5 | 6.5 | 7.5 | 0.6 | |
0.033 | 12 | 9 | 5 | 10 | 0.6 | |
0.047 | 12 | 10 | 5.5 | 10 | 0.6 | |
0.068 | 12 | 11 | 6 | 10 | 0.6 | |
0.1 | 12 | 12 | 7 | 10 | 0.6 | |
0.1 | 17 | 10.5 | 5.5 | 15 | 0.6 | |
0.15 | 17 | 11 | 6.5 | 15 | 0.6 | |
0.22 | 17 | 12 | 7.5 | 15 | 0.6 | |
0.33 | 17 | 14.5 | 9 | 15 | 0.6 | |
0.39 | 17 | 14.5 | 9.5 | 15 | 0.6 | |
0.47 | 17 | 15 | 10.5 | 15 | 0.8 | |
0.22 | 23 | 11 | 6.5 | 20 | 0.8 | |
0.33 | 23 | 12.5 | 7.5 | 20 | 0.8 | |
0.39 | 23 | 13 | 8 | 20 | 0.8 | |
0.47 | 23 | 14.5 | 8 | 20 | 0.8 | |
0.56 | 23 | 15 | 9 | 20 | 0.8 | |
0.68 | 23 | 16 | 9.5 | 20 | 0.8 | |
1 | 23 | 19 | 11 | 20 | 0.8 | |
0.33 | 25 | 13 | 6.5 | 22.5 | 0.8 | |
0.39 | 25 | 13.5 | 7 | 22.5 | 0.8 | |
0.47 | 25 | 14 | 7.5 | 22.5 | 0.8 | |
0.56 | 25 | 15.5 | 8.5 | 22.5 | 0.8 | |
0.68 | 25 | 15.5 | 9 | 22.5 | 0.8 | |
1 | 25 | 18 | 10.5 | 22.5 | 0.8 | |
1.5 | 25 | 21.5 | 12.5 | 22.5 | 0.8 | |
1 | 28 | 18.5 | 9.5 | 25 | 0.8 | |
1.5 | 28 | 20.5 | 11 | 25 | 0.8 | |
2 | 28 | 22.5 | 13 | 25 | 0.8 | |
2.2 | 28 | 23 | 13.5 | 25 | 0.8 | |
0.47 | 30 | 14.5 | 6.5 | 27.5 | 0.8 | |
0.56 | 30 | 15 | 7 | 27.5 | 0.8 | |
0.68 | 30 | 16.5 | 7.5 | 27.5 | 0.8 | |
1 | 30 | 170 | 9 | 27.5 | 0.8 | |
1.5 | 30 | 20 | 10.5 | 27.5 | 0.8 | |
2 | 30 | 24.5 | 11 | 27.5 | 0.8 | |
2.2 | 30 | 25 | 11.5 | 27.5 | 0.8 | |
3 | 30 | 27.5 | 14 | 27.5 | 0.8 | |
3.3 | 30 | 27.5 | 14.5 | 27.5 | 0.8 | |
4 | 30 | 29 | 16.5 | 27.5 | 0.8 | |
4.7 | 30 | 31.5 | 18 | 27.5 | 0.8 | |
250Vac | 0.01 | 12 | 8 | 4 | 10 | 0.6 |
0.015 | 12 | 8 | 5 | 10 | 0.6 | |
0.022 | 12 | 9 | 5 | 10 | 0.6 | |
0.033 | 12 | 10 | 5.5 | 10 | 0.6 | |
0.047 | 12 | 11.5 | 6 | 10 | 0.6 | |
0.068 | 12 | 12.5 | 7 | 10 | 0.6 | |
0.068 | 17 | 10 | 5.5 | 15 | 0.6 | |
0.1 | 17 | 11 | 6.5 | 15 | 0.6 | |
0.15 | 17 | 12 | 7.5 | 15 | 0.6 | |
0.22 | 17 | 13.5 | 8.5 | 15 | 0.6 | |
0.33 | 17 | 15 | 10.5 | 15 | 0.8 | |
0.15 | 23 | 11 | 6.5 | 20 | 0.8 | |
0.22 | 23 | 12 | 7.5 | 20 | 0.8 | |
0.33 | 23 | 14.5 | 8 | 20 | 0.8 | |
0.39 | 23 | 15 | 8 | 20 | 0.8 | |
0.47 | 23 | 16 | 9.5 | 20 | 0.8 | |
0.56 | 23 | 17.5 | 10.5 | 20 | 0.8 | |
0.68 | 23 | 19.5 | 10 | 20 | 0.8 | |
0.22 | 25 | 13.5 | 6.5 | 22.5 | 0.8 | |
0.33 | 25 | 14 | 7.5 | 22.5 | 0.8 | |
0.39 | 25 | 15.5 | 8 | 22.5 | 0.8 | |
0.47 | 25 | 15 | 9 | 22.5 | 0.8 | |
0.56 | 25 | 16 | 9.5 | 22.5 | 0.8 | |
0.68 | 25 | 18 | 10 | 22.5 | 0.8 | |
1 | 25 | 20 | 12 | 22.5 | 0.8 | |
0.33 | 28 | 15.5 | 6 | 25 | 0.8 | |
0.39 | 28 | 15 | 7.5 | 25 | 0.8 | |
0.47 | 28 | 16.5 | 8 | 25 | 0.8 | |
0.56 | 28 | 16.5 | 8.5 | 25 | 0.8 | |
0.68 | 28 | 17 | 9.5 | 25 | 0.8 | |
1 | 28 | 19 | 11.5 | 25 | 0.8 | |
1.5 | 28 | 25.5 | 12 | 25 | 0.8 | |
2 | 28 | 27 | 14 | 25 | 0.8 | |
2.2 | 28 | 28.5 | 15 | 25 | 0.8 | |
3.3 | 28 | 31.5 | 18 | 25 | 0.8 | |
0.47 | 30 | 15.5 | 7.5 | 27.5 | 0.8 | |
0.56 | 30 | 16 | 8 | 27.5 | 0.8 | |
0.68 | 30 | 17.5 | 9 | 27.5 | 0.8 | |
1 | 30 | 19.5 | 10.5 | 27.5 | 0.8 | |
1.5 | 30 | 24 | 11.5 | 27.5 | 0.8 | |
2 | 30 | 26 | 13.5 | 27.5 | 0.8 | |
2.2 | 30 | 27.5 | 14 | 27.5 | 0.8 | |
3 | 30 | 29.5 | 16.5 | 27.5 | 0.8 | |
3.3 | 30 | 30 | 17.5 | 27.5 | 0.8 | |
4 | 30 | 32 | 19.5 | 27.5 | 0.8 | |
300Vac/275Vac | 0.1 | 17 | 14.5 | 9 | 15 | 0.6 |
0.15 | 17 | 15.5 | 10.5 | 15 | 0.8 | |
0.22 | 17 | 18.5 | 12 | 15 | 0.8 | |
0.1 | 23 | 12 | 7.5 | 20 | 0.8 | |
0.15 | 23 | 14.5 | 9 | 20 | 0.8 | |
0.22 | 23 | 16 | 10 | 20 | 0.8 | |
0.33 | 23 | 18 | 12 | 20 | 0.8 | |
0.1 | 25 | 12 | 7 | 22.5 | 0.8 | |
0.15 | 25 | 13 | 8.5 | 22.5 | 0.8 | |
0.22 | 25 | 16.5 | 9 | 22.5 | 0.8 | |
0.33 | 25 | 17.5 | 11 | 22.5 | 0.8 | |
0.39 | 25 | 19 | 11.5 | 22.5 | 0.8 | |
0.47 | 25 | 20.5 | 12.5 | 22.5 | 0.8 | |
0.22 | 28 | 15 | 8.5 | 25 | 0.8 | |
0.27 | 28 | 16 | 9.5 | 25 | 0.8 | |
0.33 | 28 | 17.5 | 10.5 | 25 | 0.8 | |
0.36 | 28 | 17 | 10 | 25 | 0.8 | |
0.39 | 28 | 18.5 | 11 | 25 | 0.8 | |
0.41 | 28 | 18 | 11.5 | 25 | 0.8 | |
0.43 | 28 | 18 | 11 | 25 | 0.8 | |
0.45 | 28 | 19 | 11.5 | 25 | 0.8 | |
0.47 | 28 | 20.5 | 11.5 | 25 | 0.8 | |
0.49 | 28 | 20.5 | 12 | 25 | 0.8 | |
0.51 | 28 | 20 | 12 | 25 | 0.8 | |
0.56 | 28 | 21.5 | 12.5 | 25 | 0.8 | |
0.68 | 28 | 22 | 14 | 25 | 0.8 | |
0.75 | 28 | 23.5 | 14.5 | 25 | 0.8 | |
0.82 | 28 | 24 | 14.5 | 25 | 0.8 | |
1 | 28 | 26 | 16.5 | 25 | 0.8 | |
160Vac | 0.22 | 13 | 11 | 6 | 10 | 0.6 |
0.27 | 13 | 11.5 | 6.5 | 10 | 0.6 | |
0.33 | 13 | 12.5 | 7 | 10 | 0.6 | |
0.39 | 13 | 13 | 7.5 | 10 | 0.6 | |
0.47 | 13 | 13.5 | 8.5 | 10 | 0.6 | |
0.56 | 13 | 14 | 9 | 10 | 0.6 | |
0.47 | 17.5 | 12 | 7 | 15 | 0.6 | |
0.56 | 17.5 | 12.5 | 7.5 | 15 | 0.6 | |
0.68 | 17.5 | 13 | 8 | 15 | 0.6 | |
0.82 | 17.5 | 13.5 | 8.5 | 15 | 0.6 | |
1 | 17.5 | 14.5 | 9.5 | 15 | 0.6 | |
1.2 | 17.5 | 16.5 | 9.5 | 15 | 0.8 | |
1.5 | 17.5 | 17.5 | 10.5 | 15 | 0.8 | |
1.8 | 17.5 | 18.5 | 11.5 | 15 | 0.8 | |
2 | 17.5 | 19 | 12.5 | 15 | 0.8 | |
2.2 | 17.5 | 19.5 | 13 | 15 | 0.8 |
