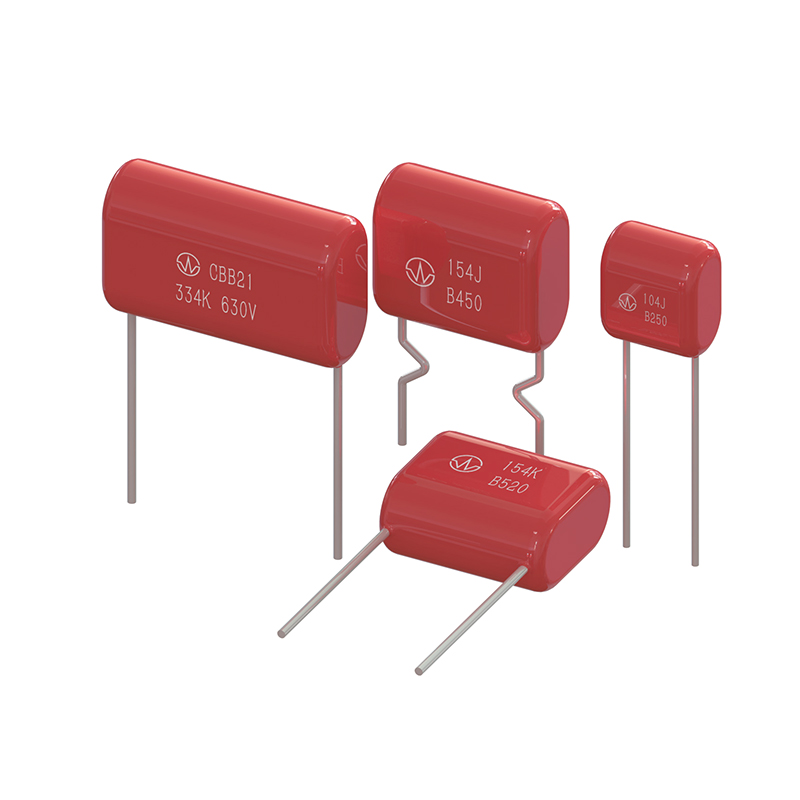

CBB21(22) series Metallized Polypropylene Film Capacitor CBB21(22) series Metallized Polypropylene Film Capacitor
  • CBB21(22) series Metallized Polypropylene Film Capacitor
  • CBB21(22) series Metallized Polypropylene Film Capacitor

CBB21(22) series Metallized Polypropylene Film Capacitor

Features：
Metallized polypropylene film
The low loss at high frequency
Small inherent temperature rise
Flame retardant epoxy resin powder coating (UL94/V-0)
Contact Us PDF Download

Share:

PREV：CBB62 series Metallized Polypropylene Film AC CapacitorNEXT：No next article
Typical Applications：
Widely used in high frequency, DC, AC, and pulse circuits
Suitable for S-correction circuits of the large screen monitor
Suitable for the situation where high frequency and high current pulse

Specifications

Reference Standard

GB/T 10190(IEC 60384-16)

Climatic Category

40/105/21

Rated Temperature

85℃

Operating Temperature Range

-40℃~105℃

Rated Voltage

100V,250V,400V,630V,1000V,1250V

Capacitance Range

0.0010μF~3.3μF

Capacitance Tolerance

±5%(J),±10%(K),±20%(M)

Voltage Proof

1.6UR(5s)

Dissipation Factor

≤10×10-4(1kHz,20℃)

Insulation Resistance

R≥25000MQ,CN≤0.33μF

                                              (20℃,100V,1min)

RCN≥7500s,CN>0.33μF

Maximum Pulse Rise Time (dV/ct):

if the working voltage (U)is lower than the rated voltage (UR), the capacitor can be worked at a higher dVlit.In this case, the maximum allowed dVet is obtained by multiplying the night value with UR/U



UR(V)

dV/dt(V/μs)

P=7.5

P=10.0

P=15.0

P=22.5

100/250

660

560

310

130

400

900

780

600

300

630

1500

1200

900

400

1000/1250

2500

2200

一

一

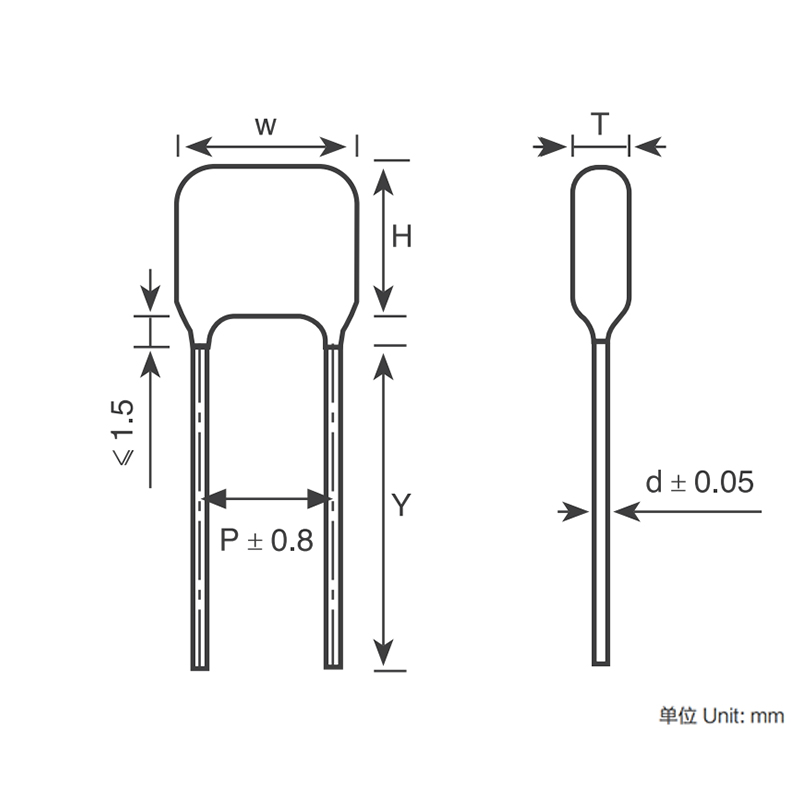

Dimensions(mm)

CN
(uF)		 W H T P d
100Vdc(63Vac)/250Vdc(160Vac) 0.01 9.8 7.7 4 7.5 0.6
0.012 9.8 7.9 4.3 7.5 0.6
0.015 9.8 7.8 4.2 7.5 0.6
0.018 9.8 8.1 4.4 7.5 0.6
0.02 9.8 8.2 4.6 7.5 0.6
0.022 9.8 8.4 4.8 7.5 0.6
0.027 9.8 7.6 4 7.5 0.6
0.033 9.8 7.9 4.2 7.5 0.6
0.039 9.8 8.1 4.5 7.5 0.6
0.047 9.8 8.5 4.8 7.5 0.6
0.056 12.5 8.1 4.5 10 0.6
0.068 12.5 8.5 4.8 10 0.6
0.082 12.5 8.8 5.2 10 0.6
0.1 12.5 8.3 4.7 10 0.6
0.12 12.5 8.6 5 10 0.6
0.15 12.5 8.9 5.2 10 0.6
0.18 12.5 9.3 5.6 10 0.6
0.22 12.5 9.8 6.1 10 0.6
0.27 17.5 10.5 5.3 15 0.6
0.33 17.5 11 5.8 15 0.6
0.39 17.5 11.4 6.2 15 0.6
0.47 17.5 12 6.6 15 0.6
0.56 17.5 12.4 7.2 15 0.6
0.68 17.5 13.5 7.8 15 0.8
0.82 17.5 14.2 8.5 15 0.8
1 17.5 15 9.3 15 0.8
1.2 25.2 14.8 7.5 22.5 0.8
1.5 25.2 15.6 8.3 22.5 0.8
1.8 25.2 16.4 9.1 22.5 0.8
2 25.2 16.9 10.1 22.5 0.8
2.2 25.2 18.3 9.9 22.5 0.8
2.7 25.2 19.3 10.9 22.5 0.8
3 25.2 19.9 11.6 22.5 0.8
3.3 25.2 20.5 12.1 22.5 0.8
400Vdc(200Vac) 0.01 9.8 7.8 4.1 7.5 0.6
0.012 9.8 8.8 4.4 7.5 0.6
0.015 9.8 8.4 4.7 7.5 0.6
0.018 9.8 8.7 5 7.5 0.6
0.02 9.8 8.9 5.3 7.5 0.6
0.022 9.8 9.1 5.5 7.5 0.6
0.033 9.8 9.5 6 7.5 0.6
0.027 12.5 8.1 4.5 10 0.6
0.033 12.5 8.5 4.8 10 0.6
0.039 12.5 8.7 5 10 0.6
0.047 12.5 9 5.5 10 0.6
0.056 12.5 9.4 5.8 10 0.6
0.068 12.5 9.1 5.4 10 0.6
0.082 12.5 9.5 5.9 10 0.6
0.1 12.5 10 6.4 10 0.6
0.1 17.5 8.3 4.5 15 0.6
0.15 17.5 11.2 6 15 0.6
0.18 17.5 11.6 6.4 15 0.6
0.22 17.5 12.2 7 15 0.6
0.27 17.5 12.9 7.6 15 0.8
0.33 17.5 14.1 8.4 15 0.8
0.39 17.5 14.7 9 15 0.8
0.47 17.5 15.5 9.8 15 0.8
0.68 17.5 17.5 10.5 15 0.8
0.56 25.2 15.2 7.9 22.5 0.8
0.68 25.2 15.9 9.1 22.5 0.8
0.82 25.2 16.7 10 22.5 0.8
1 25.2 17.7 10.9 22.5 0.8
630Vdc(220Vac) 0.001 4.3 7.9 10 7.5 0.6
0.0012 4.5 8.2 10 7.5 0.6
0.0015 4.4 8.1 10 7.5 0.6
0.0018 4.2 7.8 10 7.5 0.6
0.002 4.3 8 10 7.5 0.6
0.0022 4.5 8.1 10 7.5 0.6
0.0027 4.5 8.1 10 7.5 0.6
0.0033 4.8 8.5 10 7.5 0.6
0.0039 4.5 8.2 10 7.5 0.6
0.0047 4.9 8.5 10 7.5 0.6
0.0056 5.2 8.8 10 7.5 0.6
0.0068 4.4 8 12.5 10 0.6
0.0082 4.7 8.3 12.5 10 0.6
0.01 4.1 7.8 12.5 10 0.6
0.012 4.4 8 12.5 10 0.6
0.015 4.7 8.3 12.5 10 0.6
0.018 4.9 8.6 12.5 10 0.6
0.02 5.1 8.8 12.5 10 0.6
0.022 5.3 8.9 12.5 10 0.6
0.027 5.7 9.4 12.5 10 0.6
0.033 6.2 9.9 12.5 10 0.6
0.039 8.7 10.3 12.5 10 0.6
0.047 5.6 10.8 17.5 15 0.6
0.056 6 11.2 17.5 15 0.6
0.068 6.5 11.7 17.5 15 0.6
0.082 7 12.2 17.5 15 0.6
0.1 7.6 12.8 17.5 15 0.8
0.12 8.2 13.9 17.5 15 0.8
0.15 9 14.7 17.5 15 0.8
0.18 9.8 15.5 17.5 15 0.8
0.2 10.3 16 17.5 15 0.8
0.22 10.3 16 17.5 15 0.8
0.33 10.5 16 17.5 15 0.8
0.47 10.5 16.2 17.5 15 0.8
0.68 10.5 16.5 17.5 15 0.8
0.82 11 16.8 17.5 15 0.8
0.22 7.9 15.2 25.2 22.5 0.8
0.27 9.2 15.9 25.2 22.5 0.8
0.33 10 16.8 25.2 22.5 0.8
0.39 10.8 17.6 25.2 22.5 0.8
0.47 11.8 18.6 25.2 22.5 0.8
0.56 12.8 19.6 25.2 22.5 0.8
1000/1250Vdc(400Vac) 0.001 4.3 7.9 10 7.5 0.6
0.0012 4.5 8.2 10 7.5 0.6
0.0015 4.4 8.1 10 7.5 0.6
0.0018 4.2 7.8 10 7.5 0.6
0.0022 4.5 8.1 10 7.5 0.6
0.0027 4.2 7.8 10 7.5 0.6
0.0033 4.5 8.2 10 7.5 0.6
0.0039 4.8 8.4 10 7.5 0.6
0.0047 4.7 8.3 10 7.5 0.6
0.0056 5 8.7 10 7.5 0.6
0.0068 5.2 8.9 12.5 10 0.6
0.0082 5.6 9.3 12.5 10 0.6
0.01 6.3 9.9 12.5 10 0.6
