WPP series Metallized Polypropylene Film Pulse Capacitor

Features:

Dry encapsulated with cylindrical plastic case and epoxy resin, insulated wires out

High energy density, high operating current, long charge-discharge lifetime, stable and reliable

PREV：WPH seires High Voltage Pulse Capacitor NEXT：No next article

Typical Applications:

Mainly used in defibrillators, laser, electronic flash, X-ray machines, and other energy storage pulse applications

Specifications

Reference Standards	JB/T 8168
Rated Voltage	1200V~6000V
Normal capacitance	5μF～500μF
Capacitance Tolerance	±5%（J），±10%（K）
Dielectric dissipation factor	2×10^-4
Operating temperature range	-25 ℃～55 ℃
Storage temperature range	-40 ℃～85 ℃
Non-recurrent surge voltages	1.1UN（50 ms，1000 times）
Insulation resistance	≥10000s（500 V，1 min，20℃）
Voltage Test Between Terminals	1.1U_N10S
Test voltage between terminals and case	1.5U_N 60S
Expected lifetime	10000 times（or designed on request）
Failure rate	100 fit

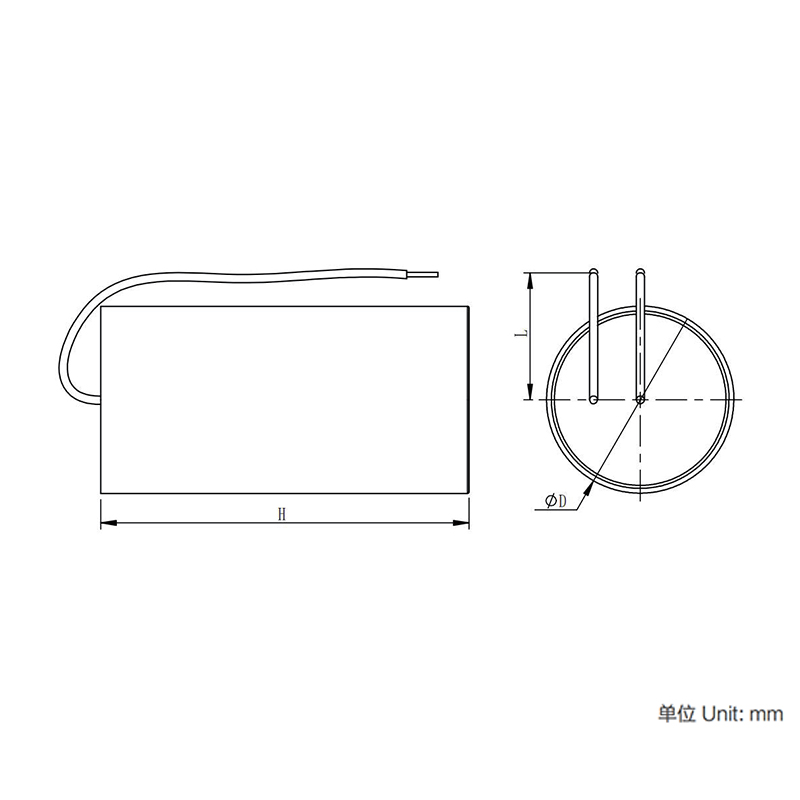

Dimensions(mm)

UN (V)	CN (μF)	JN (J)	Î (A)	Îs (A)	D±2 (mm)	H±2 (mm)	G (kg)
1800	115	186	135	270	50	118	0.33
	134	217	210	420	60	93	0.37
	182	295	215	430	60	118	0.44
2000	93	186	120	240	50	118	0.33
	107	214	190	380	60	93	0.37
	147	294	195	390	60	118	0.44
2200	76	184	105	210	50	118	0.33
	88	213	170	340	60	93	0.37
	120	290	175	350	60	118	0.44
	195	472	100	200	65	118	0.44
2400	64	184	100	200	50	118	0.33
	74	213	155	310	60	93	0.37
	100	288	155	310	60	118	0.44
2600	54	183	90	180	50	118	0.33
	62	210	140	280	60	93	0.37
	85	287	145	290	60	118	0.44
