WPH seires High Voltage Pulse Capacitor
Features:
Insulated housing, dry type
Metallized electrode and high-temperature polypropylene film dielectric
Self-healing, long service life, high reliability and able to withstand the impact of instantaneous high current
Share:
Typical Applications:
Applicable for impulse voltage generator and other occasions
Specifications
| Reference Standards | JB/T 8168 |
| Rated Voltage | 50kVdc~100kVdc |
| Normal capacitance | 0.1μF～3μF |
| Capacitance Tolerance | ±5%（J） |
| Dielectric dissipation factor | ≤2×10-3（100Hz，25℃±5℃） |
| Operating temperature range | -25 ℃～50 ℃ |
| Storage temperature range | -25 ℃～50 ℃ |
| Maximum Operating Altitude | 2000m |
| Insulation resistance | ≥5000s（100 V，1 min，20 ℃） |
| Voltage Test Between Terminals | 1.2~1.5UN （10s，25±5℃） |
| Expected lifetime | 1000~100000 times |
| Failure rate | 100 fit |

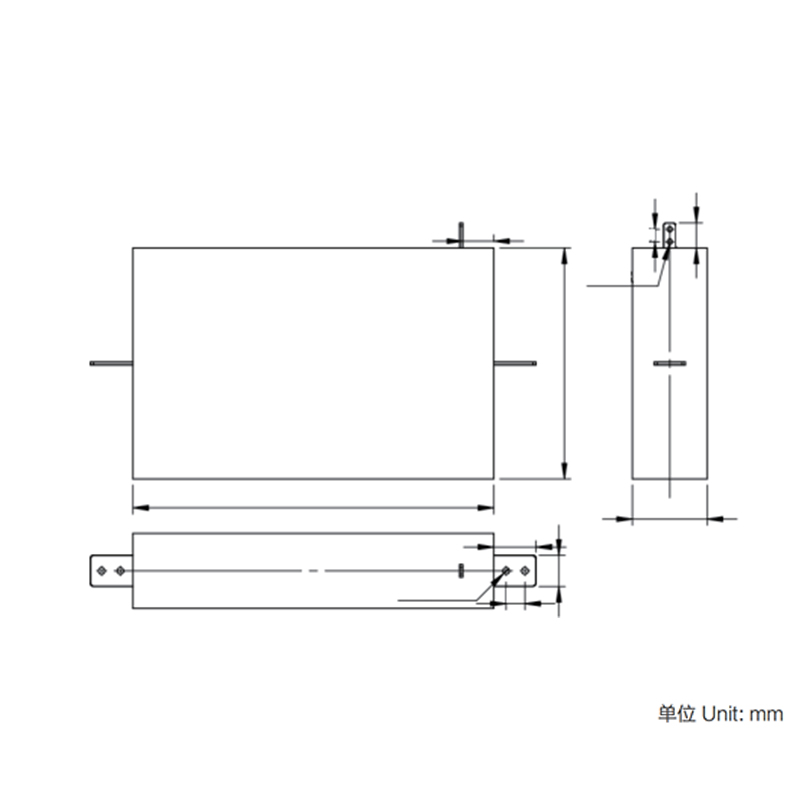

Dimensions(mm)
| UN (kVdc) |
C (μF) |
W (mm) |
T (mm) |
H (mm) |
| 50 | 1 | 500 | 110 | 270 |
| 50 | 2 | 550 | 175 | 270 |
| 100 | 0.5 | 580 | 70 | 370 |
| 100 | 0.5 | 700 | 70 | 265 |
| 100 | 0.875 | 580 | 125 | 330 |
| 100 | 1 | 580 | 120 | 370 |
| 100 | 1 | 700 | 115 | 265 |
| 100 | 1.5 | 700 | 140 | 330 |
| 100 | 2 | 580 | 140 | 390 |
