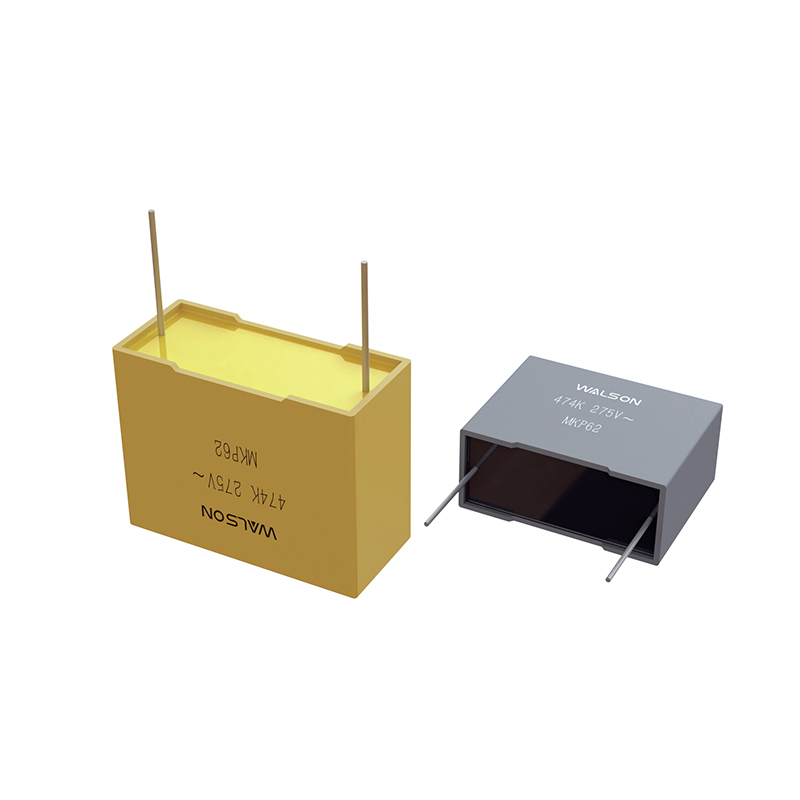

MKP62 series Metallized Polypropylene Film AC Capacitor (Box-Type)

Features:
Metallized polypropylene
Good self-healing properties, withstanding overvoltage stressing
Long stability of capacitance
Good properties in a damp environment
Outstanding active and passive flame-resistant abilities
Contact Us PDF Download

Share:

PREV：MMKP82 series Double-Sided Metallized Polypropylene Film Capacitor (Box-Type)NEXT：MKP21 series Metallized Polypropylene Film Capacitor (Box-Type)
Typical Applications:
This is specifically designed for applications in serial with the main, i.e.: capacitive divider, for example, energy meter, LED driver etc

Specifications

Reference Standard

GB/T 14579(IEC 60384-17)

Climatic Category

40/105/56

Rated Temperature

85℃

Operating Temperature Range

-40℃~105℃

Rated Voltage

230Vac,50/60Hz

250Vac,50/60Hz

300/275Vac,50/60Hz

Maximum continuous DC voltage

400Vdc

560Vdc

630Vdc

Capacitance Range

0.033μF~4.7μF

0.010μF~4.0μF

0.010μF~2.2μF

Capacitance Tolerance

±5%(J),±10%(K),±20%(M)

Voltage Proof

640Vdc(2S)

900Vdc(2S)

1500Vdc(2S)

Dissipation Factor

≤10×10-⁴ (1kHz,20℃)

≤20×10-⁴ (1 0kHz,20℃)

Insulation Resistance

R≥15000MQ,CN≤0.33μF

                                                  (20℃,100V,1min)

RCN≥5000s,CN>0.33μF

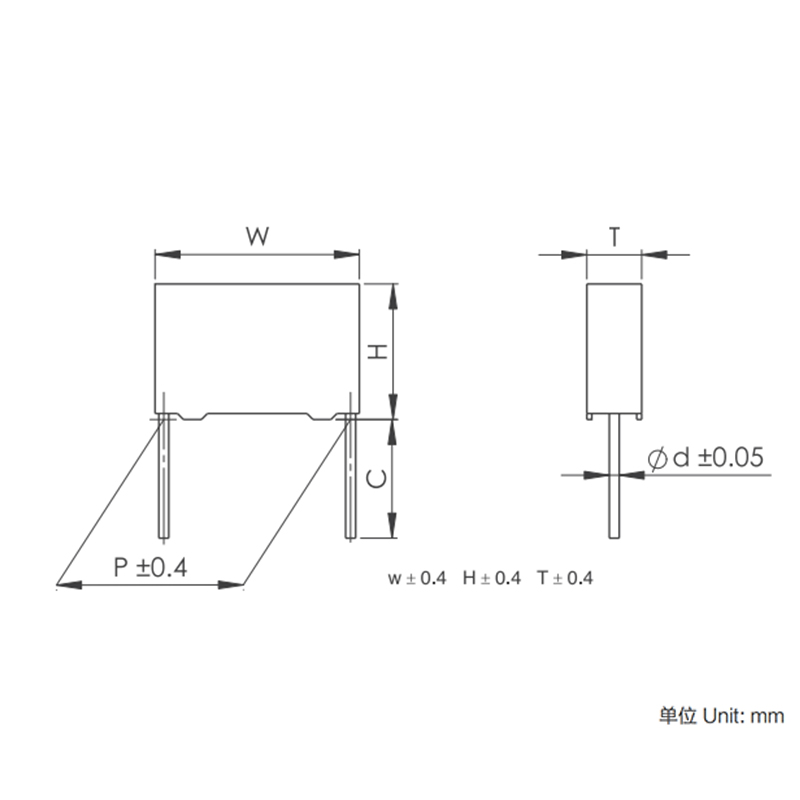

Dimensions(mm)

CN
(uF)		 W H T P d
230Vac 0.033 10.5 11 5 7.5 0.6
0.047 10.5 12 6 7.5 0.6
0.033 13 9 4 10 0.6
0.047 13 11 5 10 0.6
0.068 13 12 6 10 0.6
0.1 13 12 6 10 0.6
0.1 17.5 11 5 15 0.6
0.15 17.5 12 6 15 0.6
0.22 17.5 13.5 7.5 15 0.6
0.33 17.5 14.5 8.5 15 0.6
0.47 17.5 16 10 15 0.8
0.33 26.5 15 6 22.5 0.8
0.47 26.5 16 7 22.5 0.8
0.56 26.5 17 8.5 22.5 0.8
0.68 26.5 17 8.5 22.5 0.8
0.82 26.5 18.5 10,0 22.5 0.8
1 26.5 20 11 22.5 0.8
1.2 26.5 20 11 22.5 0.8
1.5 26.5 22 12 22.5 0.8
0.47 32 18 9 27.5 0.8
0.56 32 18 9 27.5 0.8
0.68 32 18 9 27.5 0.8
1 32 18 9 27.5 0.8
1.2 32 20 11 27.5 0.8
1.5 32 20 11 27.5 0.8
2 32 22 13 27.5 0.8
2.2 32 24.5 15 27.5 0.8
3 32 33 18 27.5 0.8
3.3 32 33 18 27.5 0.8
4 32 33 18 27.5 0.8
4.7 32 37 22 27.5 0.8
250Vac 0.01 13 9 4 10 0.6
0.015 13 9 4 10 0.6
0.022 13 9 4 10 0.6
0.033 13 11 5,0 10 0.6
0.047 13 11 5 10 0.6
0.068 13 12 6 10 0.6
0.068 17.5 11 5 15 0.6
0.1 17.5 12 6,0 15 0.6
0.15 17.5 13.5 7.5 15 0.6
0.22 17.5 14.5 8.5 15 0.6
0.33 17.5 16 10 15 0.8
0.22 26.5 15 6 22.5 0.8
0.33 26.5 16 7 22.5 0.8
0.39 26.5 17 8.5 22.5 0.8
0.47 26.5 17 8.5 22.5 0.8
0.56 26.5 18.5 10,0 22.5 0.8
0.68 26.5 18.5 10 22.5 0.8
0.82 26.5 20 11 22.5 0.8
1 26.5 22 12 22.5 0.8
1.2 26.5 24.5 15.5 22.5 0.8
1.5 26.5 24.5 15.5 22.5 0.8
0.47 32 18 9 27.5 0.8
0.56 32 18 9 27.5 0.8
0.68 32 18 9 27.5 0.8
1 32 20 11 27.5 0.8
1.2 32 22 13 27.5 0.8
1.5 32 25 13 27.5 0.8
2 32 33 18 27.5 0.8
2.2 32 33 18 27.5 0.8
3 32 33 18 27.5 0.8
3.3 32 33,0 18 27.5 0.8
4 32 37 22 27.5 0.8
300Vac/275Vac 0.01 13 9 4 10 0.6
0.015 13 11 5 10 0.6
0.022 13 12 6 10 0.6
0.033 13 12 6 10 0.6
0.01 17.5 11 5 15 0.6
0.015 17.5 11 5 15 0.6
0.022 17.5 11 5 15 0.6
0.033 17.5 11,0 5 15 0.6
0.047 17.5 12 6 15 0.6
0.068 17.5 13.5 7.5 15 0.6
0.1 17.5 14.5 8.5 15 0.6
0.15 17.5 16 10 15 0.8
0.22 17.5 19 11 15 0.8
0.068 26.5 15 6,0 22.5 0.8
0.1 26.5 15 6 22.5 0.8
0.15 26.5 16 7 22.5 0.8
0.22 26.5 17 8.5 22.5 0.8
0.33 26.5 18.5 10 22.5 0.8
0.39 26.5 20 11 22.5 0.8
0.47 26.5 22 12 22.5 0.8
0.22 32 18 9 27.5 0.8
0.33 32 18 9 27.5 0.8
0.47 32 20 11 27.5 0.8
0.56 32 22 13 27.5 0.8
0.68 32 22,0 13 27.5 0.8
1 32 28 14 27.5 0.8
1.5 32 33 18 27.5 0.8
2.2 32 37 22 27.5 0.8
